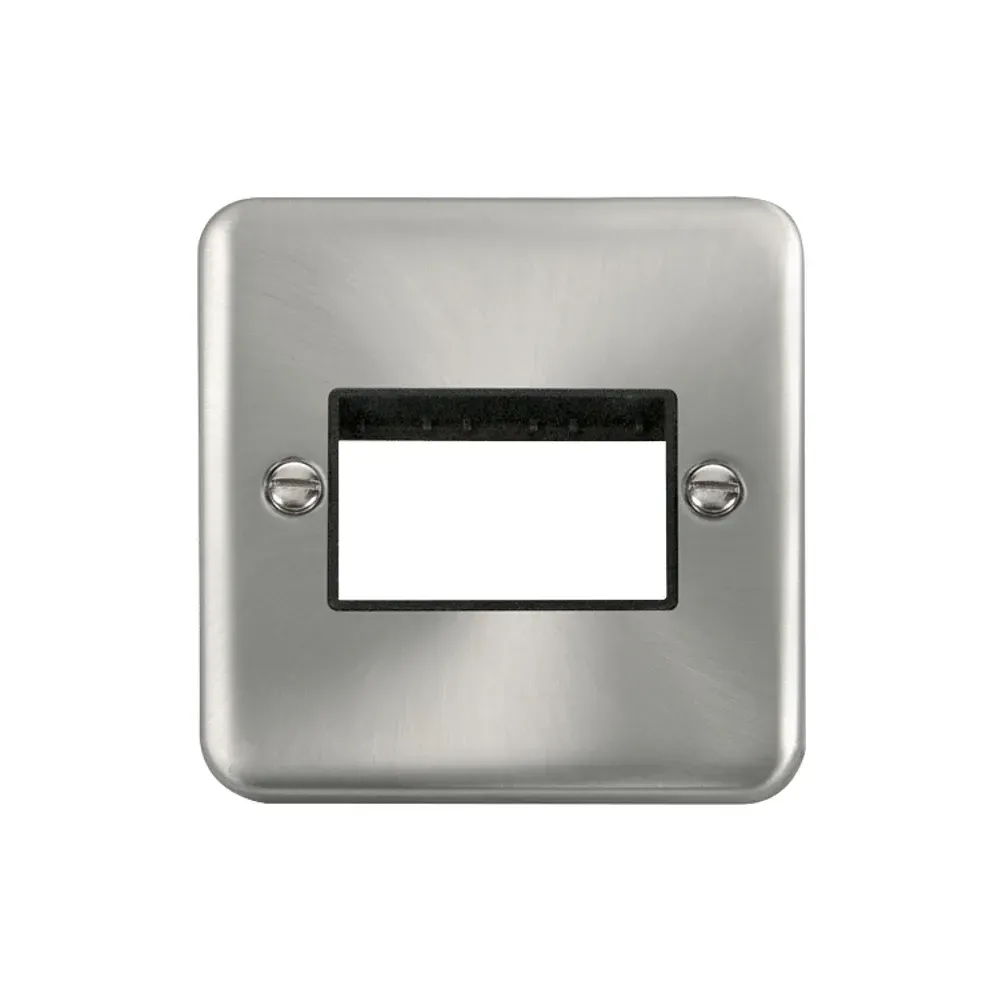

Click DPSC403BK Satin Chrome 1 Gang MiniGrid Plate 3 Apertures BS5733
Professional Click MiniGrid unfurnished plate in satin chrome with black insert, designed for qualified electricians and contractors. This 1 gang plate accommodates 3 single width modules or 1 double width module with 3 apertures for flexible installation configurations. Constructed with stainless steel front plate and brass terminals for reliable performance in domestic and commercial applications. Features captive screw terminals with earth strap connection, operational temperature range -5°C to +40°C. Complies with BS5733 standards with IP20 ingress protection rating. Includes 20-year warranty and gasket seal for enhanced installation integrity. Compatible with complete MiniGrid modular range for customizable switching and socket solutions.
Online:
Product Features
| Gang Configuration | 1 Gang |
|---|---|
| Module Capacity | 3 single width modules OR 1 double width module |
| Aperture Count | 3 apertures |
| Finish | Satin Chrome with Black Insert |
| Plate Material | Stainless Steel |
| Terminal Type | Brass captive screw terminals |
| Standards Compliance | BS5733 |
| IP Rating | IP20 |
| Dimensions | 88mm (W) x 88mm (H) x 8mm (D) |
| Fixing Centres | 60.3mm horizontal |
| Operational Temperature | -5°C to +40°C |
| Warranty Period | 20 years |
| System Compatibility | MiniGrid Range compatible |
| Earth Connection | Mild steel earth strap included |
Applications & Uses
Modular Switch Systems
Ideal for custom switching configurations using MiniGrid modules. Create bespoke control solutions with mix of switches, sockets and data outlets.
Commercial Installations
Professional specification with stainless steel construction suitable for offices, retail and commercial environments requiring durable finishes.
Installation Guidelines
Terminal Connection
Use brass screw terminals with appropriate conductor preparation. Earth cables must be sleeved and connected via earth strap provided.
Mounting Requirements
88mm square plate with 60.3mm fixing centres. Gasket increases overall dimensions to 91mm x 91mm x 9mm depth.
Module Installation
Install compatible MiniGrid modules before final plate mounting. Ensure adequate backbox depth for chosen module combination and cable requirements.
Standards & Safety
BS5733 Compliance
Manufactured to BS5733 standards for modular wiring accessories. Includes UK Design Registration 3015621 and UKCA marking compliance.
IP20 Protection
Ingress protection rating IP20 suitable for dry indoor locations. Not suitable for wet areas, outdoor use or environments requiring higher IP ratings.
Frequently Asked Questions
-
What modules are compatible with the DPSC403BK plate?
Compatible with all Click MiniGrid range modules. Accommodates 3 single width modules or 1 double width module across the 3 apertures.
-
What minimum backbox depth is required for installation?
Minimum backbox depth depends on the modules fitted. Standard modules typically require 25mm minimum depth plus module requirements.
-
Can this plate be used in wet areas?
No, IP20 rating is suitable for dry indoor locations only. Not suitable for bathrooms, kitchens splash zones or outdoor use.
-
What cable preparation is needed for the screw terminals?
Strip conductors to appropriate length for brass screw terminals. Earth cables must be sleeved. Mains isolation required before installation.
-
Is the plate suitable for commercial installations?
Yes, BS5733 compliance and stainless steel construction make it suitable for both domestic and commercial applications within temperature limits.
