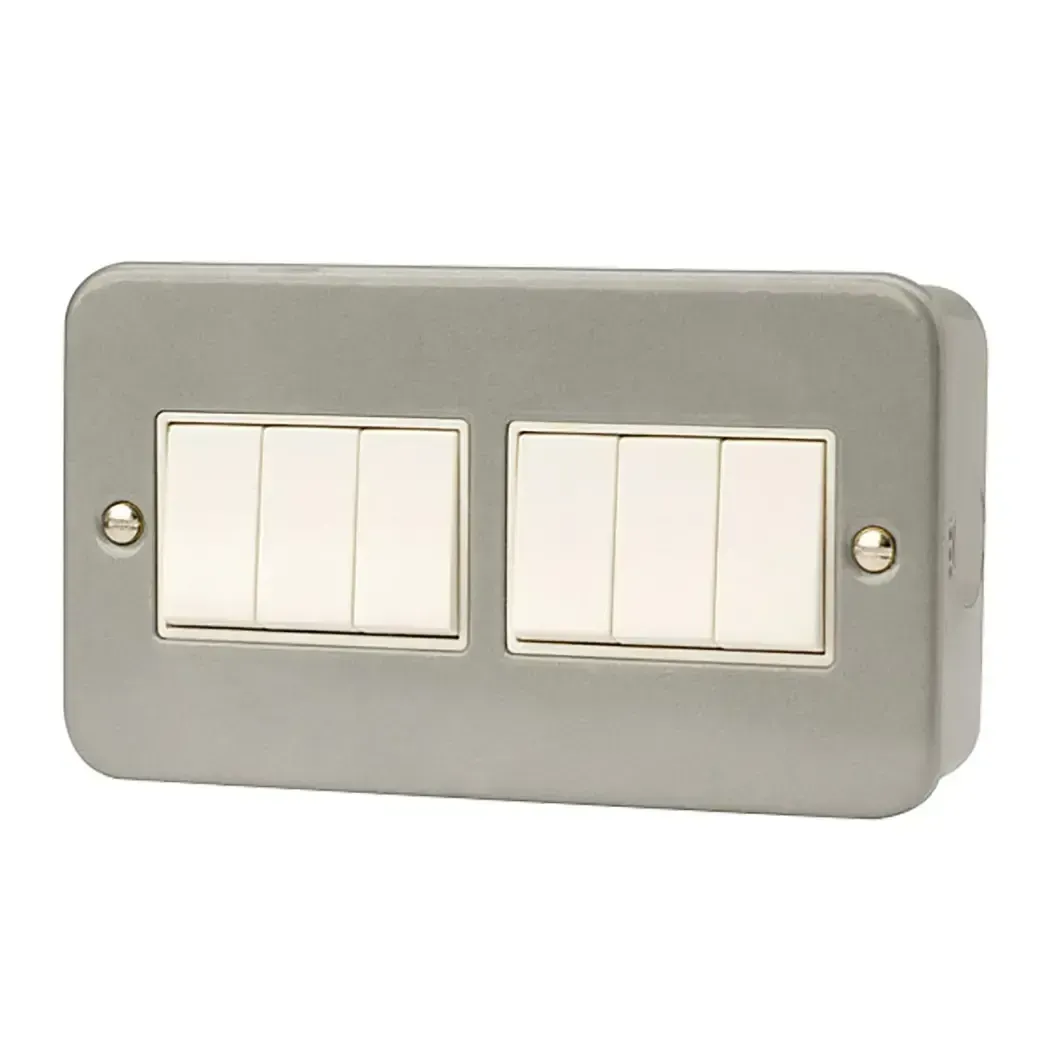

Click Metal Clad Switch 6 Gang 2W 10A CL105
6 Gang 2 Way 10A Metal Clad Switch in Grey finish. Suitable for inductive loads with 10 Amp current rating. Dimensions: 140mm x 80mm x 42mm.
Stock Code
Available
£14.72
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Back Box Depth
40mm
-
Back Box Knockouts
7 x 20mm (3 on top 2 on bottom 1 on each side)
-
Dimensions
140mm W x 80mm H x 42mm D
-
Earth Terminal Provided
Yes
-
External Width
80mm
-
Finish
Metal Clad Grey
-
Insert Colour
White
-
Load Rating
10AX
-
Materials
Front Plate & Pattress Box: Electrophoretically Coated Steel, Insert & Switch: Urea, Rear Housing: Urea, Terminals: Brass, Terminal Screws: Steel & Yellow Passivated, Contacts: Silver on-lay Copper / Brass, Internal Busbars: Formed Pressed Brass, Earth Strap: Mild Steel
-
Maximum Voltage
250V~ 50Hz
-
No. Of Gangs
6
-
Operational Temperature
-5°C to +40°C
-
Plate Fixing Centres
120.6mm
-
Product Range
CL105
-
Standards
BS EN 60669-1:1999 +A1:2002 +A2:2008
-
Suitable for Inductive Loads
Yes
-
Supplied Termination Type
Screw
-
Terminal Capacity
4 x 1.5mm2 or 2 x 2.5mm2
-
Terminal Size
3.5mm
-
Terminal Torque
0.5Nm
-
Two Way
Yes
-
Warranty
10 Years
