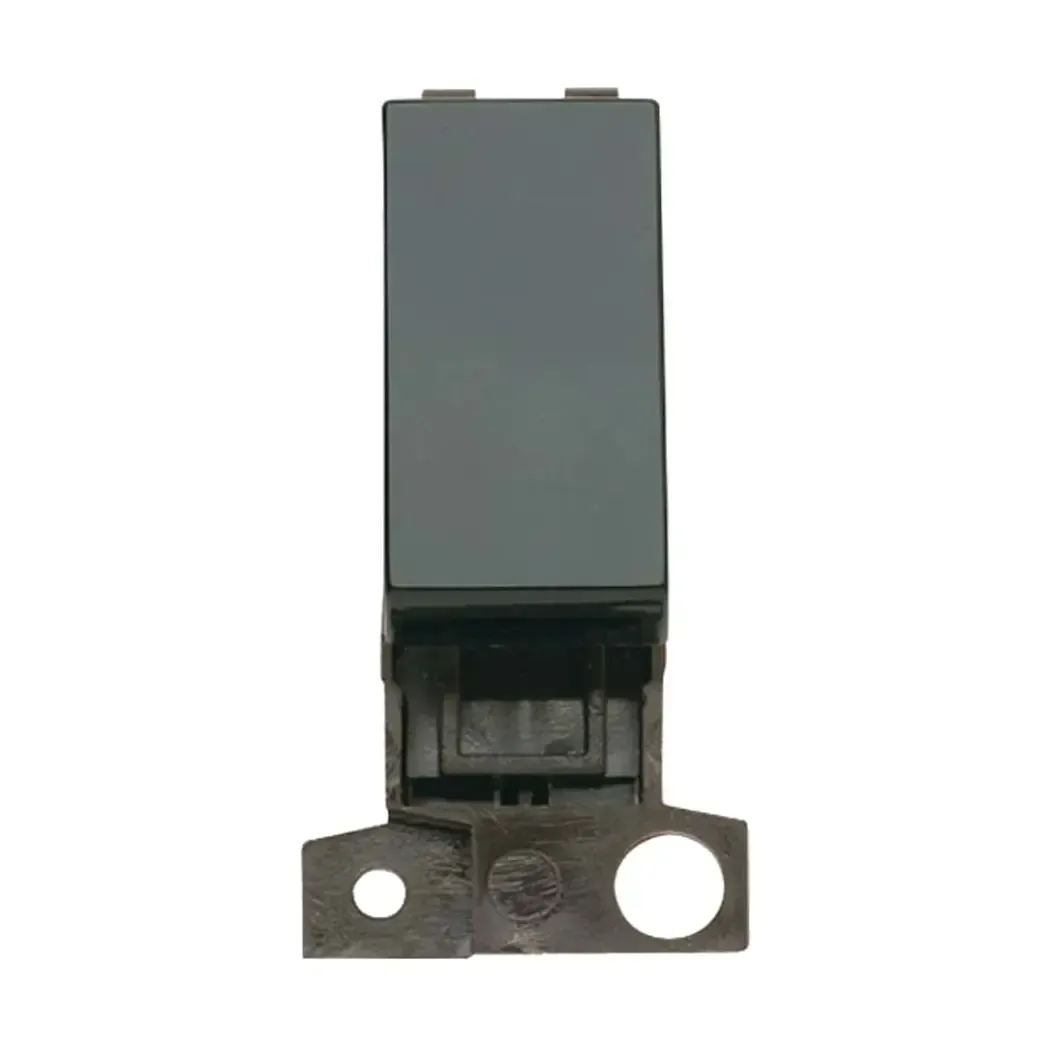

MD002BK - Click Minigrid Black 1 Gang 10A 2 Way Switch Module MD002BK

Photo is representative

Click Minigrid Black 1 Gang 10A 2 Way Switch Module MD002BK

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MD002BK
GTIN
Stock status: In stock

priced individually

Net price: £1.76

Gross price

£2.11

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

The Click Minigrid Black 1 Gang 10A 2 Way Switch Module MD002BK is a versatile and durable switch module suitable for various applications. Easily interchangeable, this module is compatible with multiple ranges including CLICK POLAR & MODE, DEFINITY DEFINE & DECO, and Metal Clad. It has a current rating of 10A, maximum voltage of 250V, and is suitable for inductive loads. The module features screw terminals with a terminal capacity of 4 x 1.5mm2 or 2 x 2.5mm2 and comes with a 10-year warranty. Dimensions: 25mm (W) x 53mm (H) x 20mm (D). Finish: Black.

Specifications

Torque

0.5Nm

Warranty

10 Years

Standards

BS EN 60669-1:1999 +A1:2002 +A2:2008

Dimensions

25mm (W) x 53mm (H) x 20mm (D)

Load Rating

10AX (Suitable For Inductive Loads)

Terminal Size

3.5mm

Back Box Depth

Dependent On Plate Used

Maximum Voltage

250V

Termination Type

Screw Terminal

Terminal Capacity

4 x 1.5mm2 or 2 x 2.5mm2

Operational Temperature

-5 C to +40 C
