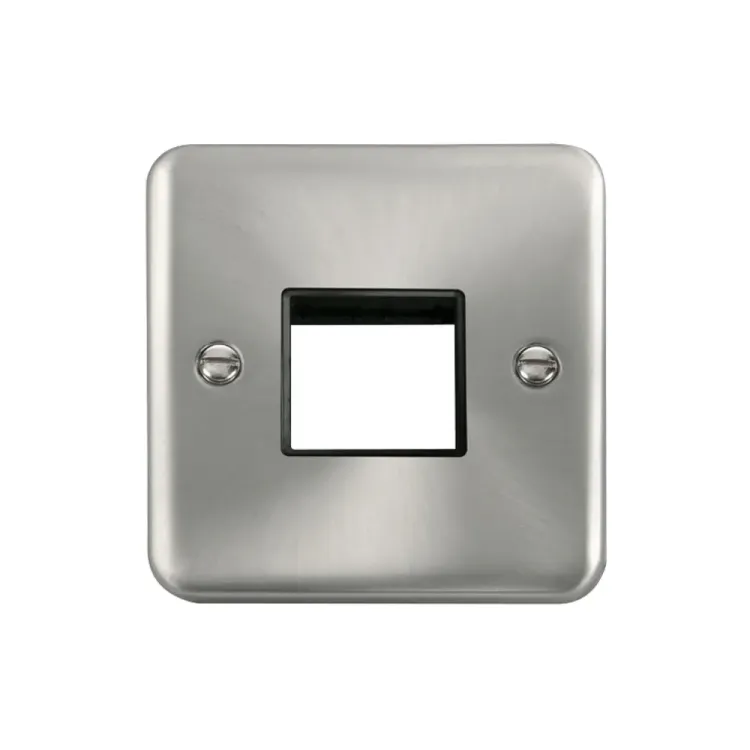

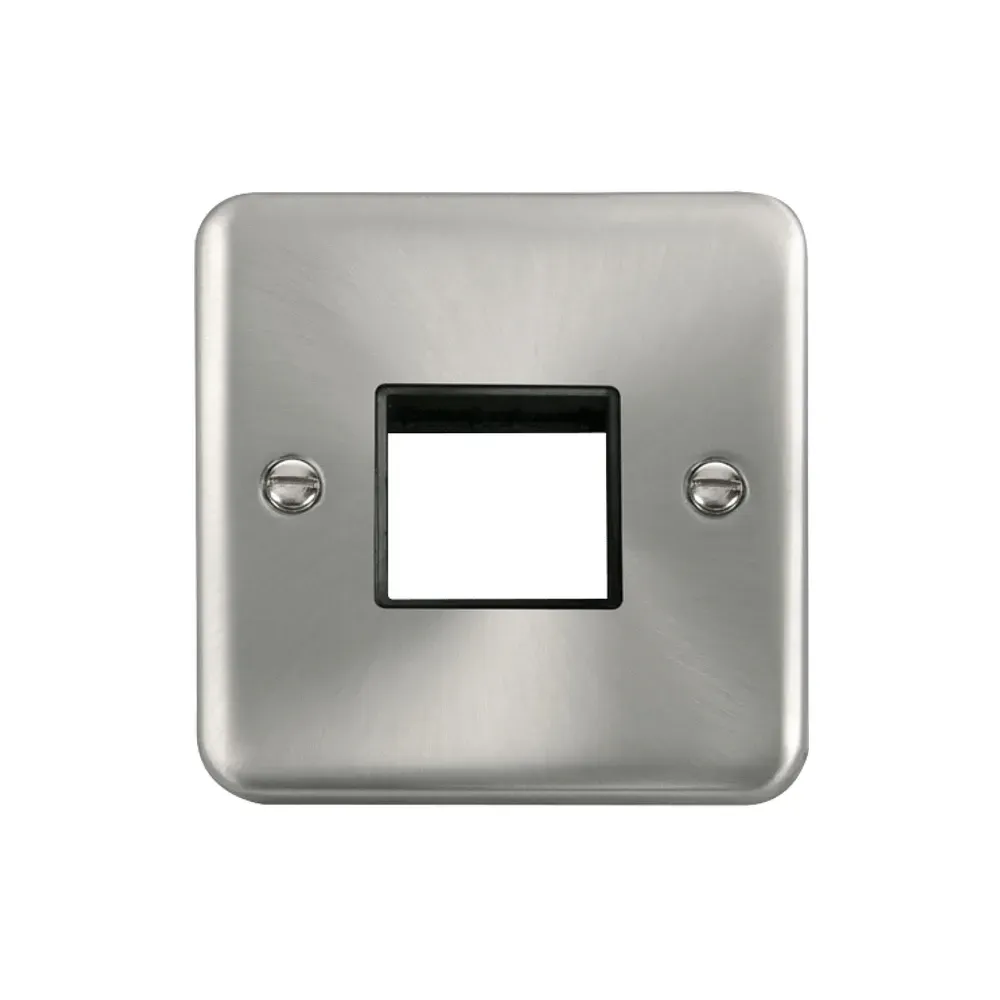

Click MiniGrid Satin Chrome 1 Gang 2 Aperture Unfurnished Plate BS5733
Click MiniGrid DPSC402BK unfurnished plate provides flexible modular switching solutions for professional installations. The 1 gang satin chrome plate accepts 2 single width modules or 1 double width module, enabling custom configurations for lighting circuits, data points, and media connections. Featuring brass captive terminals and steel earth strap for reliable connections in 25mm backboxes. The rounded profile design with black insert offers premium aesthetics while maintaining BS5733 compliance and IP20 protection. Compatible with full MiniGrid module range including rocker switches, sockets, and media plates. Professional-grade construction includes stainless steel front plate and 20-year warranty. Ideal for commercial fit-outs, office installations, and residential projects requiring modular flexibility.
Online:
Product Features
| Gang Configuration | 1 Gang |
|---|---|
| Module Capacity | 2 x Single Width OR 1 x Double Width |
| Aperture Count | 2 Apertures |
| Finish | Satin Chrome with Black Insert |
| Plate Dimensions | 88mm x 88mm x 8mm |
| Fixing Centres | 60.3mm Horizontal |
| Terminal Type | Brass Screw Terminals |
| Earth Provision | Mild Steel Earth Strap |
| Standards Compliance | BS5733 |
| IP Rating | IP20 |
| Material | Stainless Steel Front Plate |
| Modular Compatibility | MiniGrid Range Modules |
| Operating Temperature | -5°C to +40°C |
| Warranty | 20 Years |
Applications & Uses
Commercial Installations
Ideal for office fit-outs requiring custom switching arrangements, media connections, and data points in single gang configurations.
Residential Projects
Perfect for modern homes needing flexible switching solutions, USB charging points, and coordinated aesthetic finishes.
Hotel & Hospitality
Enables custom room control panels combining lighting switches, USB outlets, and media connections in premium satin chrome finish.
Installation Guidelines
Mounting Requirements
Install in 25mm minimum depth backbox with 60.3mm horizontal fixing centres. Ensure adequate space for chosen modules.
Terminal Connections
Use brass captive terminals for all connections. Earth strap provides reliable earthing to metal backbox installations.
Module Selection
Choose appropriate MiniGrid modules for circuit requirements. Verify module depth compatibility with available backbox space.
Standards & Safety
BS5733 Compliance
Manufactured to BS5733 standards ensuring professional quality construction and electrical safety for UK installations.
Operating Environment
IP20 protection suitable for dry indoor locations between -5°C to +40°C. Not suitable for outdoor or wet area applications.
Frequently Asked Questions
-
What modules are compatible with the DPSC402BK plate?
Compatible with all Click MiniGrid range modules including rocker switches, sockets, USB outlets, and media plates. Accepts 2 single width or 1 double width module.
-
What backbox depth is required for installation?
Minimum backbox depth depends on modules fitted. Standard 25mm backbox suitable for basic switches, deeper boxes required for USB or smart modules.
-
Can this plate be used in IP44 environments?
No, IP20 rated for dry indoor locations only. For splash-proof applications, use Click's dedicated IP44 rated unfurnished plates and modules.
-
Are the terminal screws captive to prevent loss?
Yes, brass terminals feature captive steel screws with yellow passivate coating for corrosion resistance and secure connections during installation.
-
What circuit types can be connected through this plate?
Suitable for lighting circuits, power circuits, and low voltage applications depending on modules fitted. Circuit compatibility determined by chosen modules' ratings.
