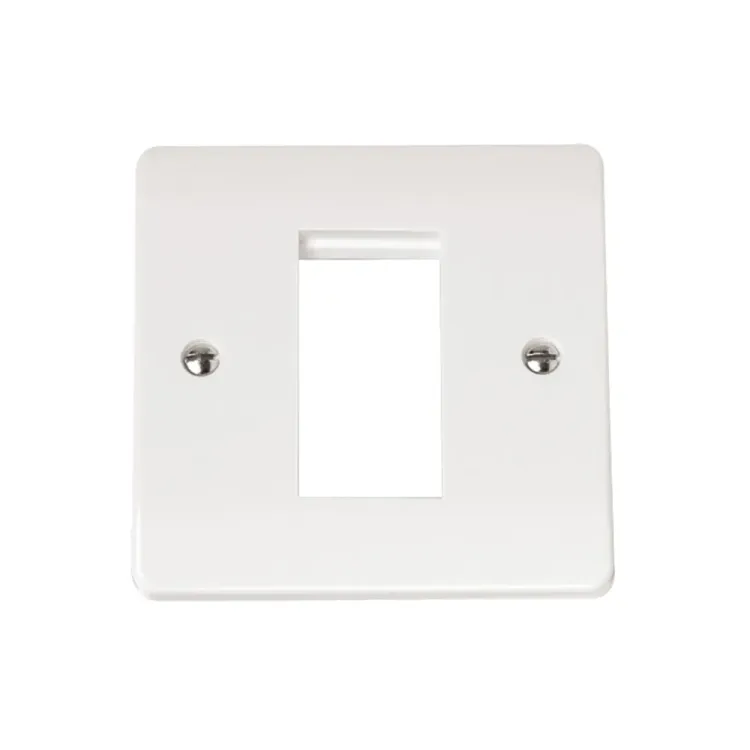

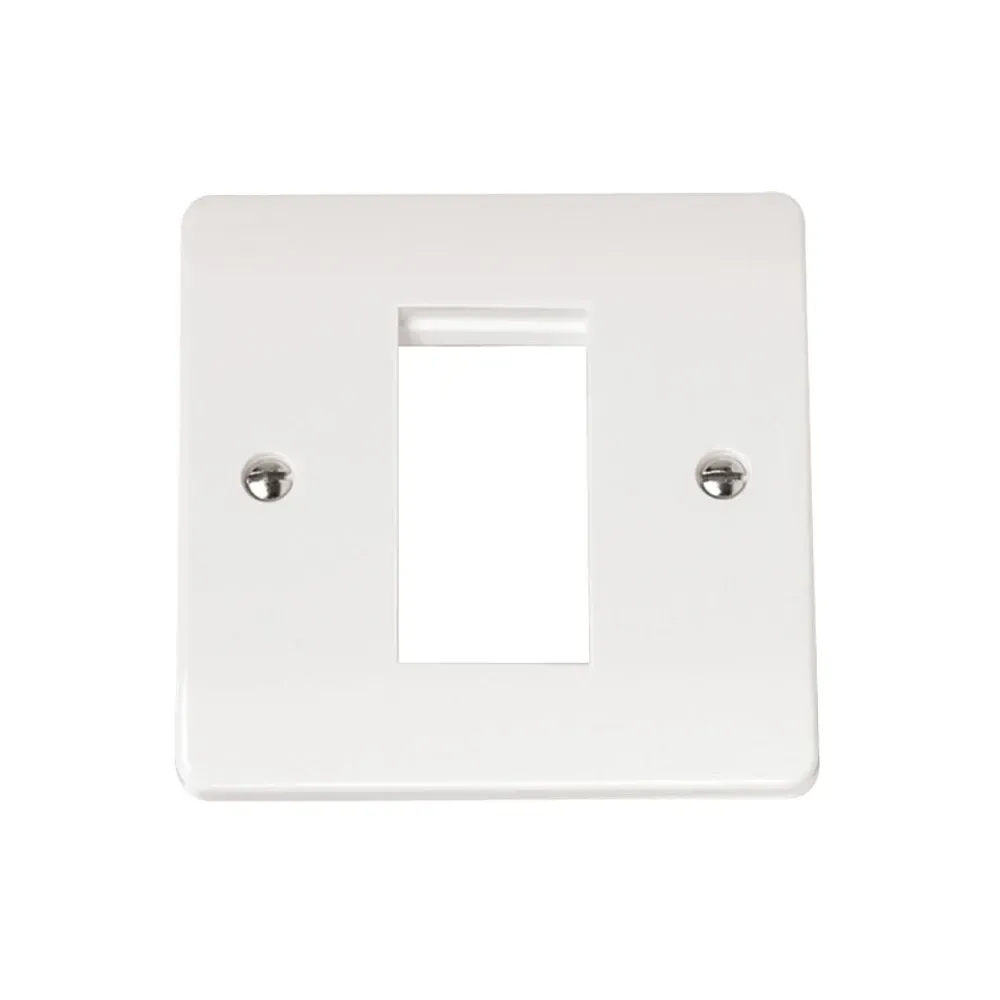

Click MODE CMA310 1-Gang New Media Unfurnished Plate - White
1-Gang New Media unfurnished plate accepting 25 x 50mm modular accessories for custom data, audio, and communication installations. Compatible with full New Media range including Cat5e/Cat6 modules, HDMI, USB, and audio connectors. Polar white urea construction with antimicrobial coating achieving 99.9% kill rate against bacteria and viruses. 86 x 86mm front plate with 60.3mm horizontal fixing centres fits standard UK backboxes. Backbox depth depends on modules fitted - typically 35mm minimum for standard modules. BS 5733 compliant with IP20 ingress protection and 25-year warranty. Rounded profile design matches Click MODE switch and socket ranges for consistent installations.
Online:
Product Features
| Configuration | 1-Gang Unfurnished Plate |
|---|---|
| Aperture Size | 25 x 50mm (New Media standard) |
| Module Compatibility | Full New Media Range |
| Plate Dimensions | 86 x 86 x 9.5mm |
| Fixing Centres | 60.3mm horizontal |
| Backbox Depth | Dependent on modules fitted |
| Material | Urea front plate |
| Finish | Polar white rounded profile |
| Standards Compliance | BS 5733 |
| IP Rating | IP20 |
| Operating Temperature | -5°C to +40°C |
| Antimicrobial Coating | 99.9% kill rate certified |
| Warranty | 25 years |
New Media System Overview
Modular Flexibility
Unfurnished plate accepts any 25 x 50mm New Media module. Configure for data, audio, video, or communications as required per installation.
Professional Installation
60.3mm horizontal fixing centres match standard UK electrical accessories. Rounded profile coordinates with Click MODE switch and socket ranges.
Future-Proof Design
Module system allows easy upgrades without rewiring. Replace modules as technology advances or requirements change.
Technical Specifications
Construction Quality
Urea front plate with antimicrobial treatment achieving 99.9% kill rate. 25-year warranty demonstrates long-term reliability for professional installations.
Environmental Performance
IP20 ingress protection with -5°C to +40°C operating range. BS 5733 compliance ensures safety and compatibility with UK wiring regulations.
System Integration
Coordinates with complete Click MODE range for consistent appearance. Polar white finish matches switches, sockets, and other accessories.
Frequently Asked Questions
-
What modules fit the CMA310 New Media plate?
Accepts all 25 x 50mm New Media modules including Cat5e/Cat6 data modules, HDMI, USB, audio connectors, and blank modules. Interchangeable system allows custom configurations.
-
What backbox depth is needed for this plate?
Depth depends on modules fitted. Standard data modules need 35mm minimum, deeper modules may require 47mm. Check individual module specifications for exact requirements.
-
Can I mix different module types in one plate?
This is a 1-gang plate with single 25 x 50mm aperture for one module only. Use multi-gang New Media plates for multiple modules in one faceplate.
-
Does this come with modules included?
No, this is an unfurnished plate supplied without modules. Purchase required New Media modules separately based on your specific application needs.
-
Is this compatible with other manufacturer's modules?
Designed for Click New Media range modules. While aperture is industry-standard 25 x 50mm, compatibility with other brands not guaranteed due to fixing variations.
