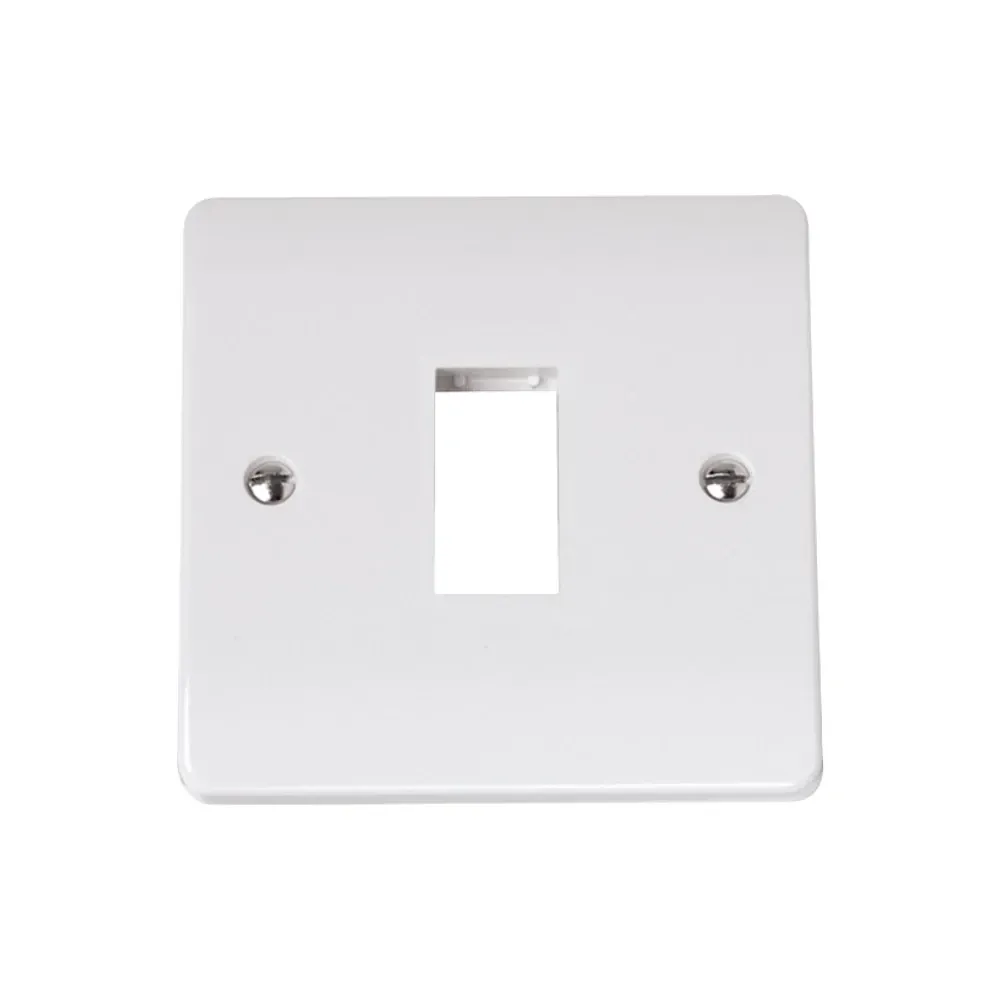

Click Mode CMA401 1-gang unfurnished plate polar white MiniGrid system
Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

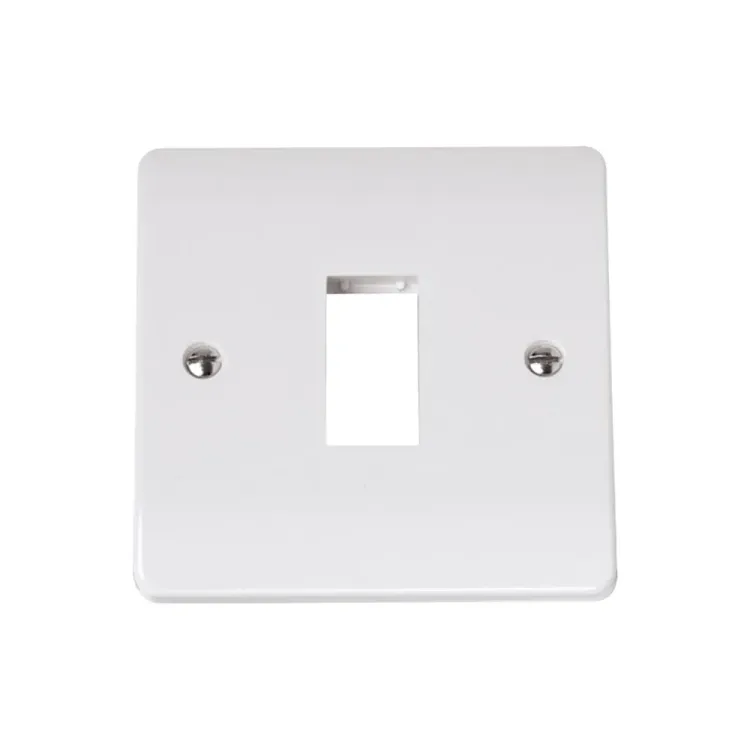

Click Mode CMA401 1-Gang MiniGrid Unfurnished Plate - Polar White

1-gang unfurnished plate for Click MiniGrid modular system accepting single-width modules. Urea formaldehyde construction with antimicrobial properties and curved profile design. Compatible with entire Click MiniGrid range including Mode, Define, Deco and Polar collections. Requires 25mm minimum backbox depth, 35mm recommended for optimal module compatibility. Standard 86x86mm dimensions with single screw module fixing. No yolk required for installation - direct plate fixing to backbox lugs. BS 5733 compliant with UKCA marking for professional electrical installations.

Stock Code: CMA401

Online:

In stock
Price 1.41 £
incl. VAT, 20% priced individually

Product Features
Gang Configuration 1-gang single aperture
Module Capacity 1 x single width MiniGrid module
System Compatibility Click MiniGrid - Mode, Define, Deco, Polar ranges
Backbox Depth 25mm minimum, 35mm recommended
Plate Dimensions 86mm x 86mm x 9.5mm
Material Urea Formaldehyde with antimicrobial properties
Fixing Centres 60.3mm horizontal spacing
Installation Method No yolk required - direct plate fixing
Module Fixing Single screw fixing per module
Operating Temperature -5°C to +40°C
IP Rating IP20 for indoor use
Compliance BS 5733, UKCA marked, RoHS compliant

MiniGrid System Benefits

Modular Flexibility

Interchangeable modules across entire Click MiniGrid range allow future reconfiguration without rewiring or plate replacement.

Range Compatibility

Modules from Mode, Define, Deco and Polar ranges fit interchangeably, enabling style matching across installations.

Installation Efficiency

No yolk required reduces installation time. Single screw fixing per module with 60.3mm fixing centres.

Professional Installation

Backbox Requirements

25mm minimum depth sufficient for basic modules. 35mm recommended for data modules requiring additional cable space.

Fixing Method

Standard screw fixing to backbox lugs eliminates need for separate yolk. Reduces component count and installation time.

Module Compatibility

Accepts all single-width Click MiniGrid modules. Future-proof system allows easy upgrade or reconfiguration.

Frequently Asked Questions

  • What backbox depth is required for the CMA401 unfurnished plate?

    25mm minimum backbox depth required. 35mm recommended for optimal compatibility, especially with data modules which may require additional depth for cable management.

  • Which MiniGrid modules are compatible with this plate?

    All Click MiniGrid single-width modules fit this plate. Compatible across Mode, Define, Deco and Polar ranges with interchangeable module system.

  • Does this plate require a yolk for installation?

    No yolk required. Direct screw fixing to backbox lugs using standard fixing centres. Each module secured with single screw fixing.

  • Can I mix modules from different Click ranges in this plate?

    Yes, all Click MiniGrid modules are interchangeable. You can mix switches, sockets and data modules from Mode, Define, Deco ranges.
