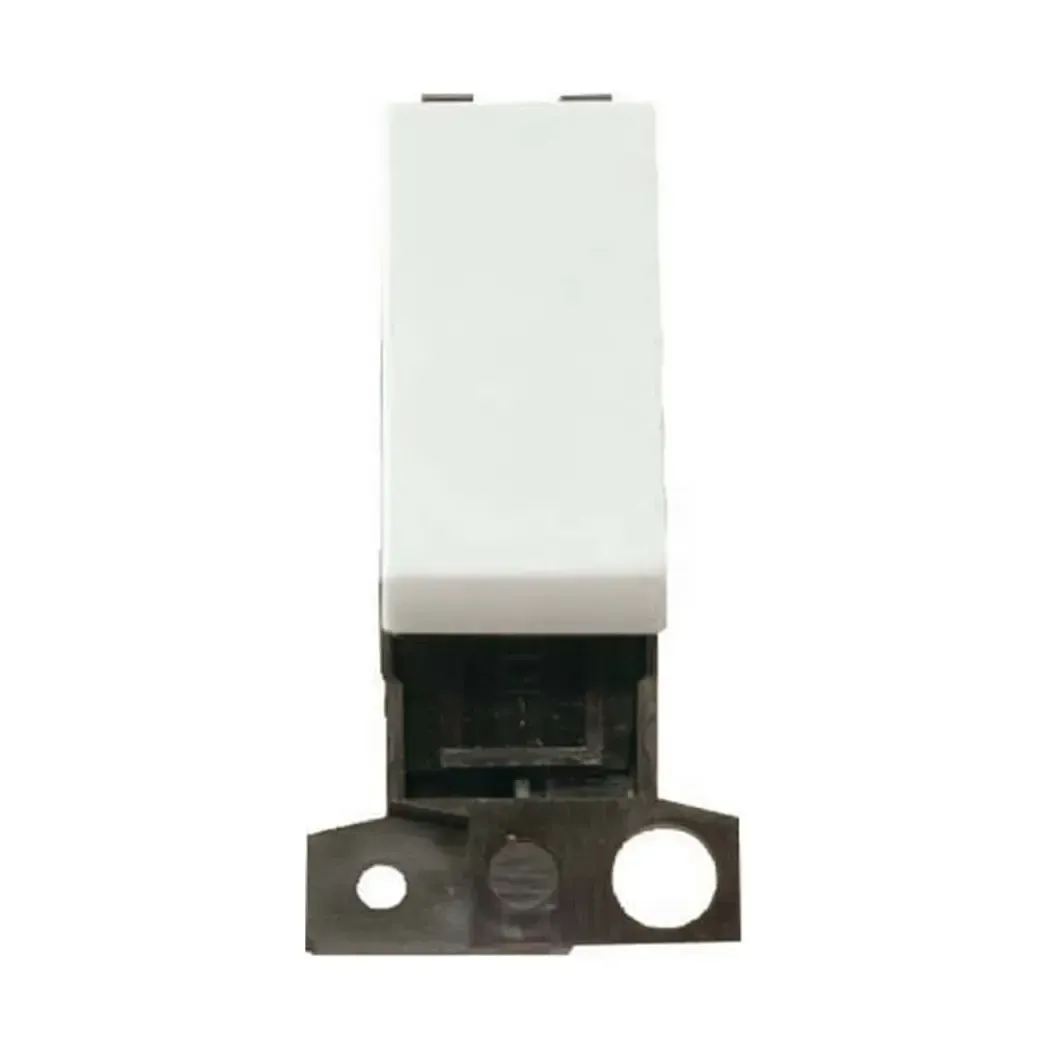

MD018WH - Click Module 1 Gang 10A DP Switch Module MD018WH

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

Click Module 1 Gang 10A DP Switch Module MD018WH

The Click Module 1 Gang 10A DP Switch Module MD018WH is a white double pole 1 gang switch with a 10 Amp current rating. It is designed with a dimensions of 25mm (W) x 53mm (H) x 20mm (D) and an aperture of 16mm (W) x 31.5mm (H). This switch module is constructed with high-quality materials like urea, nylon, brass, steel, and yellow passivated contacts, suitable for inductive loads, with a maximum voltage of 250V 50Hz.

Stock Code: MD018WH
In stock
Price 5.09 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Sku

    MD018WH

  • Gang

    1

  • Pole

    Double

  • Voltage

    250V 50Hz

  • Material

    Urea, nylon, brass, steel

  • Warranty

    10 Years

  • Standards

    BS EN 60669-1:1999 +A1:2002 +A2:2008

  • Load Rating

    13A/10AX

  • Terminal Size

    3.5mm

  • Back Box Depth

    Dependent On Plate Used

  • Current Rating

    10A

  • Termination Type

    Screw Terminal

  • Terminal Capacity

    4x 1.5mm2 or 2x 2.5mm2

  • Operational Temperature

    -5 C to +40 C
