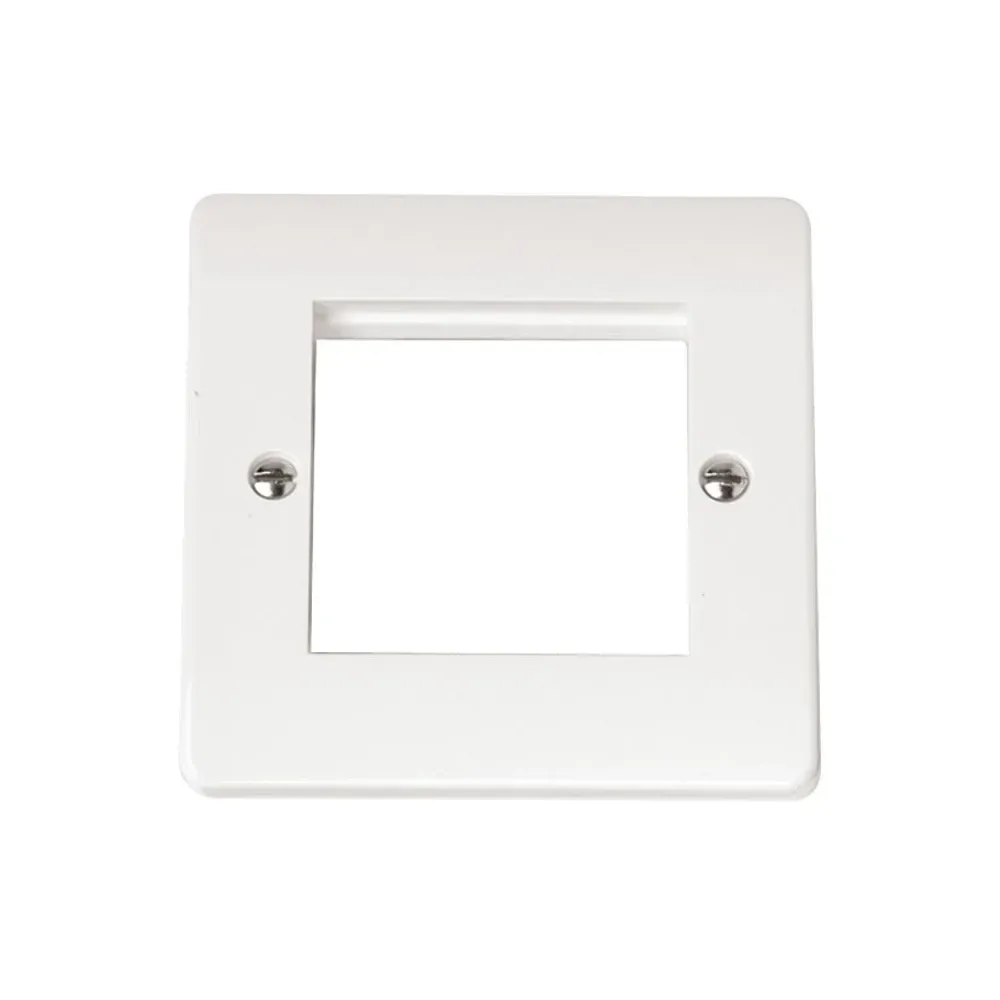

Click CMA311 1-gang unfurnished media plate polar white

Photo is representative

Click CMA311 1-Gang New Media Unfurnished Plate 2x50mm Apertures

1-gang unfurnished media plate with 2x 50mm apertures for New Media modular system installation. 86x86x9.5mm plate accepts Click Mode modules with 60.3mm fixing centres. Antimicrobial certified polar white urea formaldehyde construction rated IP20 for domestic applications. BS 5733 compliant with 25-year warranty for professional installations requiring flexible module configurations.

Product Information

Stock Code CMA311
MPN
GTIN
Stock status: In stock
Price: £1.04
incl. VAT, 20% priced individually

Product Features

Configuration 1 gang with 2 apertures
Aperture Size 50 x 50mm (New Media standard)
Plate Dimensions 86 x 86 x 9.5mm (W x H x D)
Fixing Centres 60.3mm horizontal spacing
Module Compatibility Click New Media Range modules
Material Urea formaldehyde front plate
IP Rating IP20 indoor use
Operating Temperature -5°C to +40°C
Standards Compliance BS 5733
Antimicrobial Certification 99.9% bacteria kill rate
Finish Polar white rounded profile
Warranty 25 years manufacturer guarantee

Installation Requirements

Fixing Method

Standard 60.3mm horizontal fixing centres. Use 3.5mm screws into backbox lugs with 0.6-0.8Nm torque for secure mounting.

Module Installation

Each module secures with single front-access screw. No plate removal required for module changes or additions during system upgrades.

Backbox Selection

Choose backbox depth based on deepest module fitted. Data modules typically 35mm, complex switching modules may require 47mm depth boxes.

Professional Applications

Office Installations

Configure with data, USB, and HDMI modules for flexible workstation connectivity. Antimicrobial properties suitable for shared workspace environments.

AV Installations

Media plate accepts audio, video, and data modules. Ideal for conference rooms, presentation areas requiring multiple connection types in single gang.

Smart Home Prep

Future-proof installation allowing easy module changes without rewiring. Switch between data speeds, add USB charging as requirements evolve.

Frequently Asked Questions

  • What backbox depth is required for CMA311 installation?

    Backbox depth depends on modules fitted. Standard 35mm sufficient for basic modules, 47mm recommended for complex multi-function modules with deeper terminal blocks.

  • Are Click New Media modules compatible with other systems?

    Click New Media modules are proprietary 50x50mm format. Only compatible with Click CMA range plates using 60.3mm fixing centres, not interchangeable with MK or Schneider systems.

  • Can rocker switches be fitted to CMA311 apertures?

    Yes, CMA311 accepts Click New Media rocker switches and data modules. Each 50x50mm aperture accommodates one standard module with single-screw fixing.

  • What cable management options work with this plate?

    Use appropriate Click New Media modules for cable termination. Plate itself provides apertures only - actual connections made via fitted modules with integral terminals.
