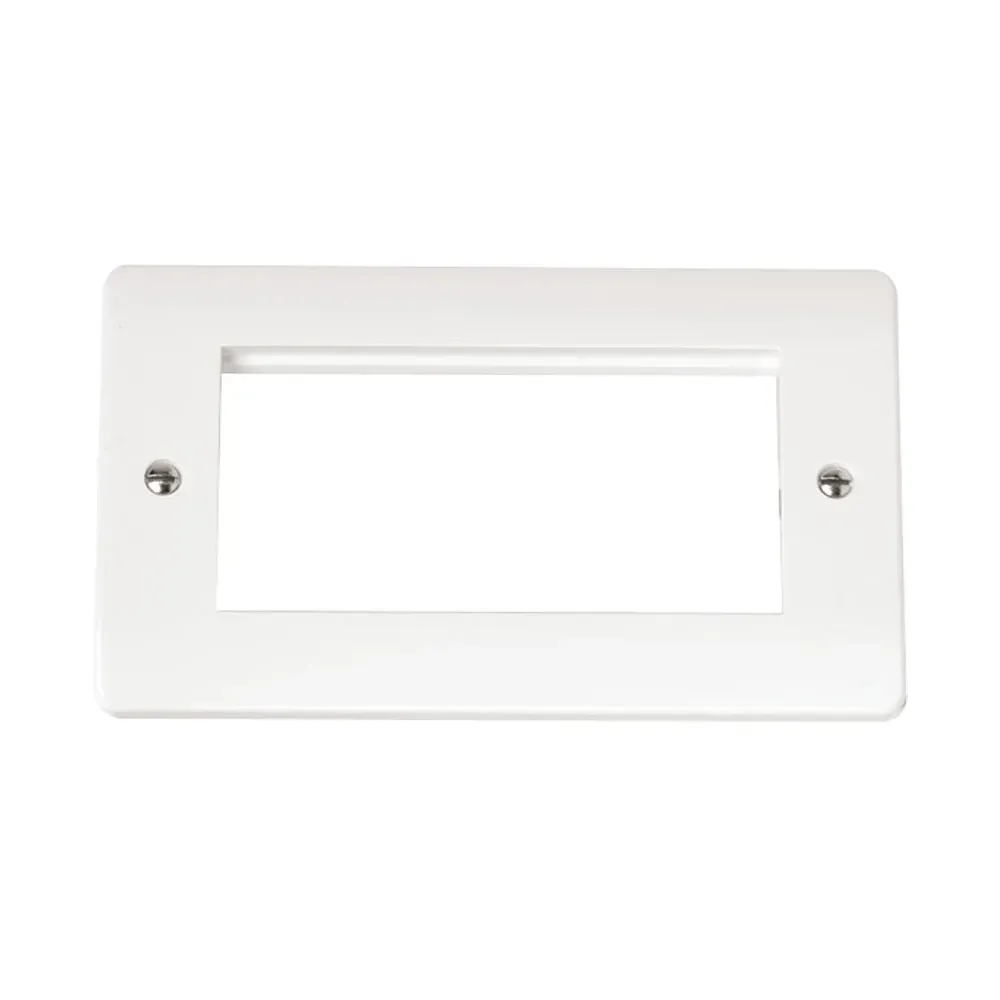

Click Mode CMA312 2 Gang New Media Unfurnished Plate 4 Apertures - White
2 gang unfurnished modular plate with 4 x 100x50mm New Media apertures for professional installations. BS 5733 compliant plate accepts Click New Media range modules including data, AV, and USB outlets. 146x86x9.5mm dimensions fit standard 35mm backboxes with 120.6mm fixing centres. Antimicrobial certified polar white finish kills 99.9% bacteria and viruses. Modules sold separately - complete flexibility for custom configurations. 25-year warranty.
Online:
Product Features
| Configuration | 2 Gang, 4 Apertures (100x50mm) |
|---|---|
| Module Compatibility | Click New Media Range modules |
| Plate Type | Unfurnished modular system |
| Dimensions | 146mm (W) x 86mm (H) x 9.5mm (D) |
| Fixing Centres | 120.6mm horizontal spacing |
| Compliance Standard | BS 5733 certified |
| IP Rating | IP20 for indoor use |
| Material Construction | Urea Formaldehyde front plate |
| Antimicrobial Protection | 99.9% bacteria/virus kill rate |
| Operating Temperature | -5°C to +40°C range |
| Certification Marking | UKCA marked |
| Warranty Period | 25 years manufacturer warranty |
Installation Requirements
Backbox Compatibility
Standard 35mm minimum depth for basic modules. 47mm depth recommended for USB charging modules with integrated transformers and cable management space.
Module Selection
Modules sold separately from Click New Media range. Choose from data, USB, HDMI, audio, and blank modules to create custom configurations.
Fixing Specifications
120.6mm horizontal centres match standard UK dual gang backboxes. Use appropriate screws for backbox material - 3.5mm diameter recommended.
Professional Applications
Office Installations
Ideal for desk-mounted data outlets combining Cat6 ethernet, USB charging, and HDMI connectivity in single professional-grade plate.
Meeting Room AV
Configure with HDMI, audio, and data modules for presentation connectivity. Antimicrobial coating suitable for high-touch commercial environments.
Educational Facilities
Modular system allows future upgrades without rewiring. Add USB-C charging or upgrade data speeds by changing modules only.
Healthcare Environments
Antimicrobial certification eliminates 99.9% bacteria and viruses. Smooth rounded profile prevents dirt accumulation in clinical settings.
Frequently Asked Questions
-
What backbox depth required for CMA312 with modules?
Minimum depth depends on modules fitted. Standard data modules require 35mm backbox, USB charging modules typically need 47mm depth for cable management.
-
Are Click New Media modules cross-compatible with other brands?
No, CMA312 designed specifically for Click New Media range modules. 100x50mm apertures match Click modular system only, not MK or Schneider grid systems.
-
Can I mix different module types in one plate?
Yes, each aperture accepts any Click New Media module - data, USB, blank, HDMI, or audio modules. Complete flexibility for custom configurations.
-
What fixing centres does CMA312 use for installation?
Standard 120.6mm horizontal fixing centres match UK backbox spacing. Vertical centres 60.3mm for dual gang installation in standard electrical enclosures.
-
Does antimicrobial protection affect electrical performance?
No, antimicrobial coating applied to front plate surface only. Internal connections and module compatibility unaffected while providing 99.9% bacteria elimination.
