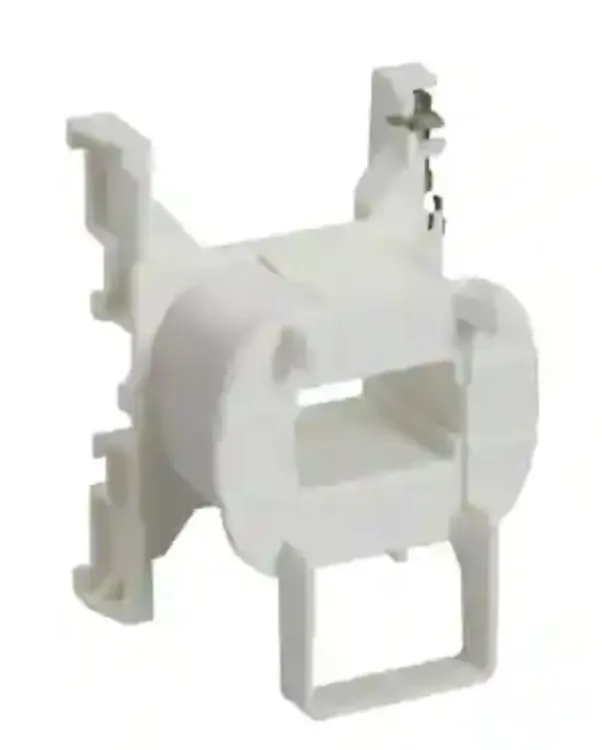

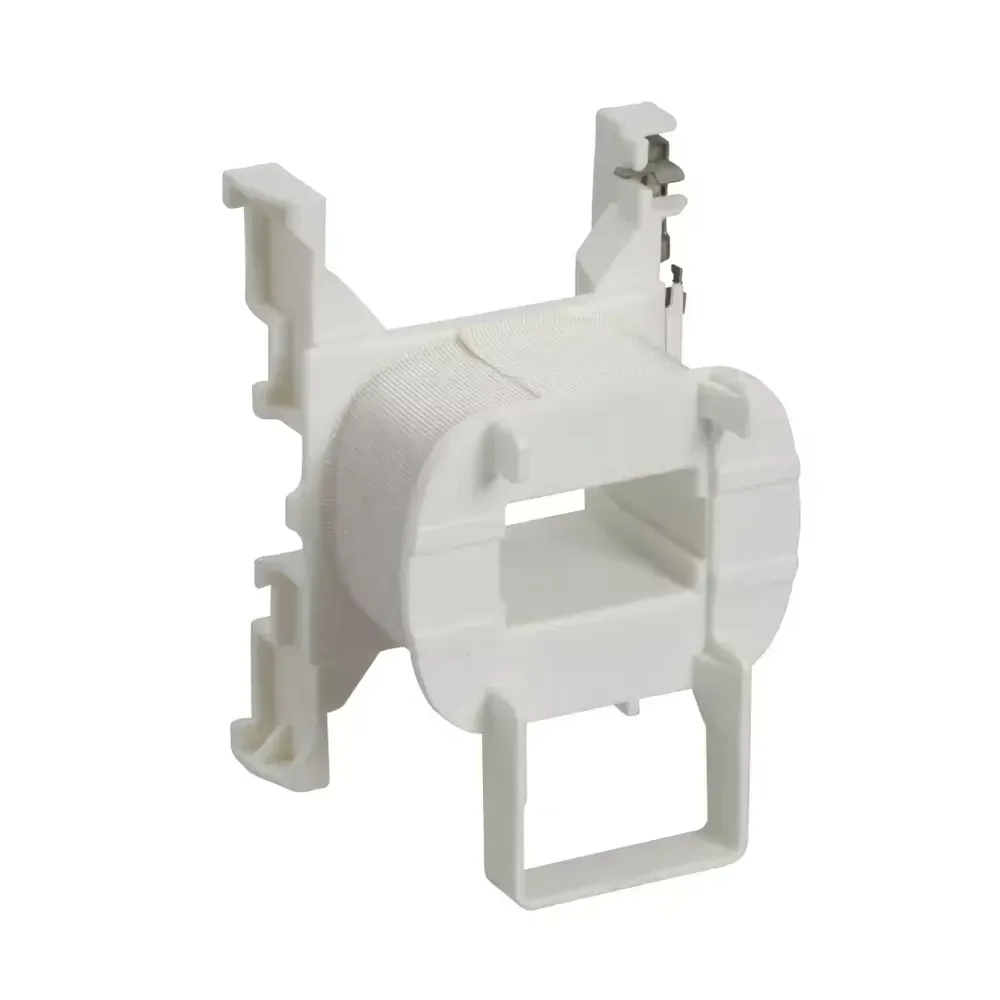

Schneider TeSys Deca LXD1 contactor coil 48V AC front view for LC1D09…D38

Photo is representative

Schneider Contactor Coil 48V AC for LC1D09…D38 | TeSys Deca LXD1

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LXD1E7
GTIN —
Stock status: 9 in stock

priced individually

Net price: £17.99

Gross price

£21.58

The Schneider TeSys Deca contactor coil offers reliable 48V AC 50/60Hz control for LC1D09…D38 series contactors. Designed for durability and consistent performance, this coil supports 9–38A applications, has high mechanical endurance, and features AC operation for industrial panels. Ideal for professional switchgear assembly, the rugged construction withstands demanding environments and frequent switching cycles, providing long service life for heavily used contactors.

Specifications

Manufacturer

Schneider

Series

TeSys Deca LXD1

Type

Contactor Coil

Control Circuit Voltage

48 V AC 50/60 Hz

Compatible With

LC1D09…D38, LC1DT20…DT40, CAD

Mechanical Durability

15 million cycles

Max Operating Rate

3600 cycles/hour at 60°C

Coil Technology

No built-in suppressor module

Ambient Temperature Range

-5…60°C

Net Weight

0.07 kg

Frequently asked questions

Which Schneider contactors are compatible with this 48V AC coil?

This coil is compatible with Schneider LC1D09…D38 and LC1DT20…DT40 contactor series, as well as CAD contactors specified for 9–38A applications on AC control circuits.

What is the mechanical durability of the TeSys Deca LXD1 48V coil?

The mechanical durability of this coil is rated for up to 15 million cycles, allowing for reliable long-term operation in high-usage industrial switchgear installations.

What are the control voltage and frequency ratings for this coil?

The coil operates with a control circuit voltage of 48V AC at both 50 Hz and 60 Hz, with operational voltage limits as specified in the technical documentation.

Does the LXD1 coil include a built-in suppressor module?

No, the LXD1 coil does not have a built-in suppressor module for overvoltage protection. External suppression solutions should be used as required by the installation.

What is the maximum operating rate for this coil?

The coil achieves a maximum of 3600 operating cycles per hour at 60°C, supporting frequent switching in demanding environments.
