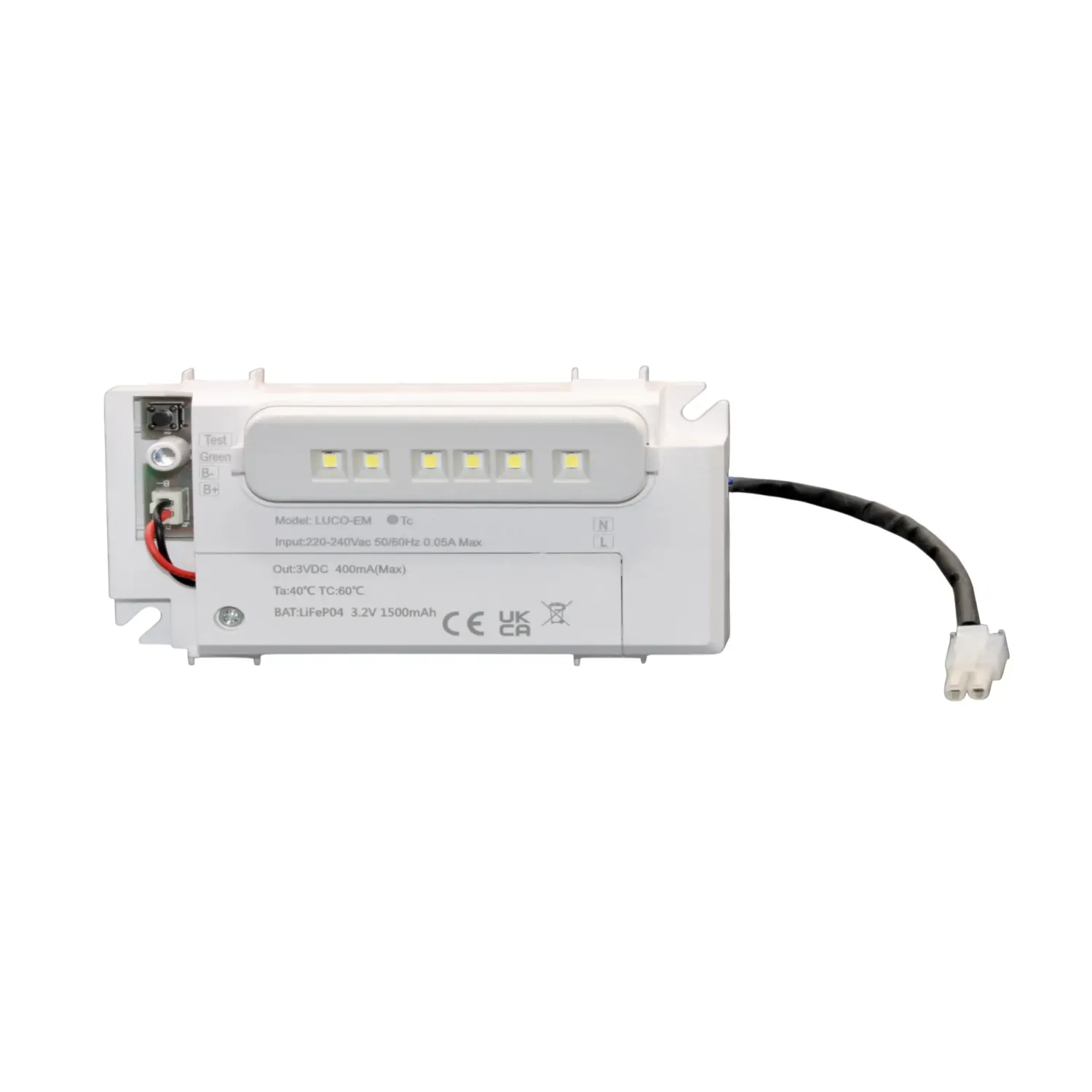

Collingwood WAREM Emergency Pack for CCTPALED Warrior 230V

Photo is representative

Emergency Pack for CCTPALED Warrior 230V, WAREM

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code WAREM
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £19.52

Gross price

£23.42

Emergency pack for the CCTPALED Warrior luminaire. Provides battery backup for maintained or non-maintained emergency operation.

Input accepts 220-240V AC across a wide range of 176-264V. Onboard short-circuit protection runs in hiccup mode. Rated working life is 5 years minimum.

  • Input voltage: 176-264V AC (nominal 220-240V AC)
  • Battery: 3.2V / 1500mAh
  • Rated power: 2W
  • Working temp: -30°C to +55°C
  • Safety standard: EN60950-1
Specifications

Nominal Input Voltage

220-240V AC

Input Voltage Range

176-264V AC

Frequency Range

47-63Hz

Rated Power

2W

AC Current (Max)

<0.1A

Standby Power

<1.2W (typ.)

Efficiency

>60% at 240V AC full load

Battery

3.2V / 1500mAh

Charging Voltage

4-5V

Charging Current

60-100mA

Discharge Voltage

3V

Discharge Current

400mA at 3.2V

Setup Time

<500ms at 230V AC full load

Short Circuit Protection

Hiccup mode

Withstand Voltage

Input-Output: 3.0kV AC 3s

Working Temperature

-30°C to +55°C

Working Humidity

20-90% RH non-condensing

Storage Temperature

-40°C to +80°C

Storage Humidity

10-95% RH

Vibration

10-500Hz, 5G, 10min/cycle, 60min each axis (X, Y, Z)

Safety Standard

EN60950-1

Rated Lifetime

≥5 years

Documents

datasheet WAREM Datasheet
