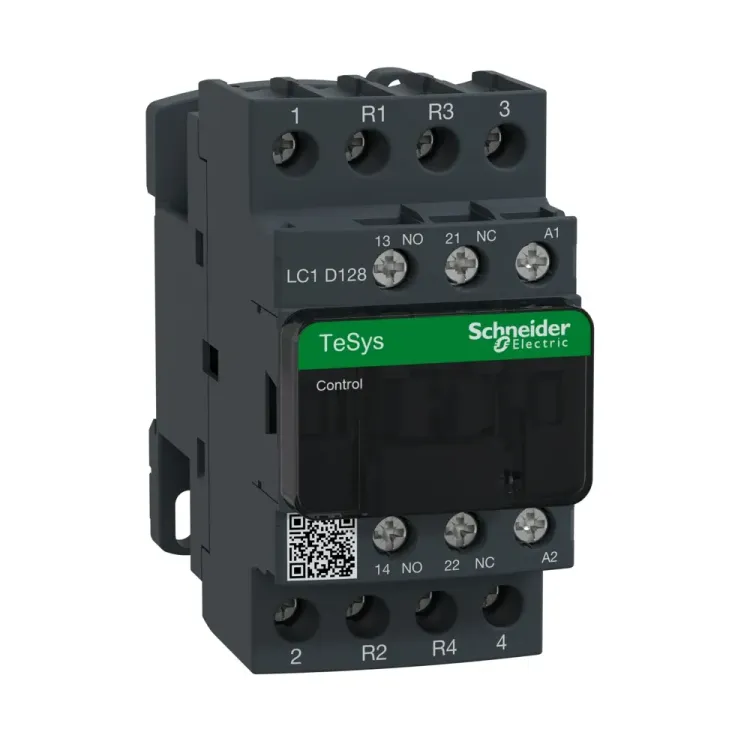

Schneider TeSys D 25A 4P contactor LC1D128E7 front view

Photo is representative

Schneider TeSys D 25A 48V AC 4P (2NO+2NC) Contactor - LC1D128E7

Schneider TeSys D 25A 48V AC 4P (2NO+2NC) contactor (LC1D128E7), designed for AC-1 resistive load control up to 25A at voltages up to 440V AC. Features 4-pole configuration with 2 normally open and 2 normally closed power contacts, compact DIN rail or panel mounting, and robust screw clamp terminals. Suitable for general control panel, distribution, lighting, and heating applications. Meets IEC 60947-4-1 and EN 60947-4-1 standards. High mechanical durability for industrial environments.

Product Information

Stock Code LC1D128E7
MPN LC1D128E7
GTIN 3389110250015
Stock status: 1 available
More arriving soon
Price: £47.98
incl. VAT, 20% priced individually

Product Features
Current Rating 25A AC-1 at ≤440V AC
Control Coil 48V AC 50/60Hz
Contact Configuration 4P (2NO+2NC) power contacts, plus 1NO+1NC auxiliary contacts
Frame Size D-frame standard
Terminal Type Screw clamp terminals
Mounting Method DIN rail or panel mount
Mechanical Life 15 million operations
Electrical Life 0.8 million operations at 25A AC-1
Auxiliary Capability Accepts up to 4 auxiliary contact blocks
Standards Compliance IEC 60947-4-1, EN 60947-4-1, UL 60947-4-1, CSA, Marine

Brand

Schneider Electric
