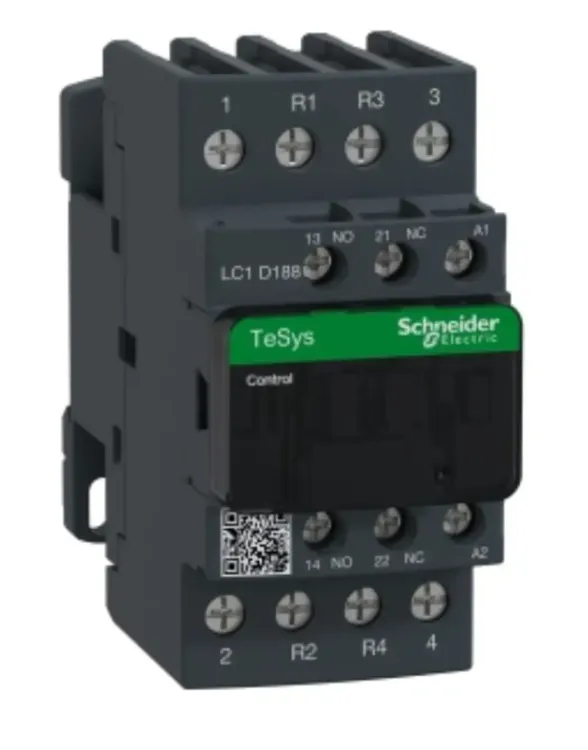

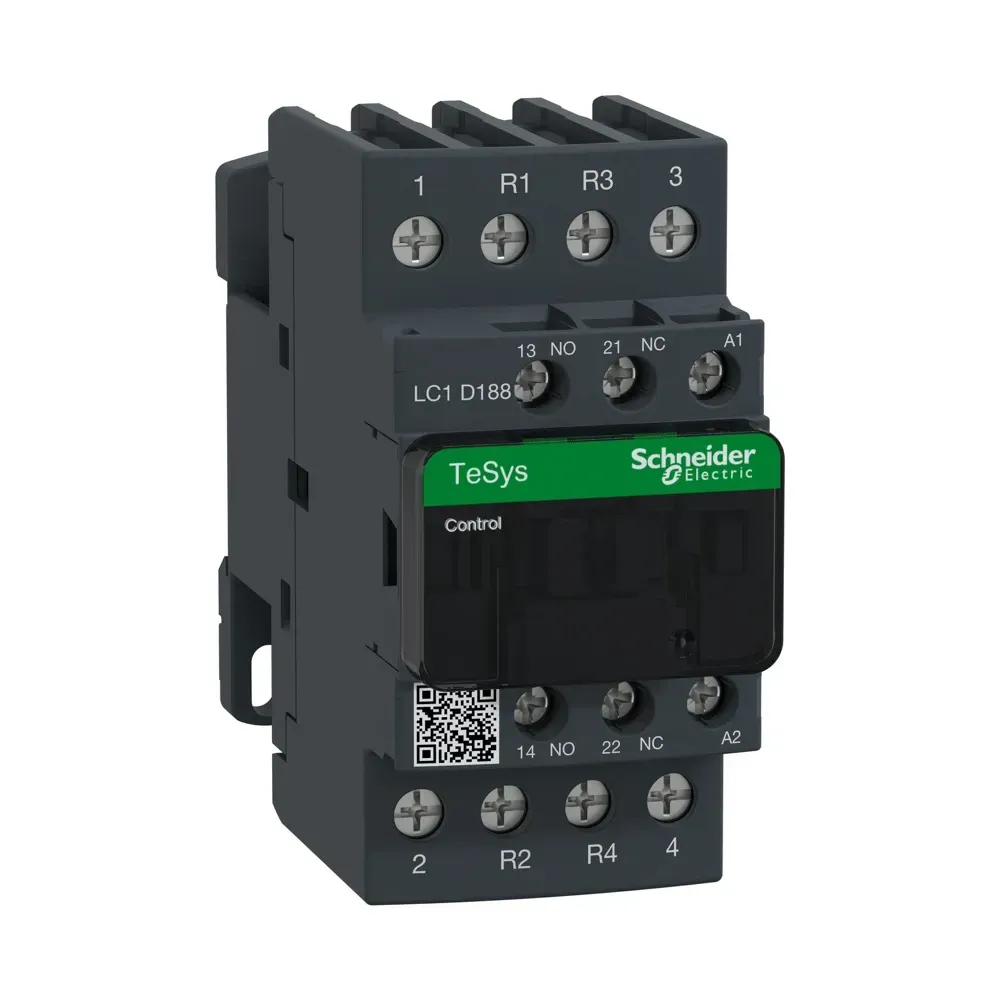

Schneider TeSys D 32A 48V AC 4P contactor LC1D188E7 front view

Photo is representative

Schneider TeSys D 32A 48V AC 4P (2NO+2NC) Contactor - LC1D188E7

Schneider TeSys D 32A 48V Coil AC 4P (2NO+2NC) contactor (LC1D188E7), suitable for AC-1 resistive load switching up to 32A at ≤440V. Includes a 48V AC 50/60Hz control coil and modular 4-pole configuration (2 NO + 2 NC) for flexibility in power and control circuits. Screw clamp terminals ensure secure wiring, with plate or DIN rail mounting for versatile panel installation. Certified to IEC 60947-4-1⁄5-1 and relevant UL, CSA, and EN standards. Designed for industrial control panels, lighting, heating, and distribution switchboards requiring robust, reliable multi-pole switching.

Product Information

Stock Code LC1D188E7
MPN LC1D188E7
GTIN 3389110250107
Stock status: In stock
Price: £91.34
incl. VAT, 20% priced individually

Product Features
Current Rating 32A AC-1 (≤440V AC)
Control Coil 48V AC 50/60Hz
Contact Configuration 4P (2NO + 2NC) power contacts
Frame Size D-frame, modular TeSys D series
Terminal Type Screw clamp terminals (1.5–16 mm²)
Mounting Method DIN rail or panel (plate) mount
Auxiliary Capability 1 NO + 1 NC built-in, accepts additional auxiliaries
Mechanical Life 15 million operations
Standards Compliance IEC 60947-4-1, IEC 60947-5-1, UL, CSA, EN

Brand

Schneider Electric
