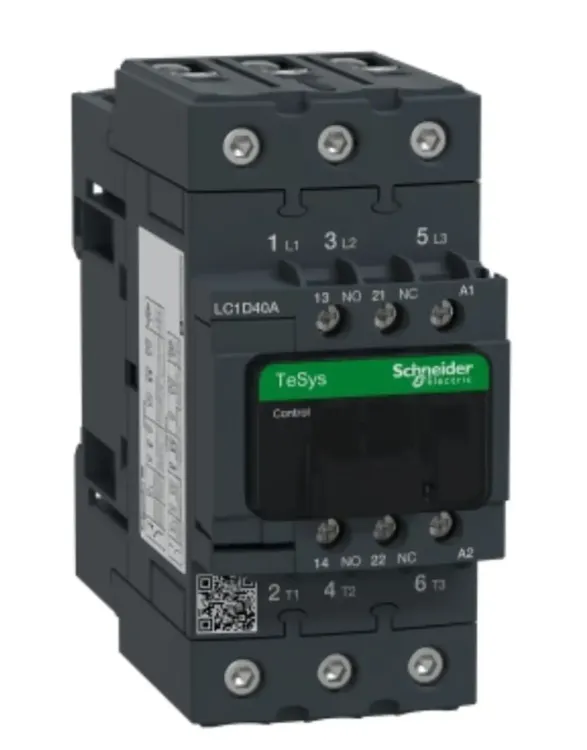

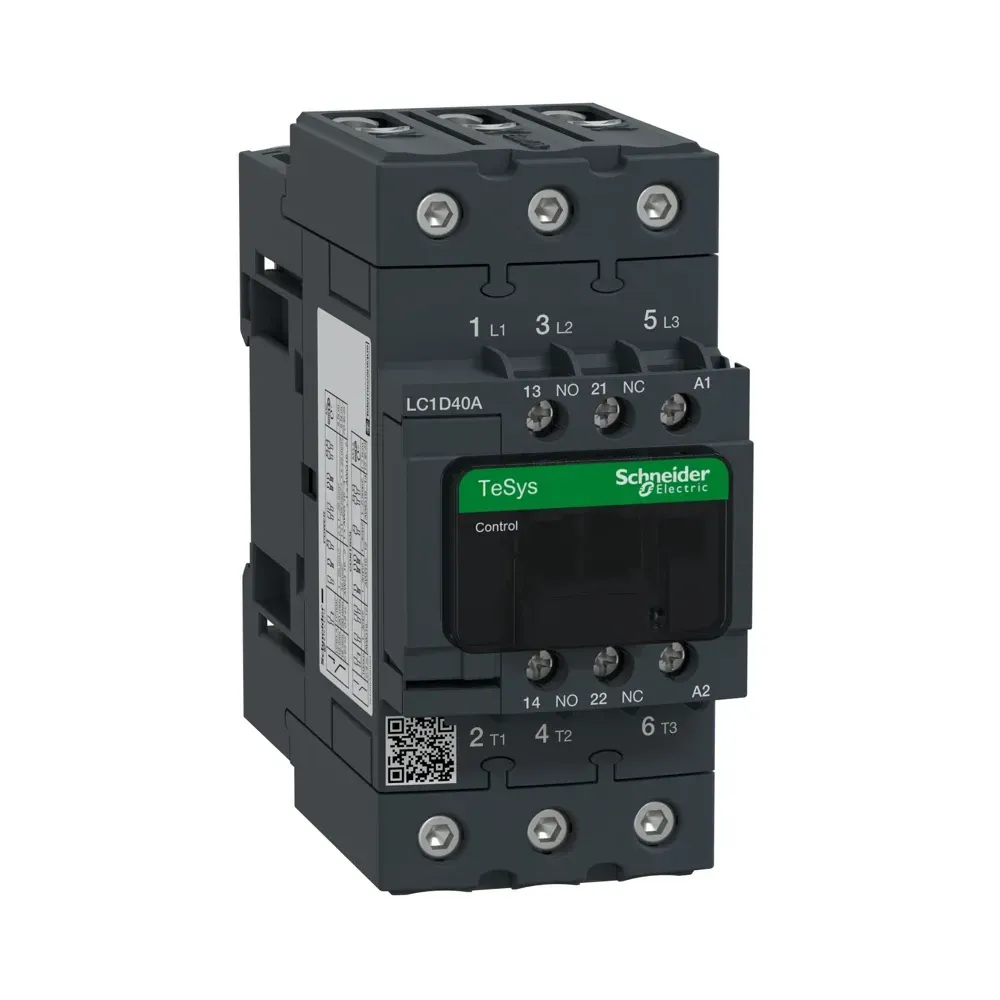

Contactor 40A 24VAC 1N/O+1N/C Telemecanique
The TeSys Deca contactor is a 3-pole (3NO) contactor designed for motor control applications up to 40A/440V AC-3/3e (18.5kW@400V). It features a 24V 50/60Hz AC coil, 1NO+1NC auxiliary contacts, EverLink BTR screw connectors for power connection, and screw clamp terminals for control connection. With the ability to operate at rates up to 3600 cycles/hour and in environments up to 60°C, this contactor offers high reliability and durability. It is compact with a width of 55mm, suitable for DIN-rail mounting or screw fixing. Additionally, it is multi-standards certified (IEC UL CSA CCC EAC Marine) and Green Premium compliant (RoHS/REACh).
Stock Code:
LC1D40AB7
Online:
8 available
Price 183.72 £
incl. VAT, 20%
priced individually
Product Features
| Sku | LC1D40AB7 |
|---|---|
| Amps | 40A |
| Poles | 3 |
| Contacts | 1N/O+1N/C |
| Compliance | Green Premium (RoHS/REACh) |
| CoilVoltage | 24VAC |
| Environment | Up to 60°C |
| Certifications | IEC UL CSA CCC EAC Marine |
| OperatingRates | Up to 3600 cycles/hour |
| PowerConnection | EverLink BTR Screw Connectors |
| ControlConnection | Screw Clamp Terminals |
