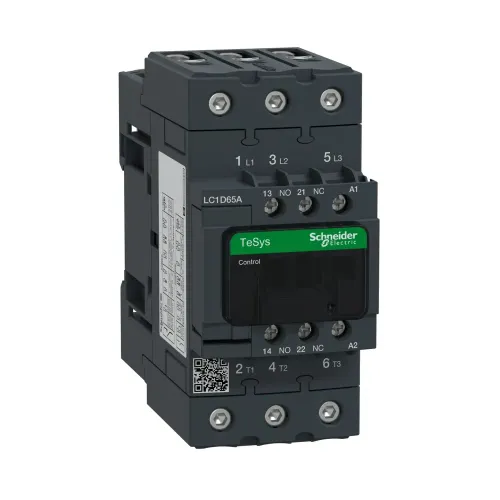

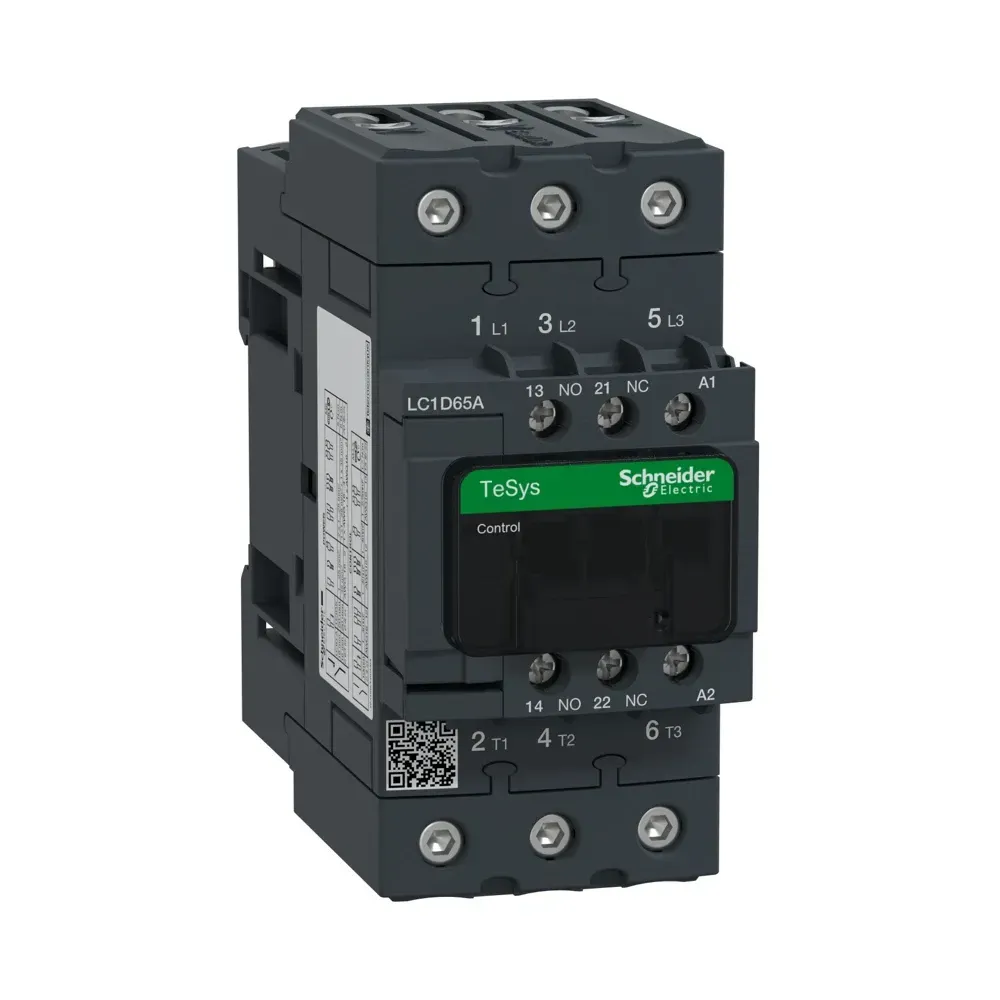

Schneider LC1D65AB7 TeSys D 3P contactor front view

Photo is representative

Schneider TeSys D 65A 24V AC 3P Contactor - LC1D65AB7

Schneider TeSys D 65A 24V Coil AC 3P contactor (LC1D65AB7), suitable for motor control and resistive load switching in industrial applications. Rated 65A AC-3 at 400V for motors up to 30kW, with 24V AC 50/60Hz control coil and screw clamp terminals. Accepts direct mounting of auxiliary blocks for extended signaling Contacts. Conforms to IEC 60947-4-1 and 60947-5-1 with robust mechanical and electrical durability. Dual mounting via DIN rail or panel plate. Includes 1 NO + 1 NC auxiliary contacts. IP20 front protection and certified to international standards for reliable use in harsh environments.

Stock Code: LC1D65AB7

Online:

2 available
Price 299.68 £
incl. VAT, 20% priced individually

Product Features

Current Rating 65A AC-3, 80A AC-1
Control Coil 24V AC 50/60 Hz
Contact Configuration 3P (3 NO) + 1NO+1NC auxiliary
Frame Size D-frame
Terminal Type Screw clamp terminals (EverLink)
Mounting Method 35mm DIN rail or panel mount
Auxiliary Capability Accepts up to 4 auxiliary blocks
Mechanical Life 6 million operations
Standards Compliance IEC 60947-4-1, IEC 60947-5-1, UL, CSA, EN 60947-4-1
Motor Rating 30kW at 400V AC-3, 37kW at 500V AC-3, 18.5kW at 230V AC-3

Brand

Schneider Electric
