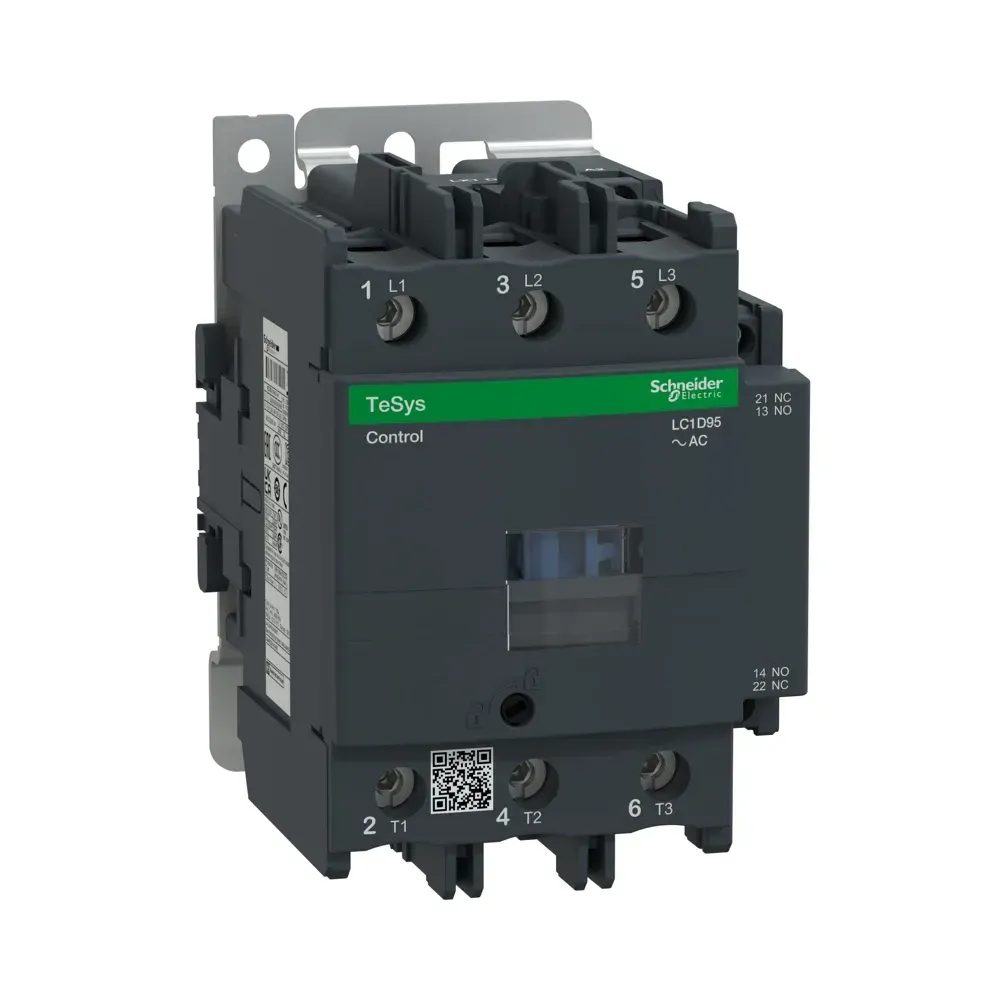

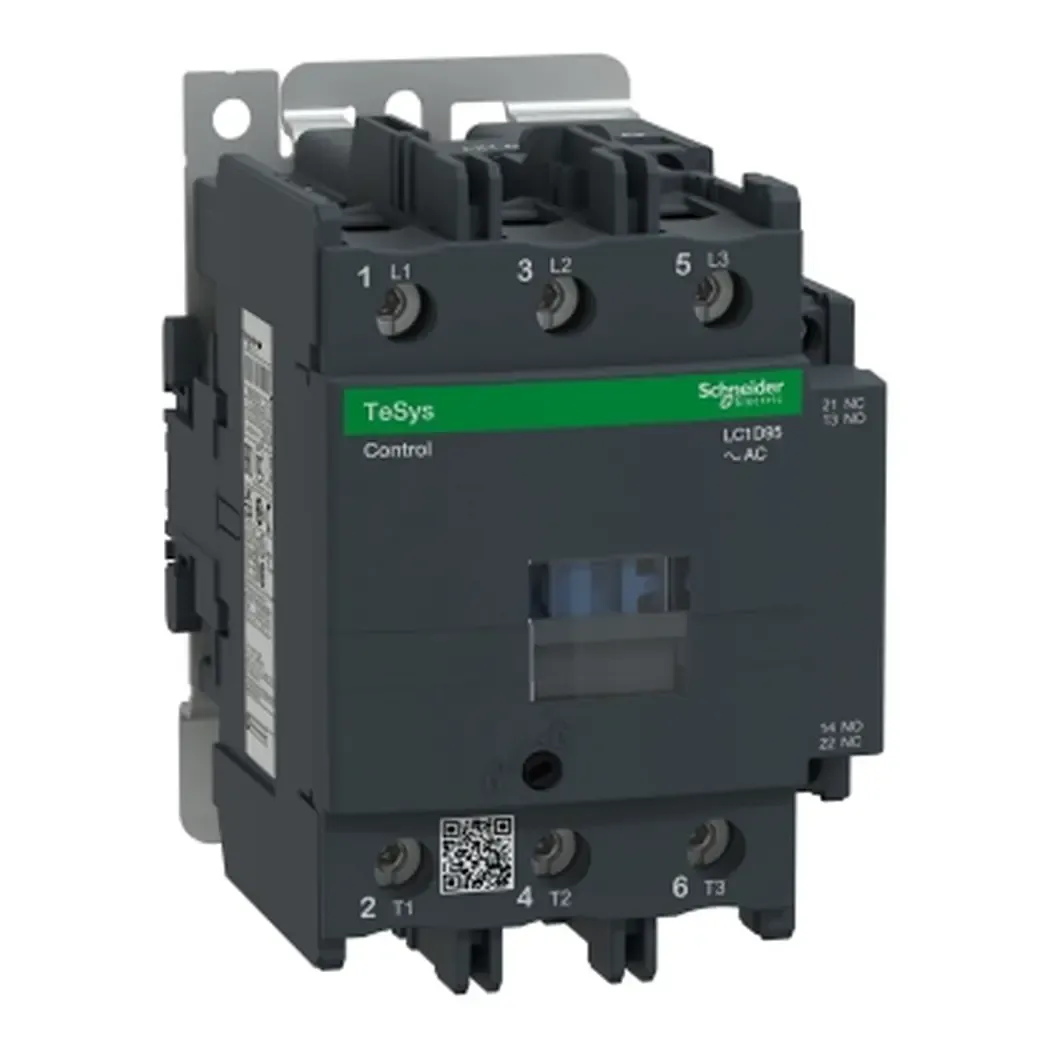

Schneider LC1D95P7 TeSys D 95A 3P contactor front view

Photo is representative

Schneider TeSys D 95A 230V AC 3P Contactor - LC1D95P7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D95P7
GTIN —
Stock status: 4 in stock

priced individually

More arriving soon

Net price: £340.64

Gross price

£408.77

Schneider TeSys D 95A 230V Coil AC 3P contactor (LC1D95P7), suitable for heavy-duty motor control and resistive load switching applications. AC-3 rated 95A at 440V for direct-on-line (DOL) motor starting, star-delta, and reversing duties with power capacity up to 45kW (400V AC). Features DIN rail or panel mounting, screw clamp terminals, and integrated auxiliary contacts (1NO+1NC). Complies with IEC 60947-4-1 and IEC 60947-5-1, ideal for professional control panel assembly and industrial automation.

Specifications

Current Rating

95A AC-3, 125A AC-1

Control Coil

230V AC 50/60Hz

Contact Configuration

3P power contacts + 1NO+1NC auxiliary contacts

Frame Size

F-frame (LC1D95)

Terminal Type

Screw clamp terminals for power and control circuits

Mounting Method

35mm DIN rail or panel mount

Auxiliary Capability

Accepts up to 4 auxiliary contact blocks

Motor Rating

Up to 45kW at 400V (AC-3)

Mechanical Life

4 million operations

Electrical Life

1.2 million operations at 95A (AC-3)

Standards Compliance

IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, EN 60947-5-1, UL, CSA, CE, UKCA

Schneider Electric
