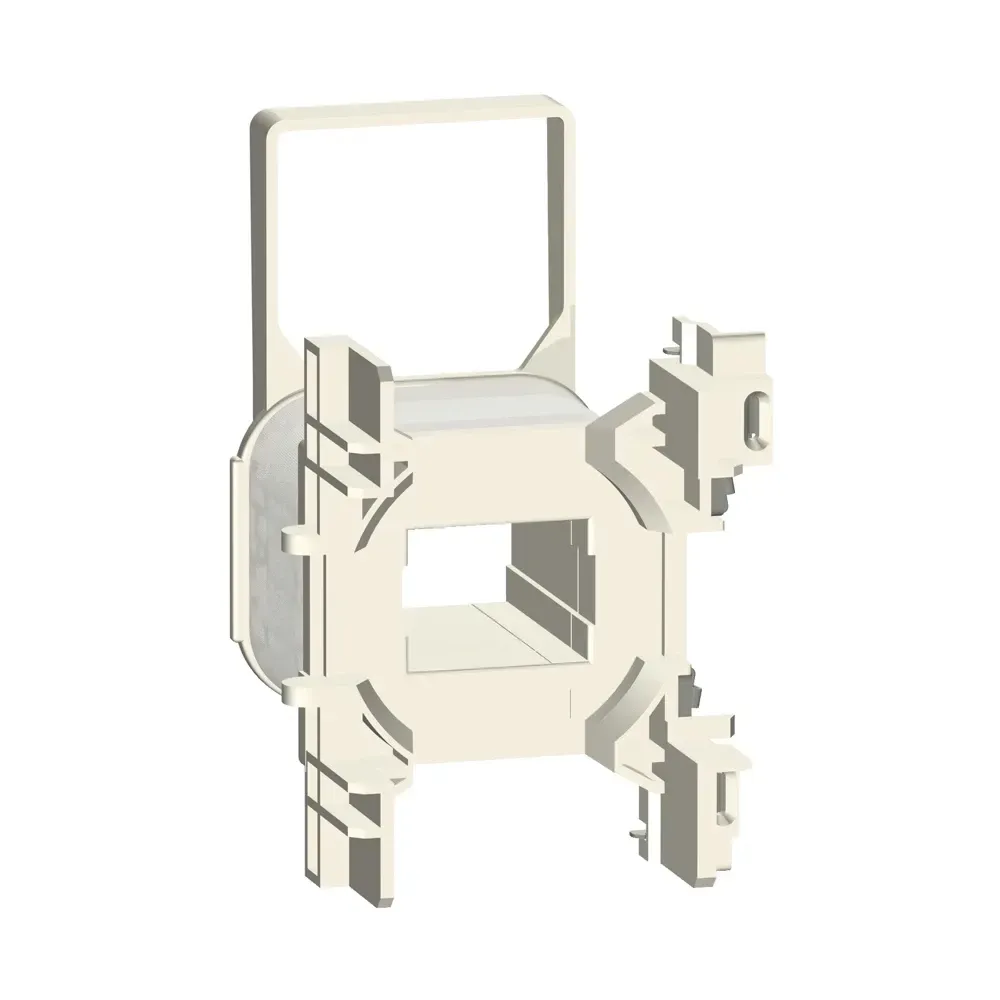

Schneider 230V AC contactor coil for 40-65A

Photo is representative

Schneider Contactor Coil 230V AC 40-65A | TeSys Deca

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LXD3P7
GTIN —
Stock status: 6 in stock

priced individually

More arriving soon

Net price: £66.95

Gross price

£80.33

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

The Schneider Contactor Coil for TeSys Deca delivers reliable 230V AC control for 40-65A contactors, ensuring robust operation in demanding industrial settings. Benefit from high mechanical durability, precise voltage limits, and compatibility with multiple LC1D series contactors. Energy-efficient design minimizes heat dissipation. Ideal for maintenance of control panels and professional automation systems.

Specifications

Brand

Schneider

Range

TeSys Deca

Product Type

Contactor Coil

Control Circuit Voltage

230V AC 50/60 Hz

Current Range Compatibility

40–65A

Compatible Models

LC1DT80A, LC1D40A–D65A, LC1DT60A

Average Resistance

192 Ohm at 20°C

Inductance (Closed Circuit)

10.9 H

Mechanical Durability

6 million cycles

Product Code

LXD3P7

Frequently asked questions

What TeSys contactors is this 230V AC coil compatible with?

This Schneider contactor coil is compatible with LC1DT80A, LC1D40A through D65A, and LC1DT60A TeSys Deca contactors rated for 40–65A.

What are the voltage operation limits for this coil?

Operational voltage limits are 0.8–1.1 Uc at 50 Hz and 0.85–1.1 Uc at 60 Hz, with drop-out between 0.3–0.6 Uc at <60°C.

What is the inrush and hold-in power consumption?

Inrush power is 160 VA at 50/60 Hz, cos phi 0.75, and hold-in power consumption is 15 VA at 50/60 Hz, cos phi 0.3, both measured at 20°C.

What are the operational temperature limits?

The Schneider contactor coil operates reliably in ambient air temperatures from -5°C to 60°C, making it suitable for a range of industrial environments.
