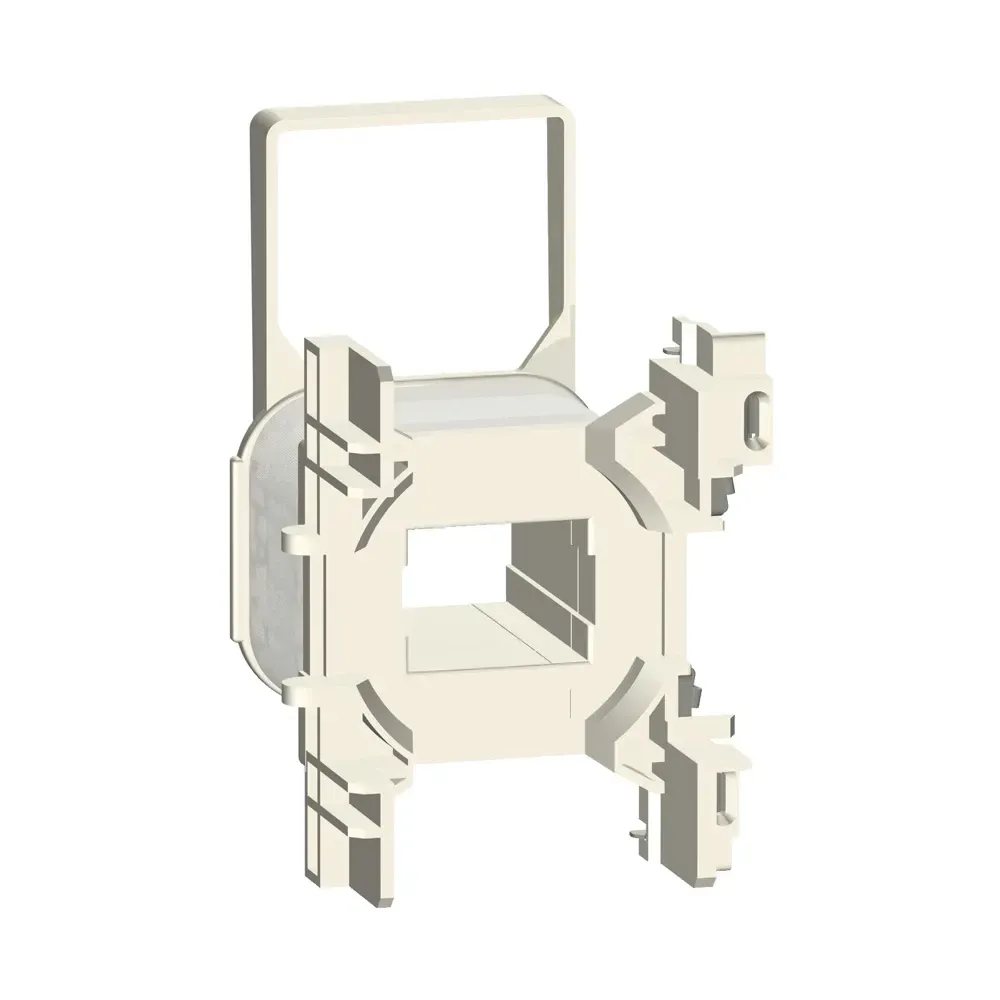

Schneider XLD3V7 400V AC contactor coil for 40-65A contactors

Photo is representative

Schneider Contactor Coil 400V AC for 40-65A | TeSys Deca Industrial

This Schneider contactor coil is engineered for reliable performance in 400V AC control circuits, supporting contactors rated from 40A to 65A. Compatible with TeSys Deca LC1D series, it offers robust mechanical durability and rapid cycling for industrial panels. Its 607 Ohm resistance and high inductance enable efficient magnet operation. Designed for challenging environments, the coil operates from -5°C up to 60°C and integrates seamlessly into existing TeSys control assemblies.

Product Information

Stock Code LXD3V7
MPN
GTIN
Stock status: Out of stock
Price: £70.45
incl. VAT, 20% priced individually

Product Features

Brand Schneider
Coil Voltage 400 V AC 50/60 Hz
Suitable Contactor Range 40-65A
Product Compatibility LC1DT60A, LC1DT80A, LC1D40A to LC1D65A
Average Resistance 607 Ohm at 20°C
Inductance 33.1 H (closed circuit)
Mechanical Durability 6 million cycles
Inrush Power 160 VA at 50/60 Hz
Hold-in Power 15 VA at 50/60 Hz
Ambient Temperature Range -5°C to 60°C

Applications & Uses

Industrial Control Panels

Designed for integration in industrial control panels operating at 400V AC, suitable for automation lines and heavy-duty machinery requiring reliable switching.

Motor Starters

Ideal for motor starter assemblies within the 40A–65A range, offering precise coil response in high-demand settings such as HVAC, pumps, and process lines.

Frequently Asked Questions

  • What contactors are compatible with this Schneider 400V AC coil?

    This coil is compatible with the Schneider TeSys Deca LC1DT60A, LC1DT80A, and LC1D40A to LC1D65A contactors. Always verify compatibility with the specific contactor model in your panel.

  • What is the maximum ambient temperature for operation?

    The maximum ambient operating temperature is 60°C. For optimal performance, ensure installation environments do not exceed this temperature range.

  • What are the inrush and hold-in power ratings for this coil?

    The inrush power is 160 VA at both 50 Hz and 60 Hz, while the hold-in power consumption is 15 VA at the same frequencies. These ratings are measured at 20°C.

  • Does the coil include a built-in suppressor module?

    No, this Schneider TeSys Deca 400V AC coil is supplied without a built-in suppressor module. External suppression may be required depending on control circuit design.

Brand

Schneider Electric
