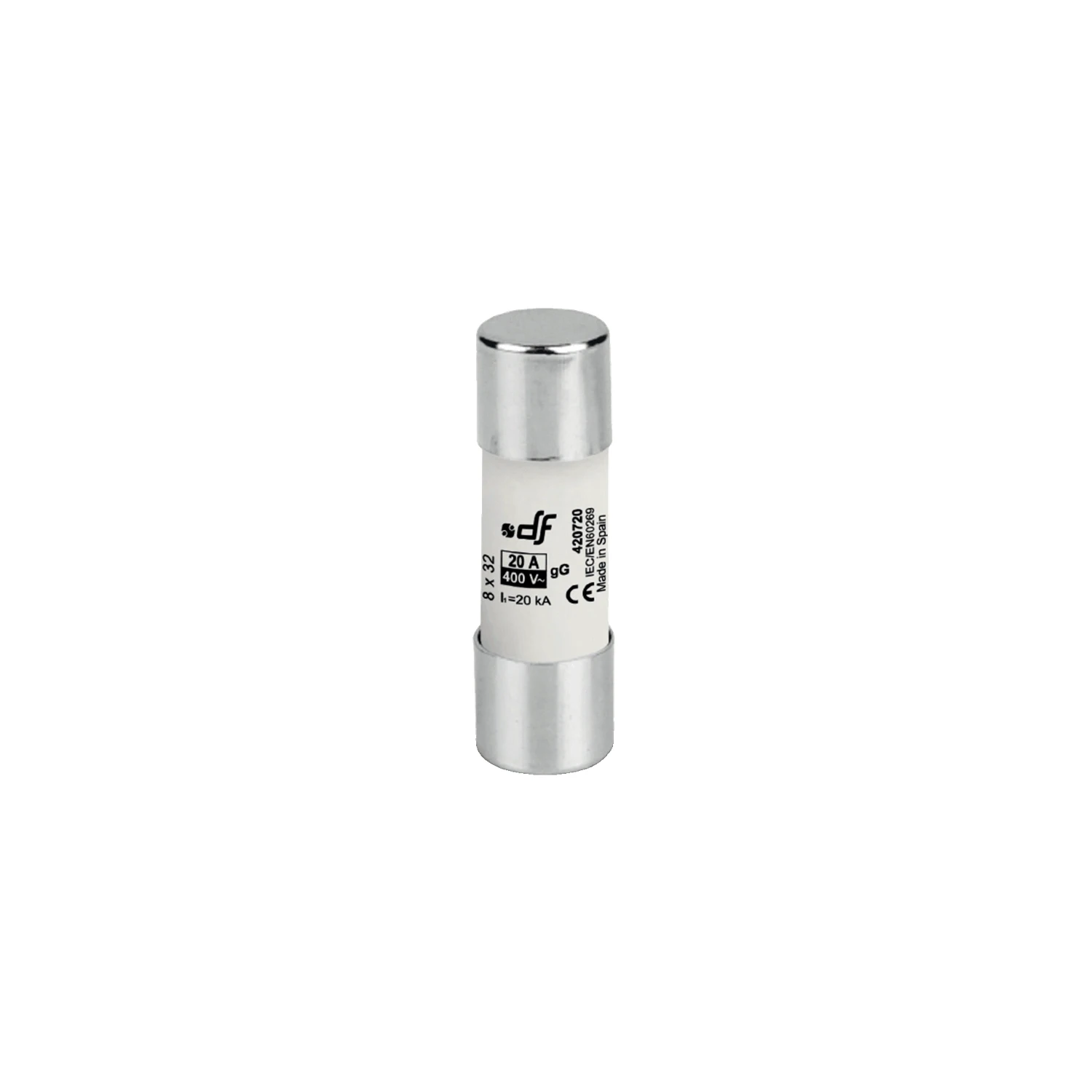

Cylindrical gG Fuse Link 20A 8.5x31.5mm 400V AC IEC EN 60269

Photo is representative

Cylindrical gG Fuse Link 20A 8.5x31.5mm 400V AC IEC EN 60269

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 420520
GTIN —
Stock status: In stock

priced individually

Net price: £0.95

Gross price

£1.14

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

20A gG cylindrical fuse link in 8.5x31.5mm format. For general overcurrent and short-circuit protection of cables, power lines and equipment.

Ceramic body with silver-plated copper contacts. Fits standard 8x32 cylindrical fuse holders and carriers.

  • Rated voltage: 400V AC +10%
  • Breaking capacity: 120kA
  • Operating class: gG
  • Frequency: 42–62Hz
  • Standards: IEC/EN 60269-1, IEC/EN 60269-2
Specifications

Rated Current

20A

Rated Voltage

400V +10%

Breaking Capacity

120kA

Operating Class

gG

Rated Frequency

42–62Hz

Dimension A

8.5mm

Dimension B

31.5mm

Dimension C

6.3mm

Body Material

Ceramic

Contacts

Silver plated copper

Power Dissipation at 20A

2.0W

Operating Temperature

-40°C to 80°C

Weight

4.1g

Standards

IEC/EN 60269-1, IEC/EN 60269-2
