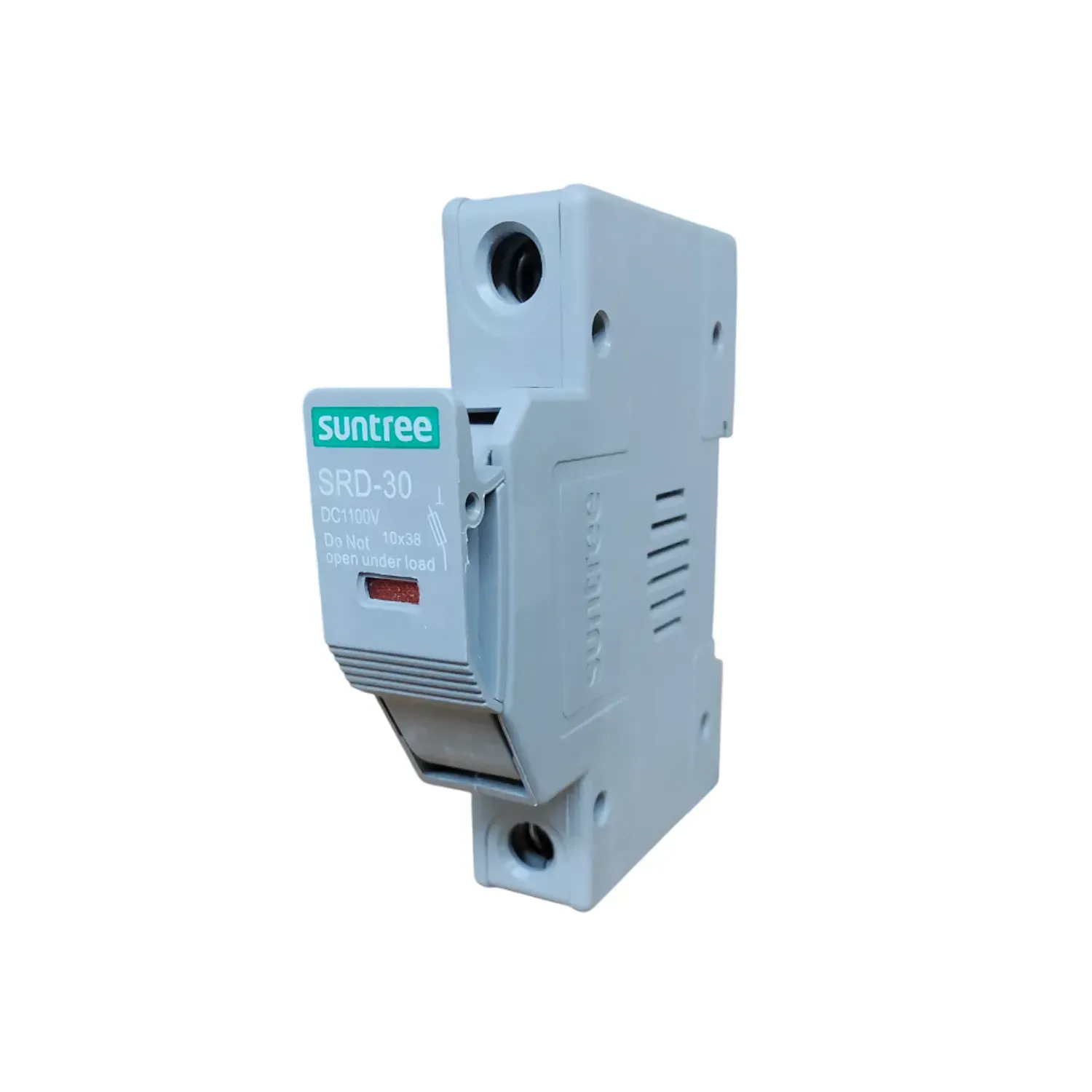

Suntree, Fuse holder, 1-30A, 1100Vdc, 30kA

Photo is representative

Suntree 1100V DC-PV0 Photovoltaic (PV) Fuse Holder (1-30A, 30kA) IP20

The Suntree DC-PV0 Photovoltaic Fuse Holder is a rail-mountable component designed for the protection of PV circuits. It is rated for a maximum operating voltage of 1100Vdc and handles currents from 1 to 30A. The device has a high short-circuit interrupting capacity of 30kA.

This fuse holder is designed for use with 10×38 gPV fuse-links (Photovoltaic Fuses) and has a maximum power dissipation of 4W. It features an IP20 protection rating. Wiring requires 75°C CU wire only with a wire range of 1−10mm^2. The recommended terminal screw torque for secure connection is 1.8−2.3Nm. Safety precautions include: Do not open under load and Do not connect or disconnect under load.

Product Information

Stock Code SRD30
MPN
GTIN
Stock status: In stock
Price: £5.79
incl. VAT, 20% priced individually

Product Features

Max Voltage 1100Vdc
Current Rating 1 - 30A
Breaking Capacity 30kA
Fuse TypeFuse Type 10 x 38 gPV fuse link
Max Dissipation 4W
Wire Range 1−10sqmm
