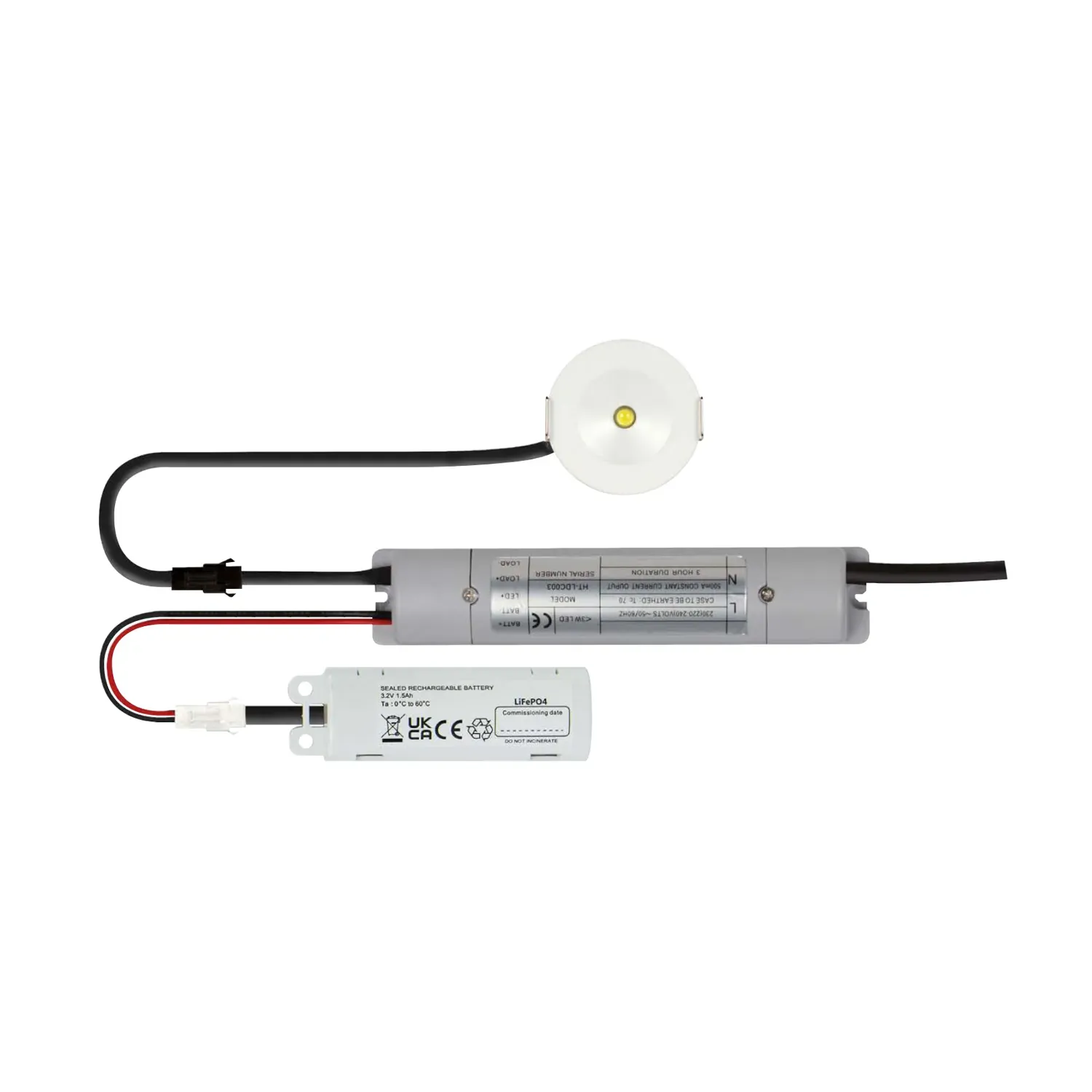

Duceri 3W LED IP20 Non-Maintained Emergency Downlight Lithium Switchable Self-Test D2402SMF

Photo is representative

Duceri 3W LED IP20 Non-Maintained Emergency Downlight Lithium Switchable Self-Test D2402SMF

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code D2402SMF
GTIN
Stock status: Out of stock

priced individually

Net price: £23.92

Gross price

£28.71

Recessed non-maintained emergency downlight from Duceri. Fits a 35mm cutout — suited to corridors and circulation areas where a low-profile fitting is needed.

Runs on a 3.2V 1800mAh LiFePO4 battery with a 3-hour duration. Switchable self-test facility can be enabled or disabled on site. Comes with three interchangeable bezels: white (RAL 9003), silver (RAL 9006), and black (RAL 9012).

  • 3W high power LED, 138lm emergency output, 5500K
  • 35mm cutout, module dimensions 150.5 x 29.5 x 29mm
  • 220–240V AC supply, 3W consumption
  • Green LED status indication
  • Replacement battery: D001ES
Specifications

Supply Voltage

220–240V AC

Frequency

50Hz

Power Consumption

3W

Current

0.017A

LED Type

High Power 3W LED

Colour Temperature

5500K

Emergency Luminous Flux

138lm

Emergency Operation

Non-Maintained

Battery Specification

3.2V 1800mAh LiFePO4

Battery Duration

3 hours

Replacement Battery

D001ES

Self-Test

Switchable — enable or disable on site

Status Indication

Green LED

IP Rating

IP20

Operating Temperature

0 to +45°C

Mounting

Recessed

Cutout

Ø35mm

Bezel Dimensions

Ø43 x 23mm

Emergency Module Dimensions

150.5 x 29.5 x 29mm

Battery Dimensions

65 x Ø17.5mm

Materials

Aluminium bezel, polycarbonate plastic housing

Colours

White (RAL 9003), Silver (RAL 9006), Black (RAL 9012)

Weight

0.25kg

Warranty

5 years
