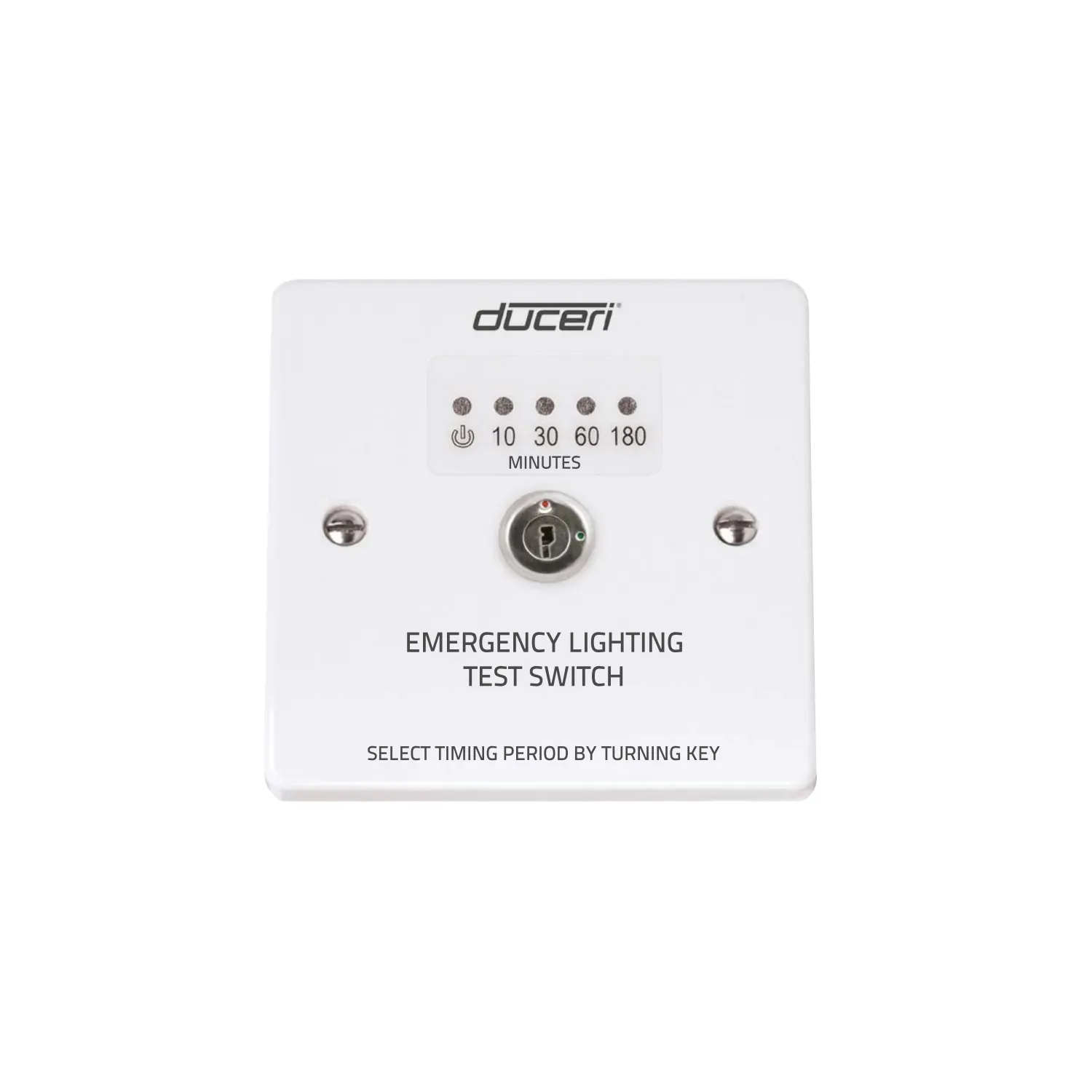

Duceri Emergency Light Test Switch Key Type 230V 16A EMTS

Photo is representative

Duceri Emergency Light Test Switch Key Type 230V 16A EMTS

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code EMTS
GTIN
Stock status: In stock

priced individually

Net price: £33.28

Gross price

£39.93

Key-operated test switch for emergency lighting duration testing in accordance with BS 5266. Flush or surface mount to suit existing wiring accessories positions.

Four pre-programmed test intervals selectable via key. LED indication shows duration test in progress. Optional audio buzzer signals test completion.

  • Supply: 220–240V AC, 50Hz
  • Output relay: 240V AC @ 16A (6A fluorescent / 10A incandescent)
  • Test intervals: 10, 30, 60 and 180 minutes
  • Dimensions: 86 x 86 x 33mm
  • Antimicrobial urea construction
Specifications

Supply Voltage

220 - 240V AC

Frequency

50Hz

Output Relay Rating

240V AC @ 16A

Fluorescent Load Rating

6A

Incandescent Load Rating

10A

Test Intervals

10, 30, 60 and 180 minutes

Activation

Key type

LED Indication

Yes — duration test in progress

Audio Buzzer

Optional — test completion alert

Mounting

Flush or Surface

Dimensions

86 x 86 x 33mm

Material

Antimicrobial urea

Compliance

BS 5266

Warranty

5 years
