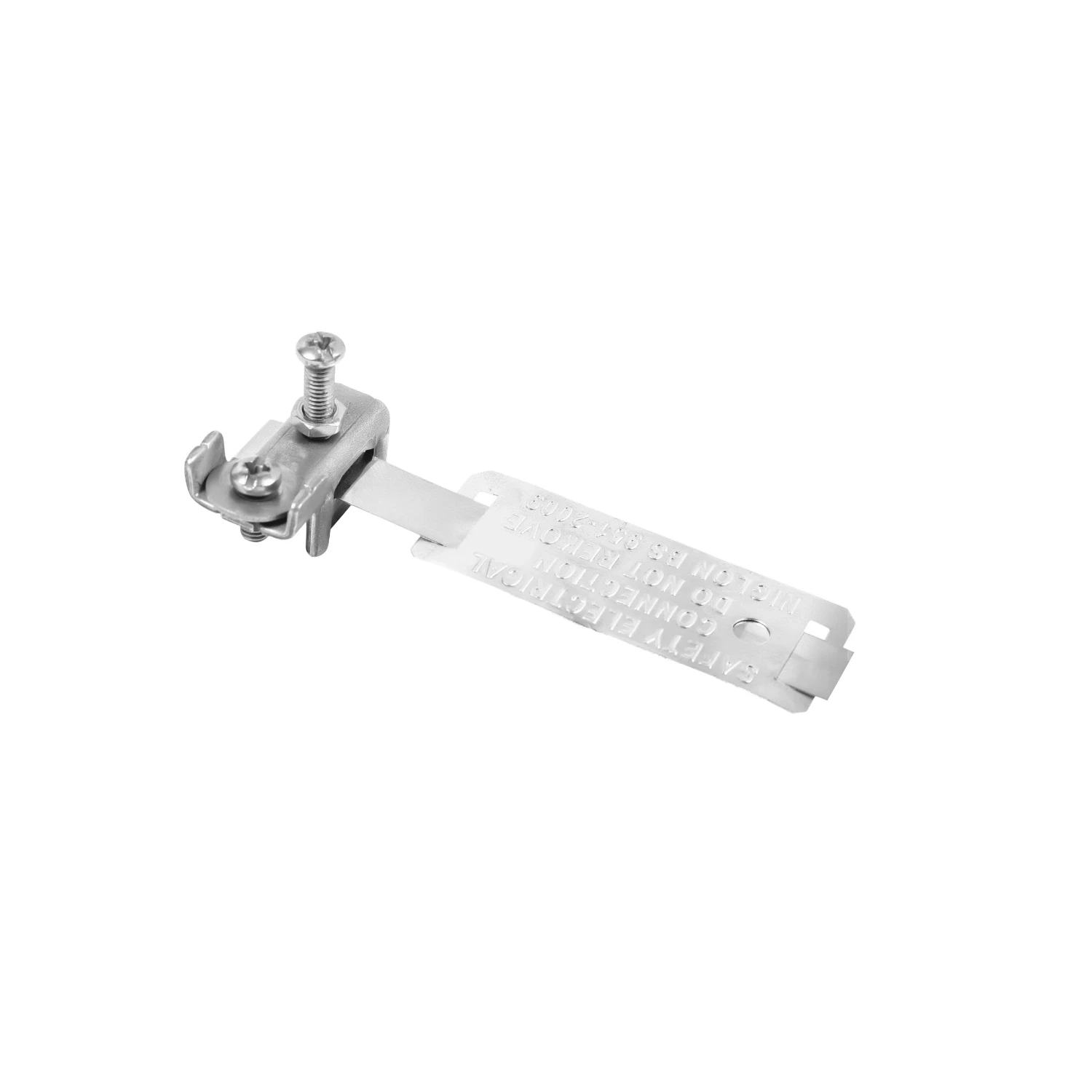

Earthing Clamp 32-50mm Niglon AEC4-2 Dry Conditions
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
AEC4/2
GTIN
—
Stock status:
In stock
priced individually
More arriving soon
Net price: £2.37
Gross price
£2.85
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
The Niglon AEC4-2 is a dry condition pipe earthing clamp designed for use in standard indoor earthing applications. Compliant with BS 951, it is suitable for pipes ranging from 32mm to 50mm in diameter and accepts a maximum conductor size of 1 x 10mm² (A-D).
The clamp body measures 25 x 37 x 13mm (H x W x D) and is supplied with a 12 x 230mm strap, providing a secure and reliable earth connection.
- Pipe Diameter: 32-50mm
- Maximum Conductor: 1 x 10mm²
- Standard of Compliance: BS 951
- Clamp Dimensions: 25 x 37 x 13mm (H x W x D)
- Strap Dimensions: 12 x 230mm (W x L)
