ECI Lighting Campus V4 5ft CCT Selectable Multi-Watt LED Batten 58W 240V White

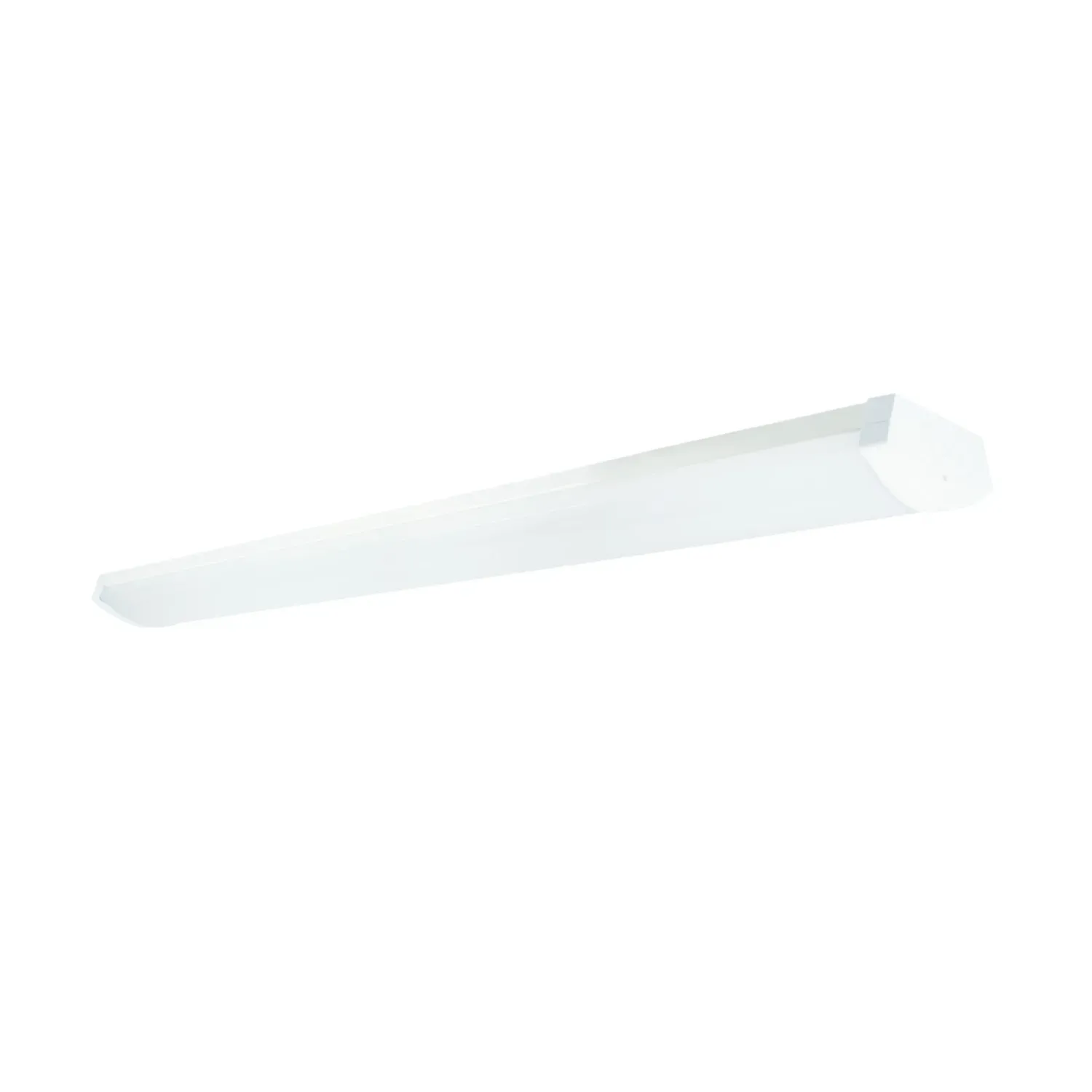

Photo is representative

ECI Lighting Campus V4 5ft CCT Selectable Multi-Watt LED Batten 58W 240V White

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code PXCAMPCCTV4
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £52.51

Gross price

£63.01

5ft surface-mount LED batten from ECI’s Campus V4 range. Steel body with PC diffuser. CCT and wattage are both field-selectable — switch between 32W, 41W, 50W, or 58W, and dial in 3000K, 4000K, or 6000K on site.

UGR<19 makes it suited to schools, offices, and similar environments where glare control matters.

  • Output up to 7250lm at 58W, up to 125Lm/W
  • L70 rated to 65,000h (B50)
  • 1490mm length, steel body, PC diffuser, RAL 9016 white
  • 220-240V 50/60Hz, IP20, IK04
Specifications

Wattage Options

32W / 41W / 50W / 58W (multi-watt selectable)

Voltage

220-240V

Frequency

50/60Hz

CCT

3000K / 4000K / 6000K selectable

Luminous Flux (58W)

6960lm / 7250lm / 7134lm (3000K/4000K/6000K)

Luminous Flux (50W)

6000lm / 6250lm / 6150lm (3000K/4000K/6000K)

Luminous Flux (41W)

4920lm / 5125lm / 5043lm (3000K/4000K/6000K)

Luminous Flux (32W)

3840lm / 4000lm / 3936lm (3000K/4000K/6000K)

Luminous Efficacy

120-125 Lm/W

CRI

≥80

SDCM

≤5

UGR

<19

Beam Angle

120°

LED Type

SMD 2835, 384pcs, Epistar chip

Maintained Luminous Flux

50,000h (L80B10) / 65,000h (L70B50)

IP Rating

IP20

IK Rating

IK04

Dimensions

1490 x 200 x 81mm

Weight

2.35kg

Body Material

Steel body, PC diffuser

Colour

White (RAL 9016)

Light Control

On/Off

Warranty

5 years
