TimeGuard 230V Frost Thermostat with Tamper Proof Cover

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code TRT031N
GTIN
Stock status: 6 in stock

priced individually

Net price: £32.84

Gross price

£39.41

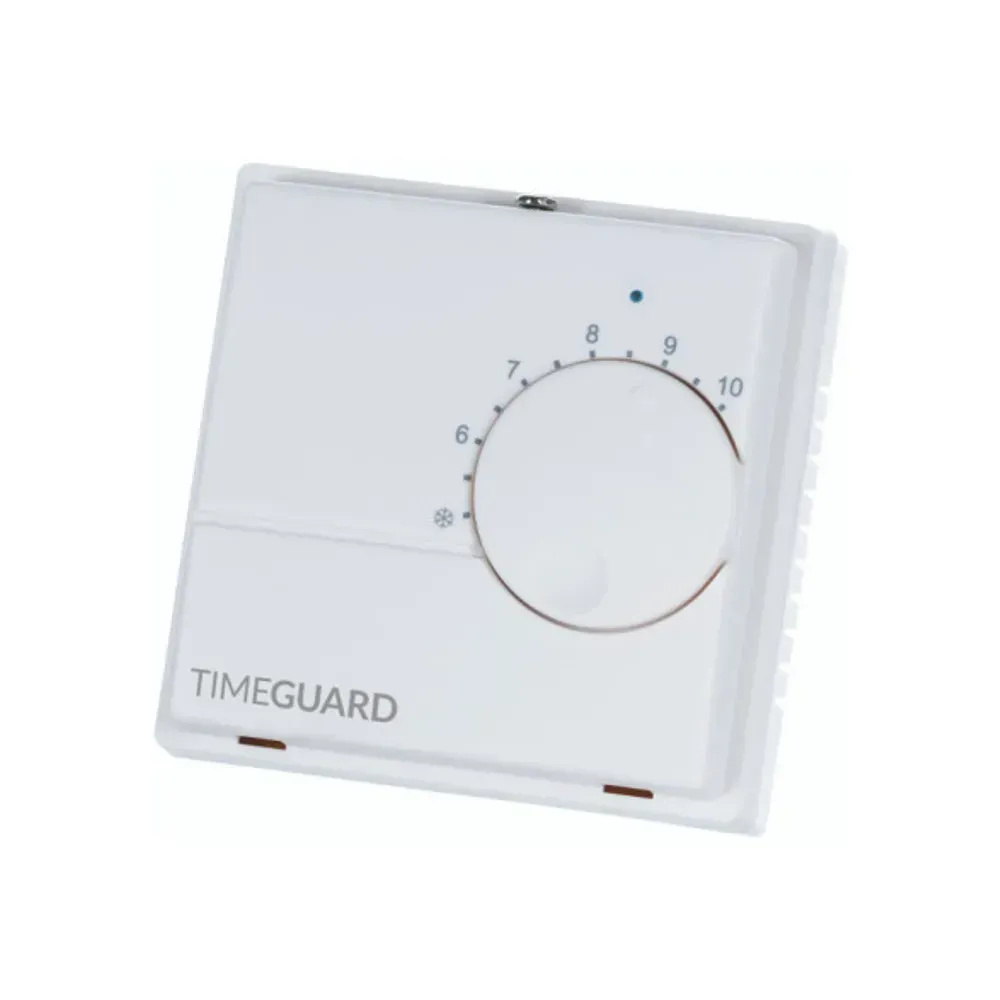

The TRT031N electronic frost thermostat provides reliable frost protection for pipes by maintaining temperatures between 5°C and 10°C. It features an easily adjustable dial with a clear temperature scale and a tamper proof cover to safeguard settings. With PID control and selectable temperature swing of 0.5°C or 1°C, it ensures precise temperature regulation.

  • Operating Voltage: 230V AC, 50Hz
  • Mounting: Surface mount with wall plate included
  • Switch Type: Single pole, single throw (SPST)
  • Connection: 3-wire system
  • Temperature Range: 5°C to 10°C, user adjustable

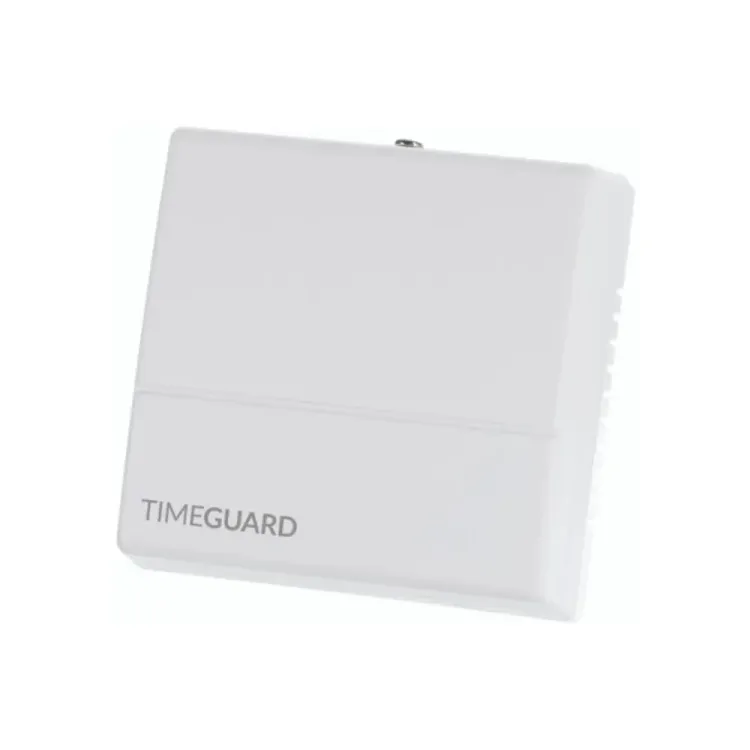

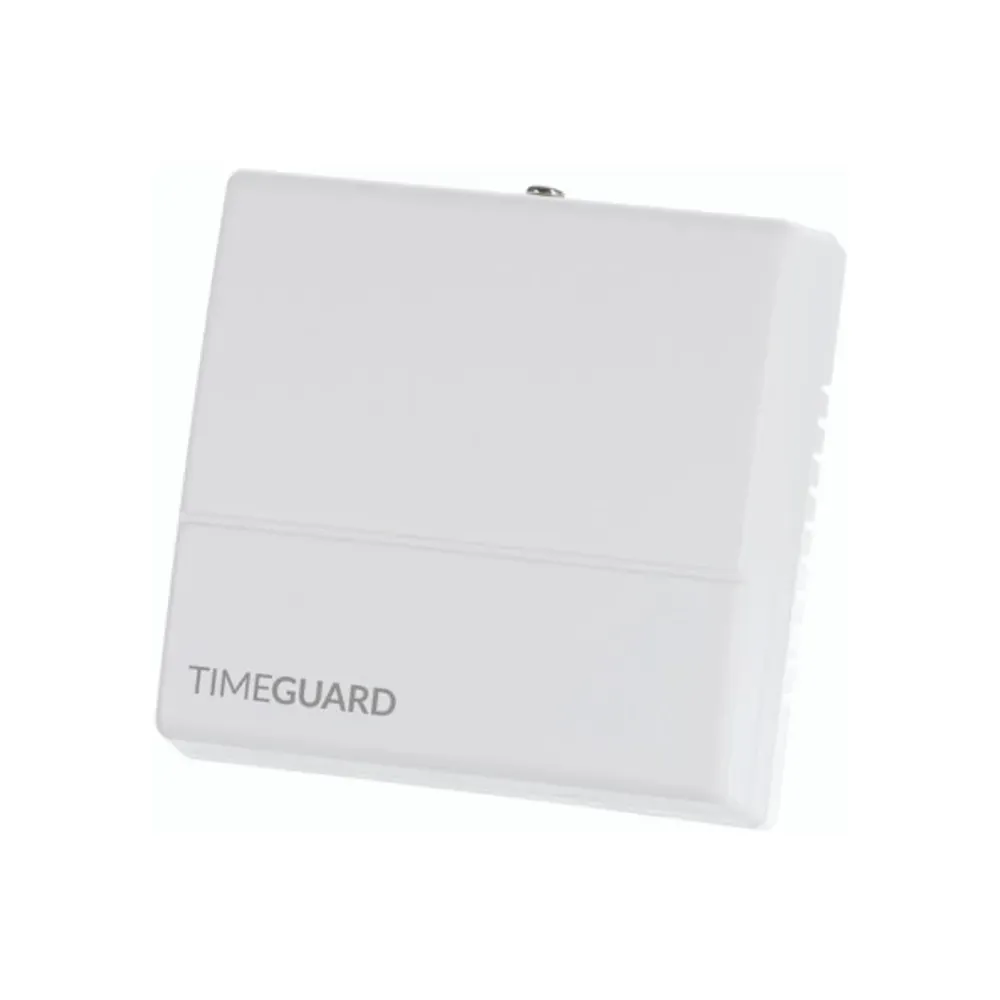

  • Durable Construction: White polycarbonate body with tamperproof cover
  • Safety Class: Class II Earth Rating

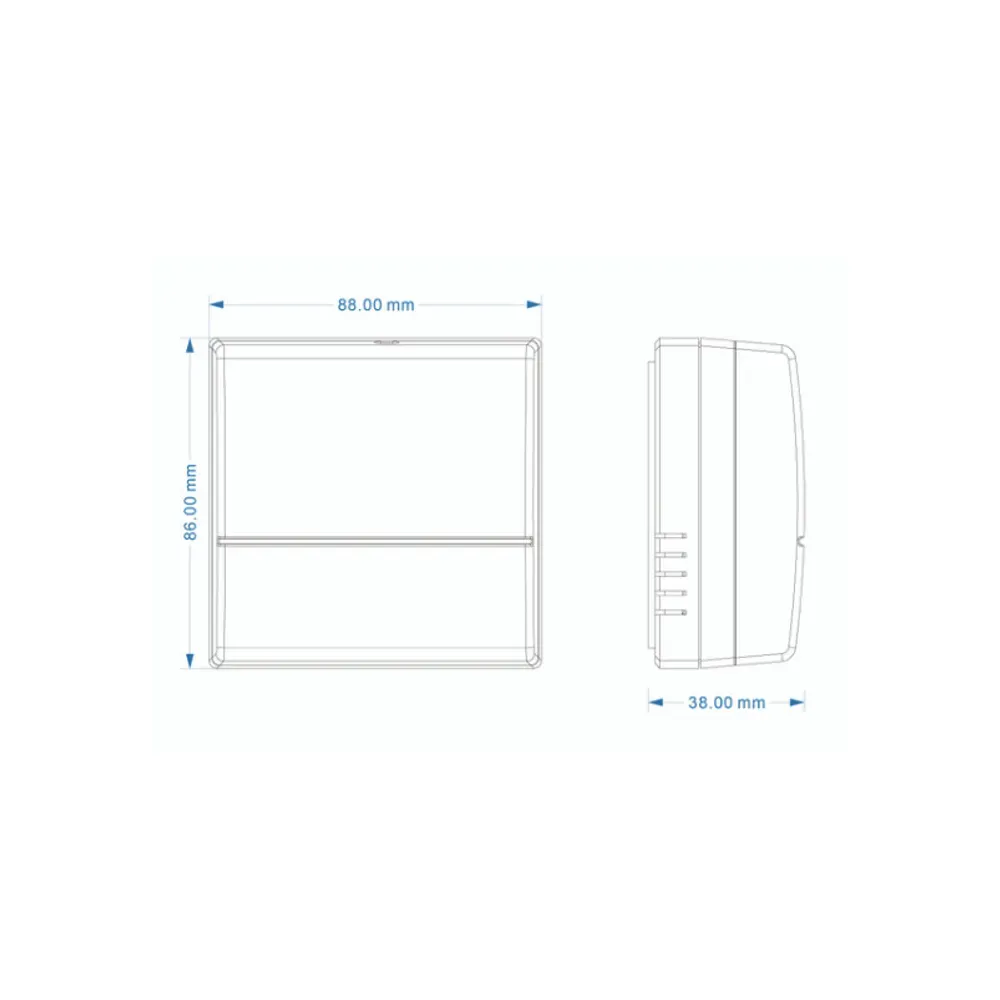

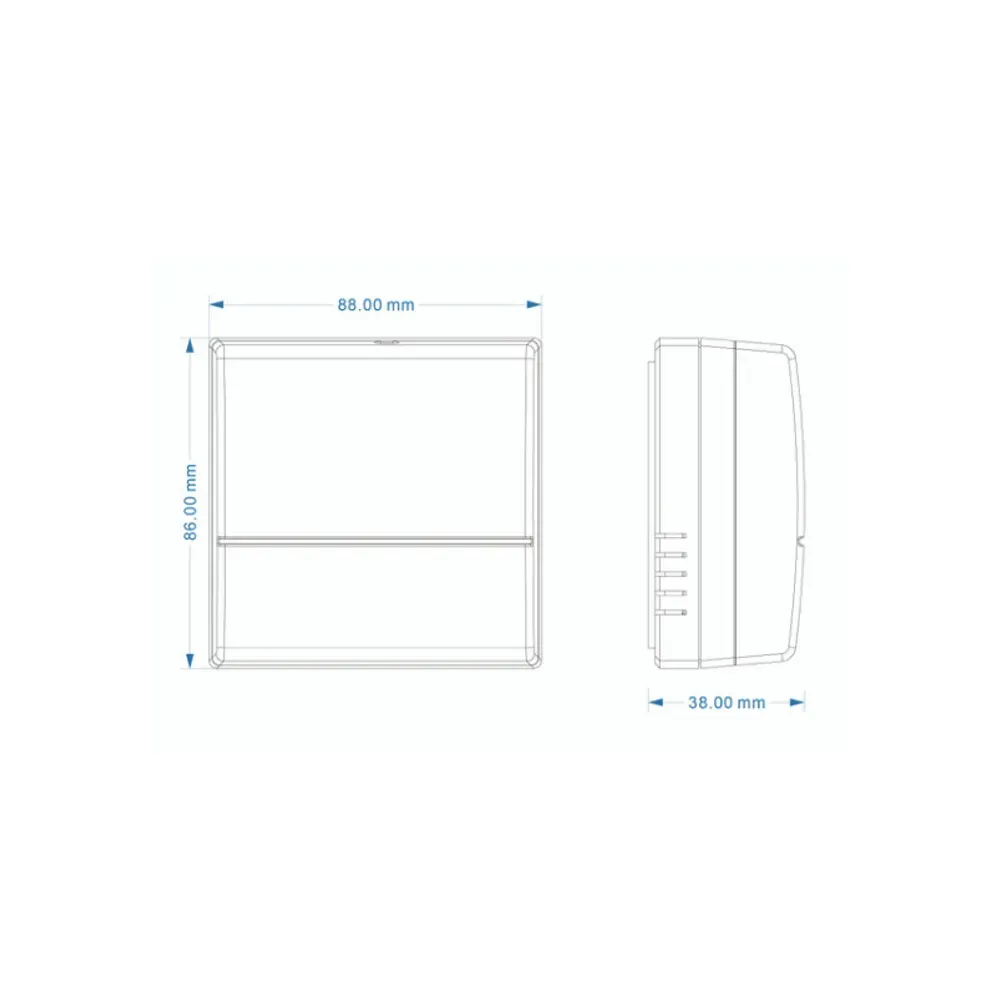

  • Dimensions: 86mm (H) x 88mm (W) x 38mm (D)
  • Suitable for Gas or Oil Boilers with configurable temperature swing
  • Includes: Tamperproof cover
Specifications

Switch Type

Single Pole Single Throw (SPST)

Current Rating

6 (2) A

Dimensions (mm)

Height 95 Width 95 Depth 35

Operating Voltage

220-240V AC - 50HZ

Temperature Swing

1°C or 0.5°C

Micro Disconnection

Type 1.B

Set Temperature Range

5°C to 10°C

ErP Product Class Labelling

Class I

Operating Temperature Range

0°C to 50°C

Control Action EC Directives

Conforms to Latest Directives
