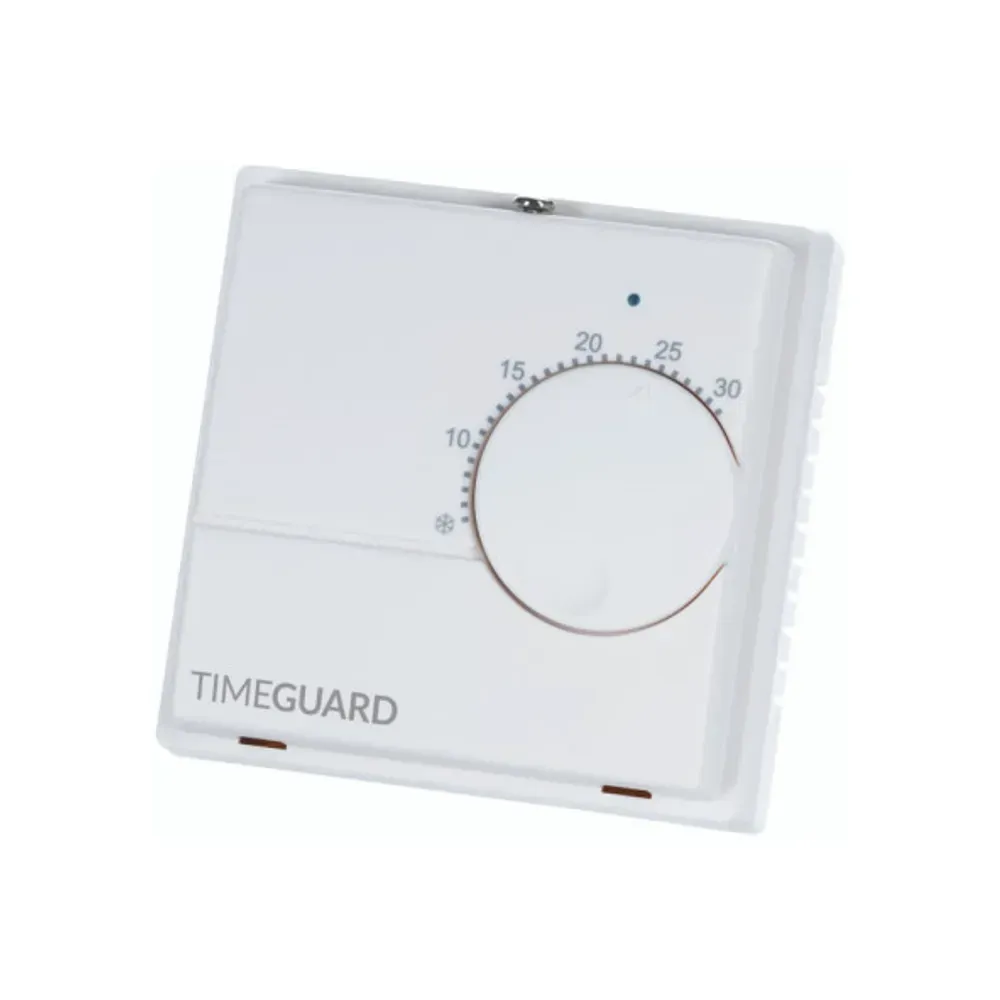

TimeGuard 230V AC 50Hz Tamper Proof Surface Mount Room Thermostat
The TRT032N tamper proof room thermostat offers reliable temperature control for residential or commercial heating systems. Featuring an easily adjustable dial with a clear temperature scale and a tamper proof cover to protect settings, it supports surface mounting with included wall plate.
- Operating Voltage: 230V AC, 50Hz
- Temperature Range: User adjustable 5°C to 30°C
- Control Type: Dial with PID control and temperature swing adjustment
- Switch Type: Single Pole Single Throw (SPST)

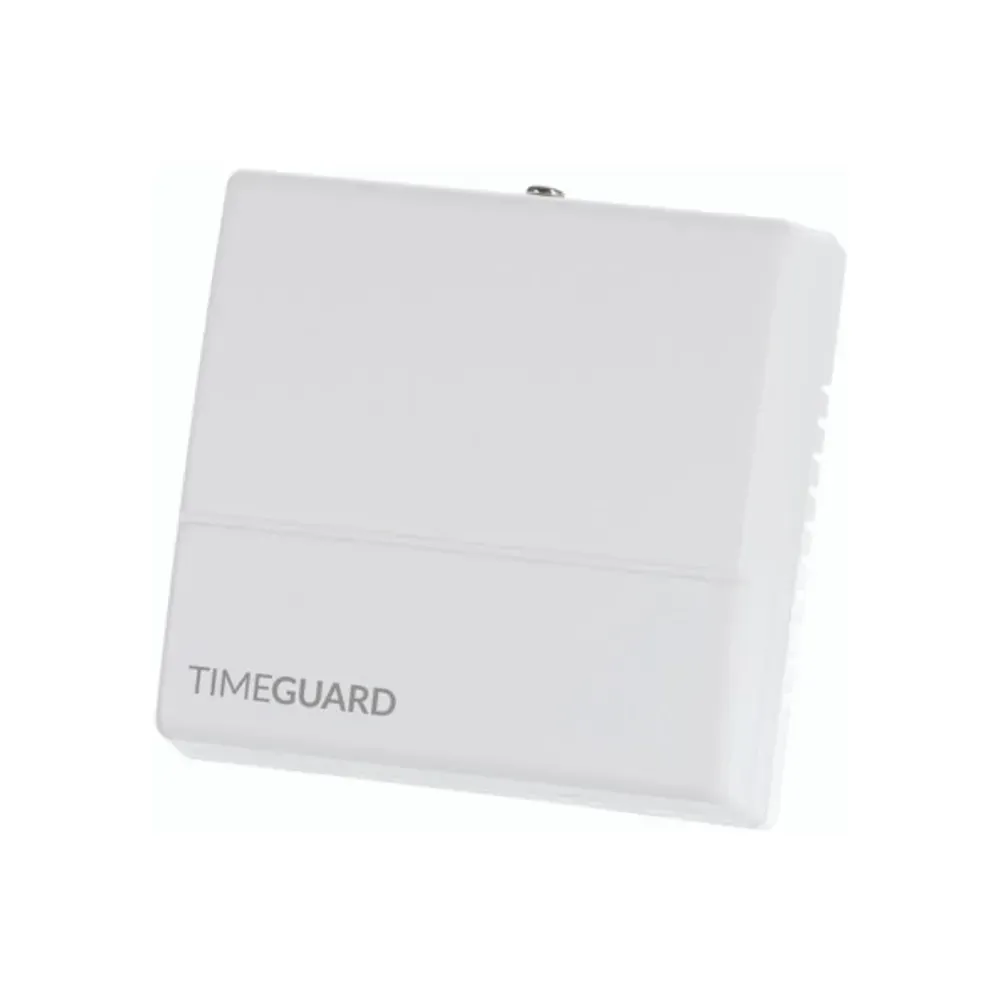

- Durable Construction: White polycarbonate body with tamper proof cover
- Installation: Surface mount design for easy installation
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
SKU
TRT032
-
Switch Type
Single Pole Single Throw (SPST)
-
Control Action
EC Directives: Conforms to Latest Directives
-
Current Rating
6 (2) A
-
Dimensions (mm)
Height 95 Width 95 Depth 38
-
Operating Voltage
220-240V AC - 50HZ
-
Temperature Swing
1°C or 0.5°C
-
Set Temperature Range
5°C to 10°C
-
Operating Temperature Range
0°C to 50°C
