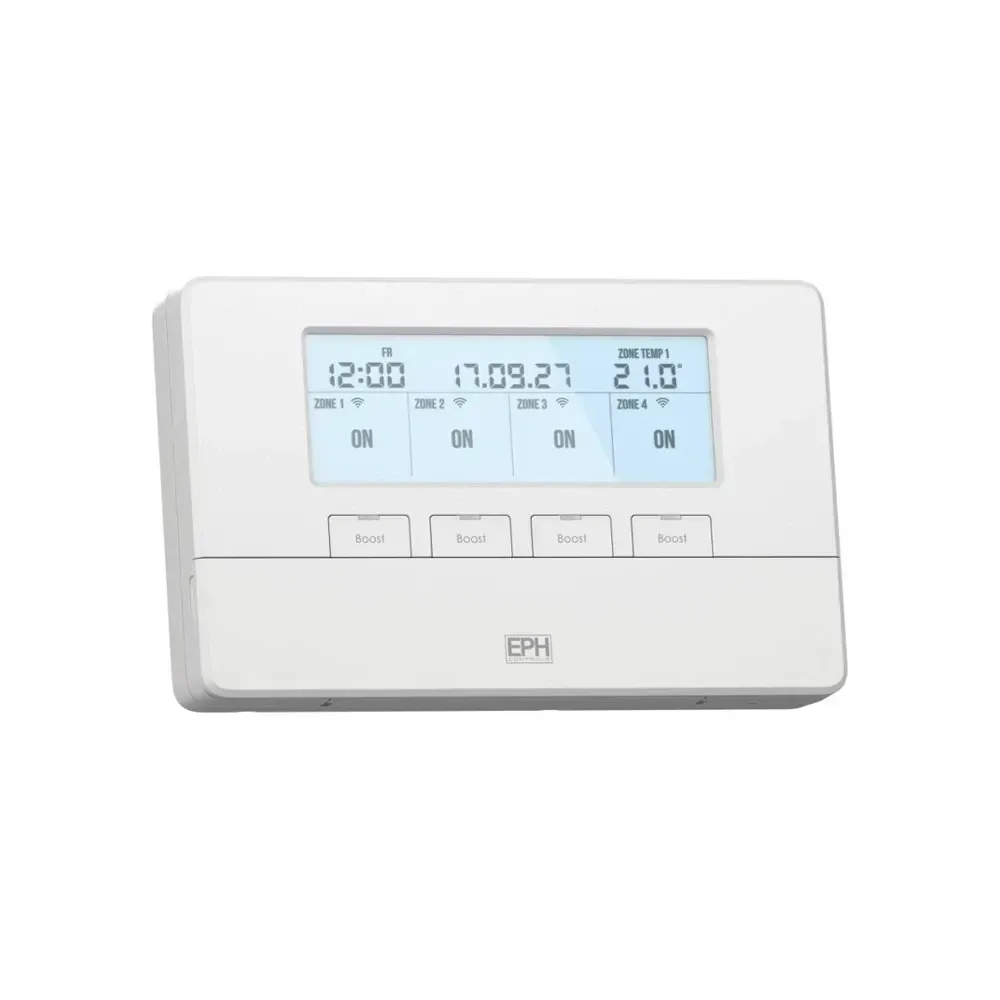

EPH 4 Channel Digital RF Programmer

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

EPH 4 Channel Digital RF Programmer

The EPH 4 Channel Digital RF Programmer is a versatile solution for connecting with 4 RF thermostats, compatible with the EMBER PS system. It features a switch output of 230Vac SPST, power supply of 230Vac, and ambient temperature range of 0 to 50 deg C. With dimensions of 161 x 100 x 31 mm, it offers a contact rating of 3(1)A 230Vac and a program memory of 5 years. Equipped with an NTC 100K temperature sensor, white backlight, and IP20 rating, this programmer uses a 3VDC lithium LIR2032 & CR2032 battery and follows British System Standard for the backplate. It has a pollution degree of 2 and is resistant to voltage surges up to 2000V. The software class is Class A, operating at a frequency of 868.35 MHz.

Stock Code: R47RF
Running low
Price 315.77 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Battery

    3VDC Lithium LIR2032 & CR2032

  • Backlight

    White

  • Backplate

    British System Standard

  • Frequency

    868.35 MHz

  • IP Rating

    IP20

  • Dimensions

    161 x 100 x 31 mm

  • Power Supply

    230Vac

  • Switch Output

    230Vac SPST

  • Contact Rating

    3(1)A 230Vac

  • Program Memory

    5 Years

  • Software Class

    Class A

  • Pollution Degree

    2 (Resistance to voltage surge 2000V)

  • Temperature Sensor

    NTC 100K

  • Ambient Temperature

    0 - 50 deg C

  • mpn

    R47RF

Documents

Brand

EPH Controls
