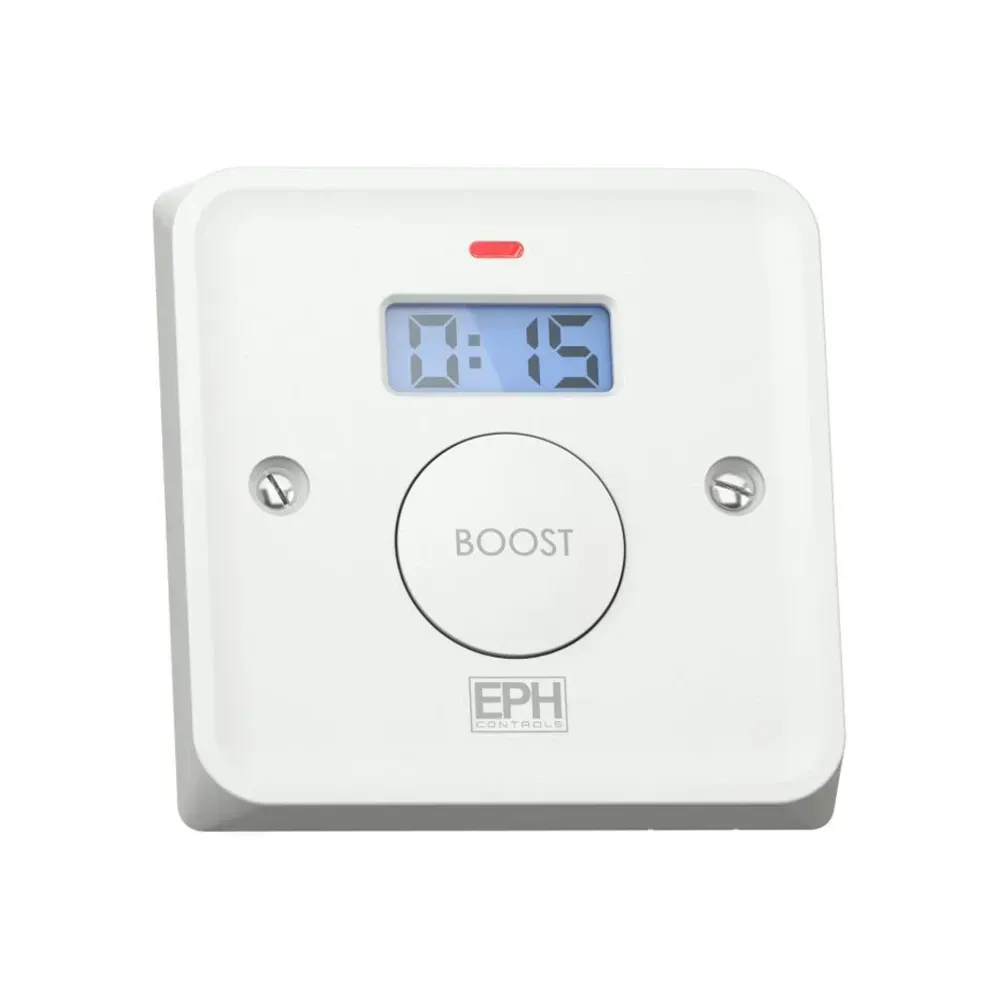

Versatile boost timer for various applications

Photo is representative

EPH Boost Timer Pro BST3

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code BST3
GTIN
Stock status: In stock

priced individually

Net price: £29.36

Gross price

£35.23

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

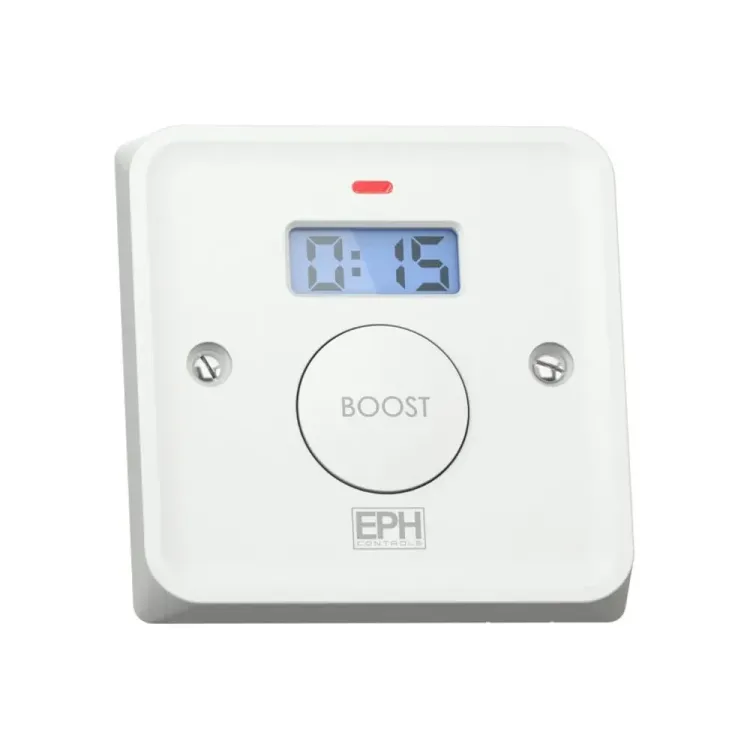

The EPH BST3 Boost Timer Pro is a 13A electronic boost timer designed for switching electrical appliances up to 3kW. Selectable boost periods of 15 minutes, 30 minutes, 1 hour, 2 hours, or 3 hours are activated by pressing the boost button. An LCD screen with blue backlight displays the countdown, and a red LED indicates when the boost is active. Suitable for immersion heaters, panel heaters, boilers, and lighting. Fits standard single gang back boxes with a minimum depth of 25mm.

Specifications

Contact Rating

13A 230VAC 50Hz

Resistive Load

Up to 3kW

Filament/Halogen Lighting

1000W

Fluorescent Lighting

500W

LED Lighting

100W

Boost Periods

15 min / 30 min / 1 hr / 2 hrs / 3 hrs

Power Supply

230VAC 50Hz

IP Rating

IP20

Ambient Temperature

0 to 45°C

Dimensions

87 x 87 x 32mm

Flush Mounted Dimensions

87 x 87 x 13mm

Terminals

Max 2.5mm² cable

Shock Protection

Class 1

Case Material

ABS UL94V0

Classification

Type 1A Action (RL1)

Pollution Degree

2

Backlight

Blue LCD

Timing Accuracy

Real Time Clock

Design Standard

EN 60730-2-7

Rated Impulse Voltage

2500V (EN60730)

Recommended Protection

16A RCBO or 16A MCB & 100mA RCD
