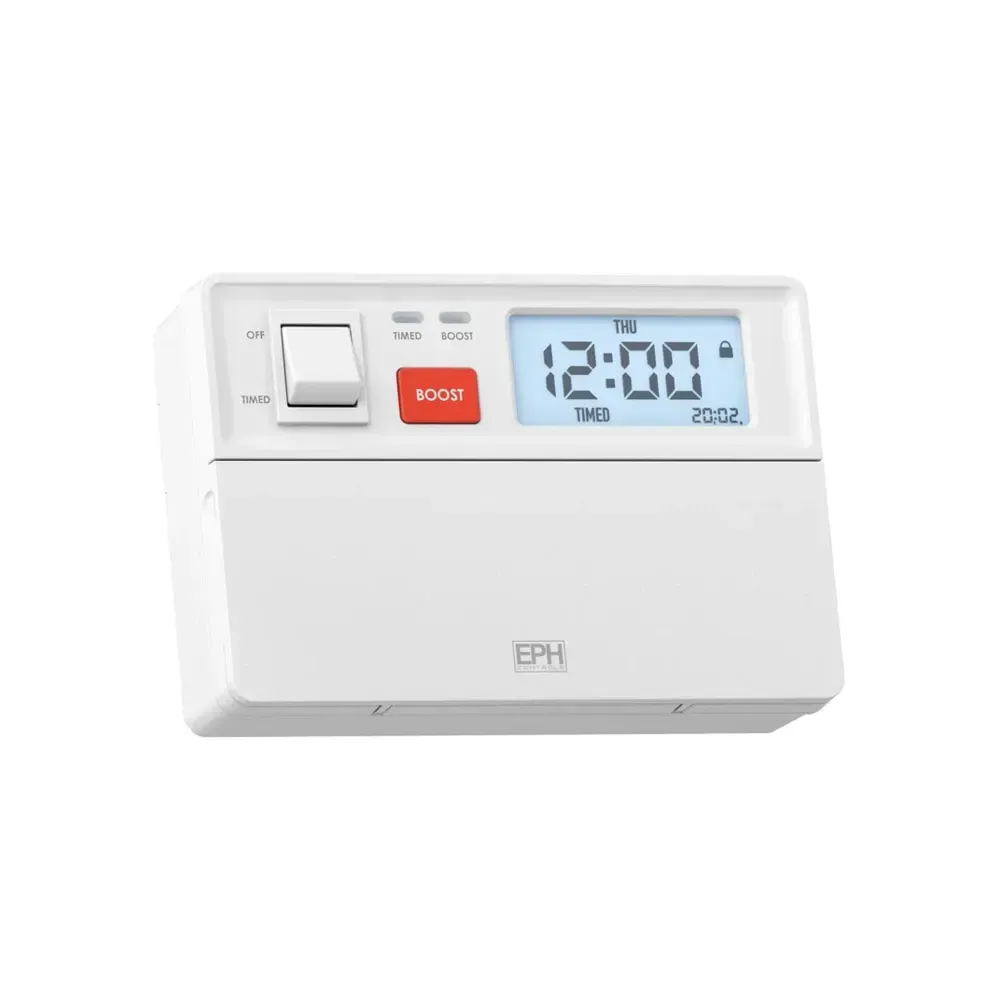

EPH IMC Digital Immersion Heater Controller with 7-Day Programming and Boost Function
The EPH IMC Digital Immersion Controller is an advanced time switch designed to manage immersion heaters efficiently, offering flexible programming options and enhanced control for energy management. This controller allows users to program up to three ON/OFF periods per day using selectable modes: 24-Hour, 5⁄2 Day, or 7 Day individual programming.
The IMC features a dedicated BOOST button for instant hot water, activating the load for 30 minutes, 1 hour, 2 hours, or 3 hours before automatically reverting to the timed program. The unit operates on a 230V∼,50Hz supply and has a maximum contact rating of 13A resistive. It is designed for easy installation, supplied with its own surface mounting box, and can be mounted over a single or double gang flush wall box. Additional security and convenience features include a Holiday Function (to set the controller to OFF for a duration) , a Keypad Lock, and an optional PIN Lock.
