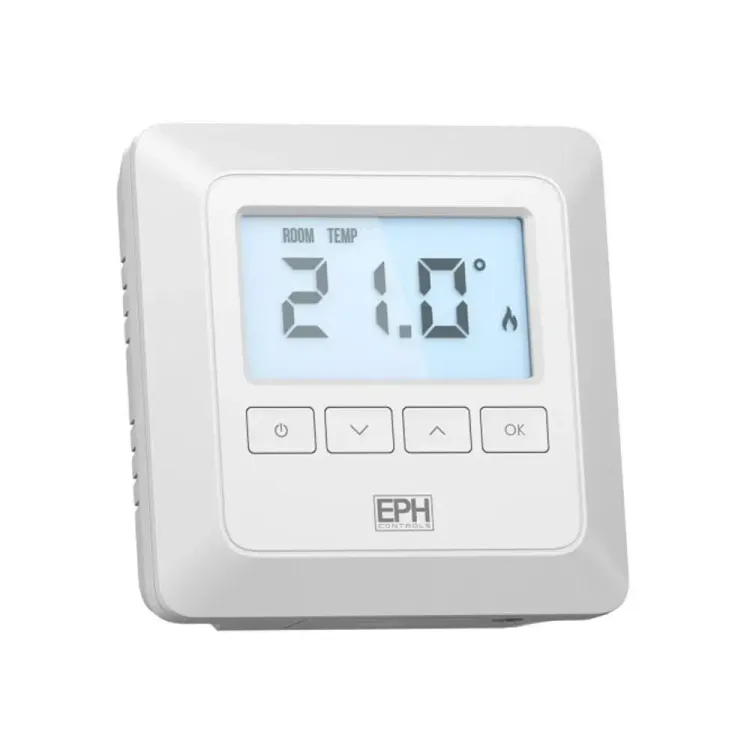

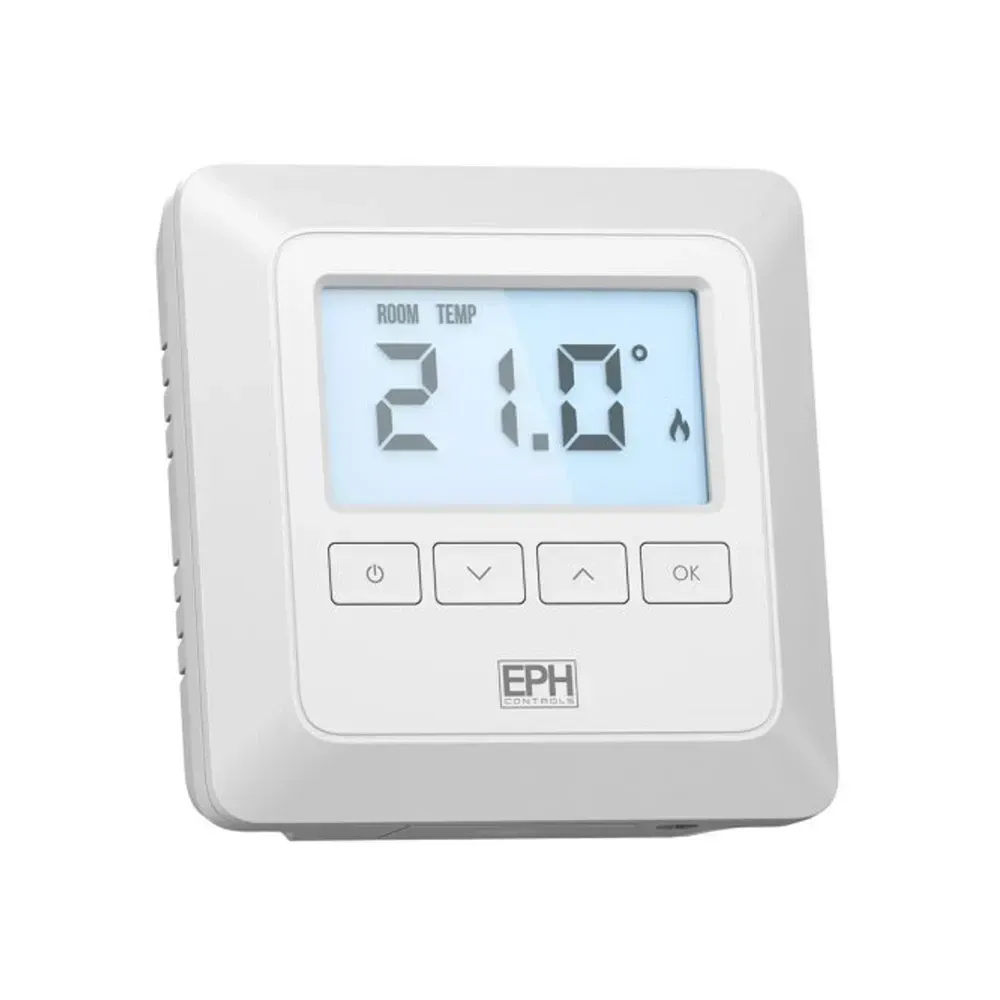

EPH Battery Operated Digital Room Thermostat, Non Programmable
The EPH Battery Operated Digital Room Thermostat is a non-programmable device designed for accurate temperature control in residential applications. It features a lockable keypad, limitable temperature range, and adjustable differential. With dimensions of 91 x 91 x 26mm, this thermostat operates on 2 x AA Alkaline Batteries and has a temperature range of 5 to 35 deg C. It is equipped with a white backlight, NTC 100K internal temperature sensor, and has an IP20 rating.
Online:
Product Features
Contacts | Volt Free |
---|---|
Backlight | White |
IP Rating | IP20 |
Dimensions | 91 x 91 x 26mm |
Contact Rating | 8(3)A 230Vac |
Automatic Action | 1C |
Pollution Degree | 2 |
Power Consumption | Operating 30mW, Standby <0.5mW |
Temperature Range | 5 - 35 deg C |
Power Supply / Input | 2 x AA Alkaline Batteries |
Ambient Admissible Humidity | 5-95% RH |
Internal Temperature Sensor | NTC 100K |
mpn | CRT2 |
