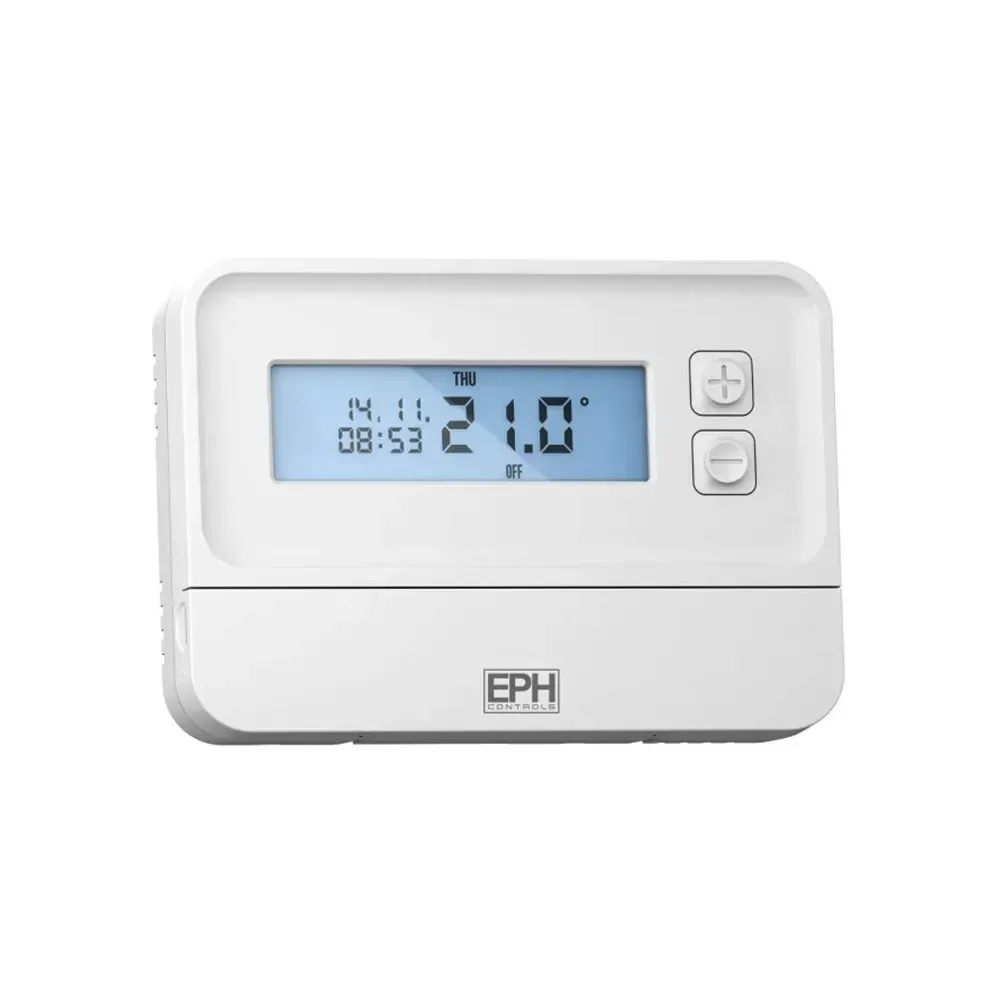

EPH Digital Room Thermostat, Programmable, Mains
The EPH Digital Room Thermostat is a programmable device suitable for controlling 1 heating zone. It features, Optimum Start, TPI, and On/Off control modes. With a power supply of 200 - 240 Vac and a temperature control range of 5 - 35 deg C, this thermostat offers precise temperature control. It is designed with user-friendly features such as a 24 Hr Clock, backlight auto adjustment, and Volt free contacts for efficient operation. The thermostat is Boiler Plus Compliant and comes with a 6 pin industry standard backplate for easy installation.
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Keypad
Unlocked
-
Battery
LIR2032
-
Program
5/2D
-
Contacts
Volt Free Contacts
-
Backlight
Auto
-
IP Rating
IP20
-
Clock Type
24 Hr Clock
-
Dimensions
140 x 99 x 30mm
-
Power Supply
200 - 240 Vac
-
Contact Rating
250Vac 7A
-
Daylight Saving
On
-
Frost Protection
OFF
-
Power Consumption
630 mW
-
Temperature Sensor
NTC 100K Ohm @ 25 deg C
-
Temp. Control Range
5 - 35 deg C
-
Program Memory Backup
3 Months
-
Admissible Ambient Humidity
5 - 95% RH
-
mpn
CP4M
