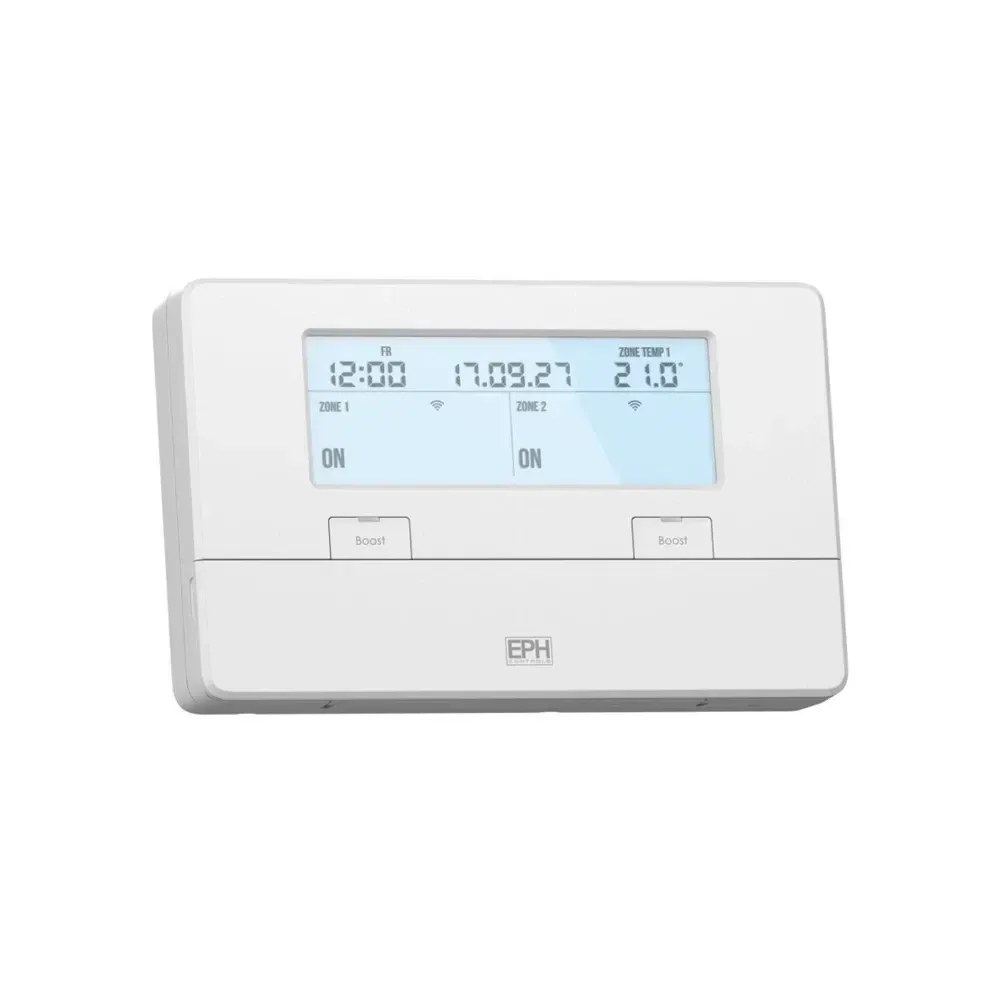

EPH Dual Channel Programmer with white backlight

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

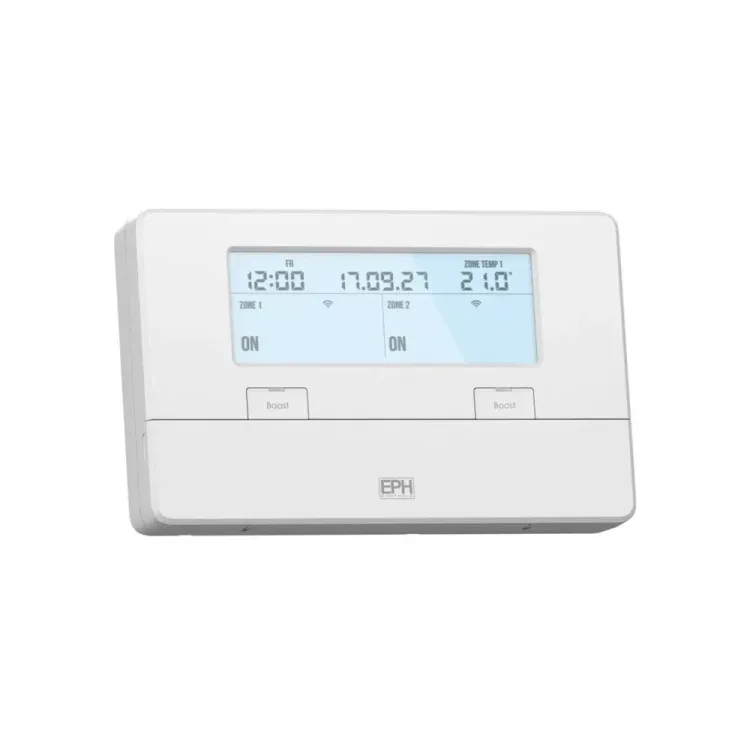

EPH Dual Channel RF Digital Programmer

The EPH Dual Channel RF Digital Programmer is a 2 zone RF programmer designed to connect with 2 RF thermostats. It is compatible with the EMBER PS system. Featuring a switch output of 230Vac SPDT, power supply of 230Vac, temperature range of 0 - 50 deg C, and compact dimensions of 161 x 100 x 31 mm, this programmer ensures precise control over heating systems. It also boasts a program memory of 5 years, NTC 100K temperature sensor, white backlight, IP20 rating, and uses a 3VDC Lithium LIR2032 & CR2032 battery.

Stock Code R27RF
In stock
Price 181.60 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Battery

    3VDC Lithium LIR2032 & CR2032

  • Backlight

    White

  • Backplate

    British System Standard

  • Frequency

    868.35 MHz

  • IP Rating

    IP20

  • Dimensions

    161 x 100 x 31 mm

  • Power Supply

    230Vac

  • Switch Output

    230Vac SPDT

  • Contact Rating

    3(1)A 230Vac

  • Program Memory

    5 Years

  • Software Class

    Class A

  • Pollution Degree

    2

  • Temperature Sensor

    NTC 100K

  • Ambient Temperature

    0 - 50 deg C

  • mpn

    R27RF

Documents

Brand

EPH Controls
