RF Digital Timeclock with SPDT Volt Free output

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

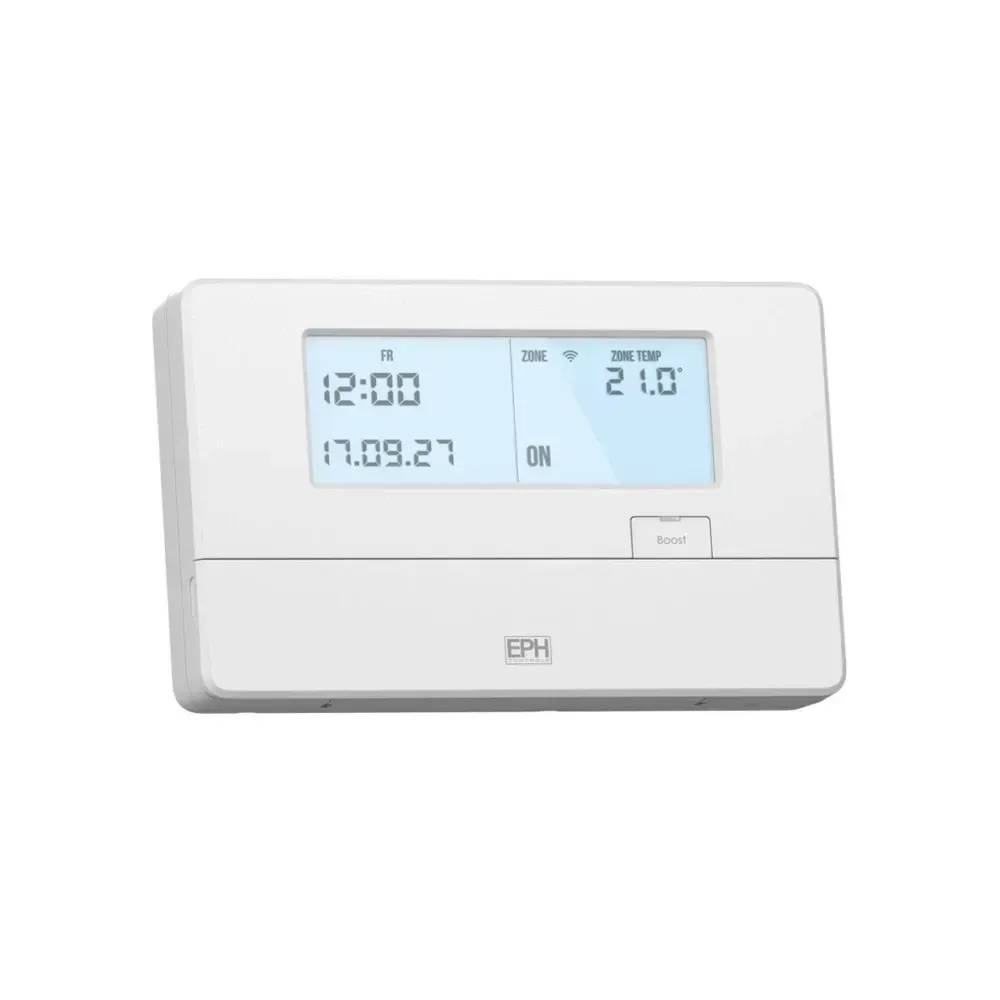

EPH Single Channel RF Digital Timeclock

The EPH Single Channel RF Digital Timeclock is a 1 zone RF timeswitch designed to connect with an RF thermostat. It can be used with the EMBER PS system. Featuring a switch output of SPDT Volt Free, power supply of 230Vac, and dimensions of 161 x 100 x 31 mm, this timeclock offers reliable performance for temperature control applications.

Stock Code: R17RF
Running low
Price 148.25 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Battery

    3VDC Lithium LIR2032 & CR2032

  • Backlight

    White

  • Backplate

    British System Standard

  • Frequency

    868.35 MHz

  • IP Rating

    IP20

  • Dimensions

    161 x 100 x 31 mm

  • Power Supply

    230Vac

  • Switch Output

    SPDT Volt Free

  • Contact Rating

    3(1)A 230Vac

  • Program Memory

    5 Years

  • Software Class

    Class A

  • Pollution Degree

    2 (Resistance to voltage surge 2000V; as per EN60730)

  • Temperature Sensor

    NTC 100K

  • Ambient Temperature

    0 - 50 deg C

  • mpn

    R17RF

Documents

Brand

EPH Controls
