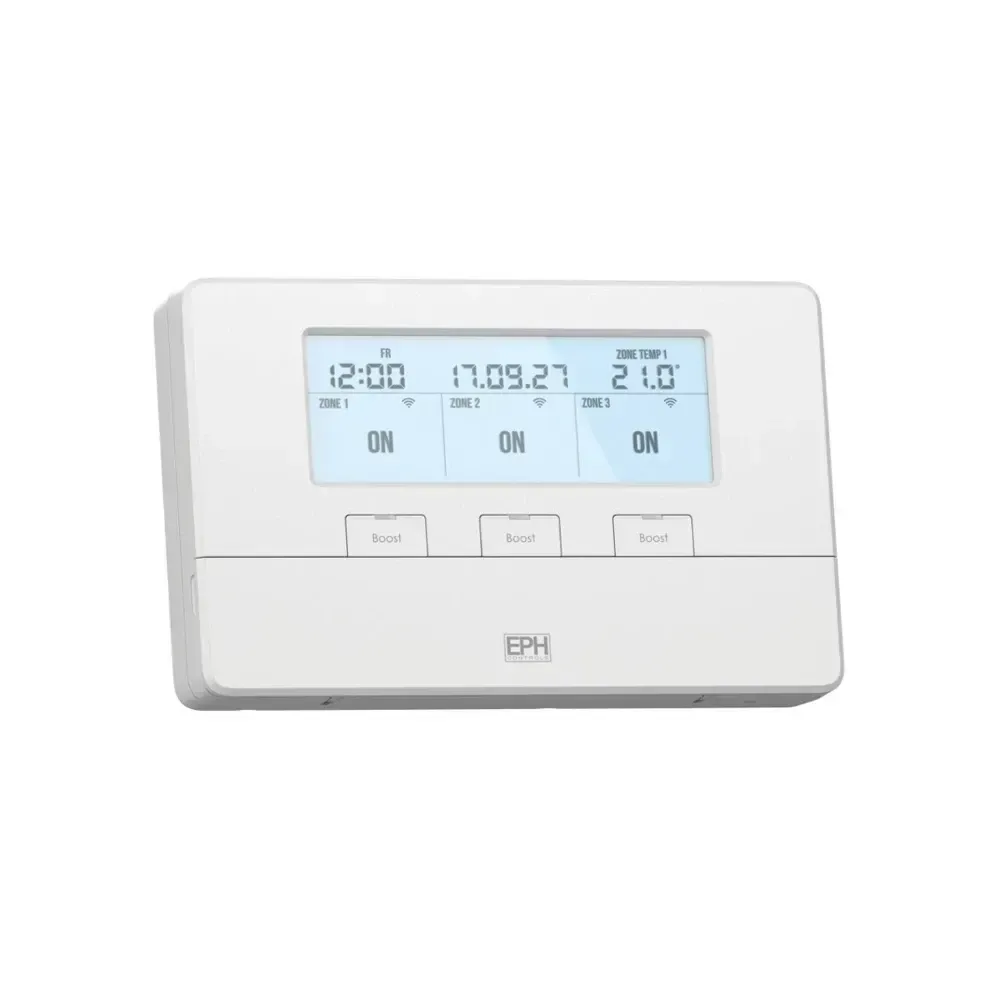

Digital RF Programmer for Home Temperature Control

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

EPH Three Channel RF Digital Programmer

The EPH Three Channel RF Digital Programmer is a versatile device designed to connect with 3 RF thermostats. It features a switch output of 230Vac SPDT, power supply of 230Vac, ambient temperature range of 0 to 50 deg C, compact dimensions of 161 x 100 x 31 mm, and a program memory of 5 years. Equipped with a temperature sensor NTC 100K, white backlight, and IP20 rating, this programmer is suitable for various applications. The device operates on a 3VDC Lithium LIR2032 & CR2032 battery, follows the British System Standard for backplate, and has a pollution degree of 2 with resistance to voltage surge up to 2000V.

Stock Code: R37RF
Running low
Price 254.31 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Battery

    3VDC Lithium LIR2032 & CR2032

  • Backlight

    White

  • Backplate

    British System Standard

  • Frequency

    868.35 MHz

  • IP Rating

    IP20

  • Dimensions

    161 x 100 x 31 mm

  • Power Supply

    230Vac

  • Switch Output

    230Vac SPDT

  • Contact Rating

    3(1)A 230Vac

  • Program Memory

    5 Years

  • Software Class

    Class A

  • Pollution Degree

    2 (Resistance to voltage surge 2000V)

  • Temperature Sensor

    NTC 100K

  • Ambient Temperature

    0 - 50 deg C

  • mpn

    R37RF
