ESP 4 Channel HD DVR 500GB 2MP White Bullet Camera CCTV Kit RHD4KB4W

Photo is representative

ESP 4 Channel HD DVR 500GB 2MP White Bullet Camera CCTV Kit RHD4KB4W

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RHD4KB4W
GTIN
Stock status: 2 in stock

priced individually

More arriving soon

Net price: £225.56

Gross price

£270.67

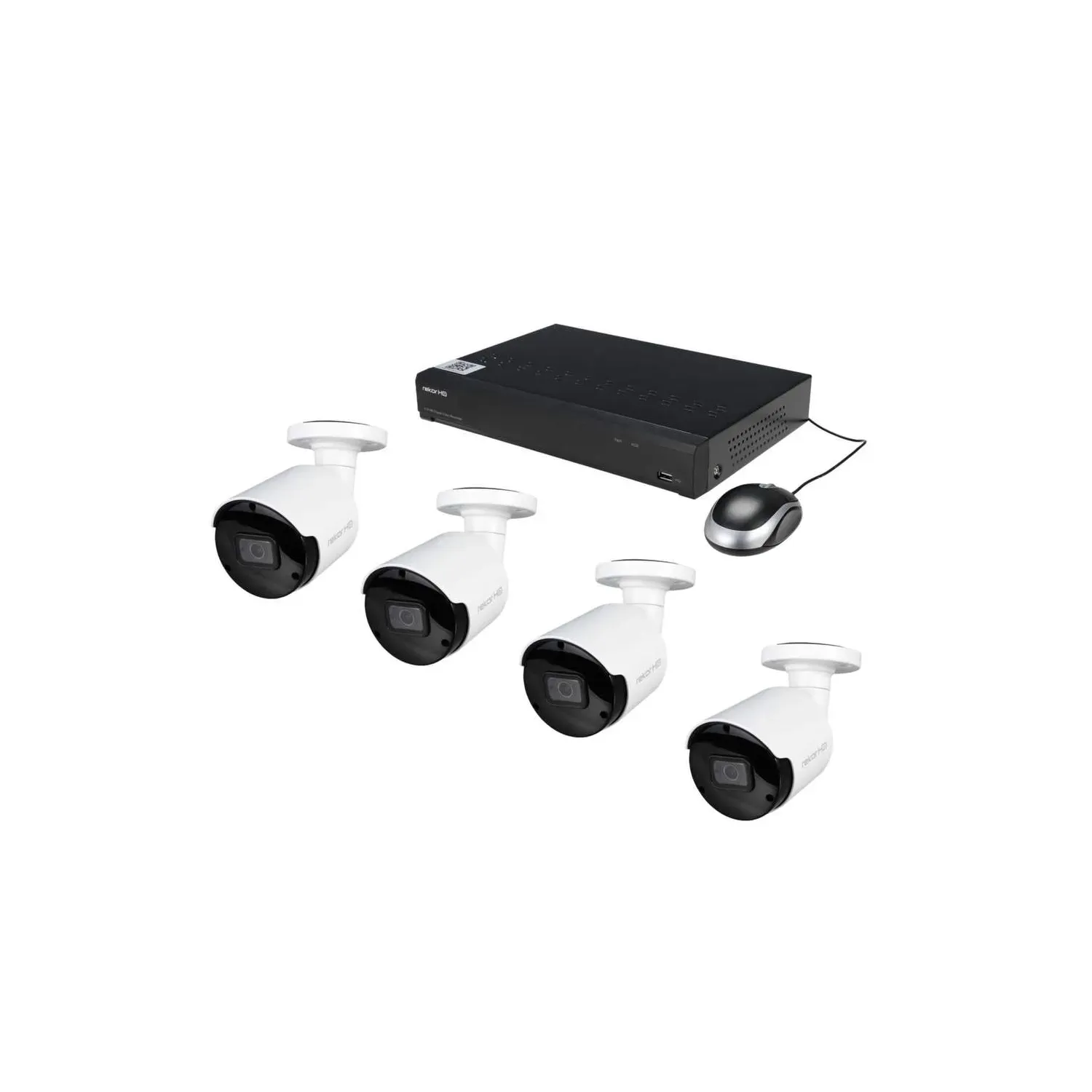

4-channel HD DVR bundled with four 2MP white bullet cameras. Ready to run out of the box — DVR, cameras, 18.3m shotgun cables, mounting hardware and user guides all included.

DVR runs Linux, records 4ch 1080p via H.265 compression. Connects via Ethernet (RJ45), supports CMS on Windows, Mac, Android and iOS. Storage via single SATA — 500GB HDD pre-installed.

Cameras are 3.6mm fixed lens, 30m IR, IP66 rated. Suitable for external use down to -30°C.

  • DVR video input: 4 x BNC, output: HDMI, VGA, BNC
  • Recording: 4ch 1080p @ 15fps, H.265
  • Camera resolution: 1080p @ 25fps, 12.8” sensor
  • IR range: 30m, minimum illumination 0.05 Lux
  • DVR operating voltage: DC 12V/5A, <10W (without HDD)
Specifications

Kit Contents

4ch DVR, 4x white bullet cameras, 4x 18.3m shotgun cables, mounting screws, wall plugs, user guides

DVR Operating System

Linux

Video Input

4 Channel BNC

Audio Input

4 x RCA

Audio Output

1 x RCA

Video Output

1 x HDMI, 1 x VGA, 1 x BNC

Video Compression

H.265

DVR Recording Resolution

4ch 1080p @ 15fps

DVR Playback

4ch 1080p sync playback

Recording Modes

Manual, Motion Detection, Schedule

Internal Storage

1 x SATA 500GB HDD

Network Connection

Ethernet RJ45 10M/100M

Network Protocols

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP

Remote Monitoring

CMS Windows & Mac, Android & iPhone apps

USB Ports

2 x USB 2.0 (1 front, 1 rear)

DVR Operating Voltage

DC 12V/5A

DVR Power Consumption

<10W (without hard disk)

DVR Operating Temperature

0°C to +55°C

DVR Dimensions

300mm x 227mm x 53mm

DVR Body Material

Steel body, ABS faceplate

Camera Resolution

1080p @ 25fps / 1920 x 1080

Camera Sensor

1/2.8"

Camera Lens

3.6mm fixed

IR Range

30m

Ingress Protection

IP66

Minimum Illumination

0.05 Lux

Camera Power

12V DC, max 3.5W

Camera Operating Temperature

-30°C to +50°C

Camera Dimensions

Ø71mm x 151mm

Camera Weight

350g

Camera Material

Metal alloy

Camera Colour

White
