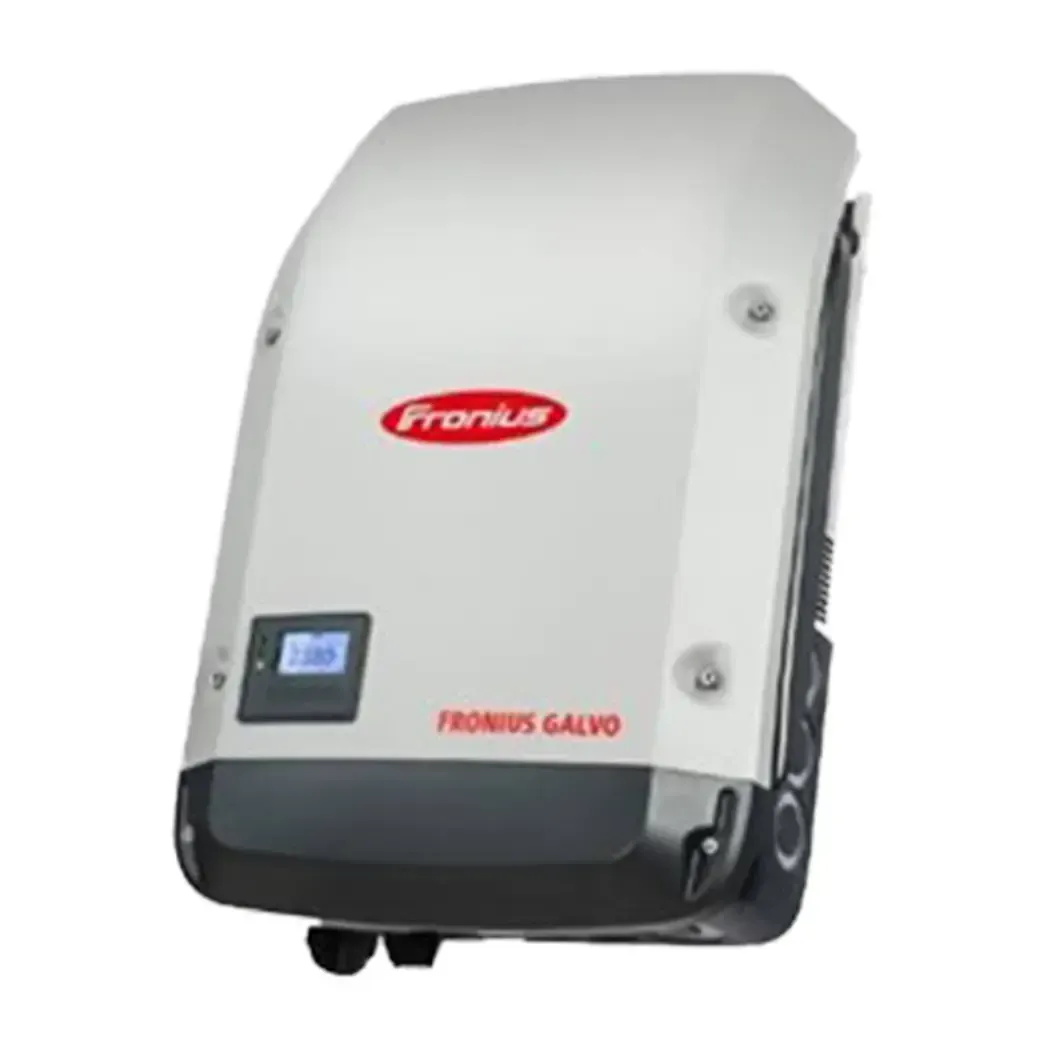

4200013 - Fronius Galvo 2.5kW (2.5-1) Single Phase Solar Inverter 1ph

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

Fronius Galvo 2.5kW (2.5-1) Single Phase Solar Inverter 1ph

The Fronius Galvo 2.5kW Single Phase Solar Inverter is a revolutionary Wi-Fi enabled and lightweight residential inverter with features never seen before in the solar industry. It offers an extra wide voltage window for flexible string design, lifetime monitoring through Fronius Solar.web portal, and easy commissioning via a smartphone app, making it the industry standard for installation service and cost of ownership.

Stock Code 4200013
Out of stock

Product Features

  • Weight

    36.93 lbs.

  • Frequency

    60 Hz

  • Dimensions

    24.7 x 16.9 x 8.1 in.

  • Efficiency

    Max. 96.0 %, CEC 95.0 %

  • Interfaces

    Wi-Fi/Ethernet LAN, 6 inputs or 4 digital inputs/outputs, USB, 2x RS422

  • Grid Connection

    208 / 240 V

  • Recommended PV Power

    2.0 - 3.8 kWp

  • Nominal Input Voltage

    330 V

  • AC Nominal Output Power

    2 500 VA

  • Max. Usable Input Current

    16.1 A

  • Max. Continuous Output Current

    10.4 A

  • Max. Array Short Circuit Current

    20.1 A

  • Max. Output Overcurrent Protection

    20 A
