50A 14x51mm aM Cylindrical Fuse Link 400V 441050

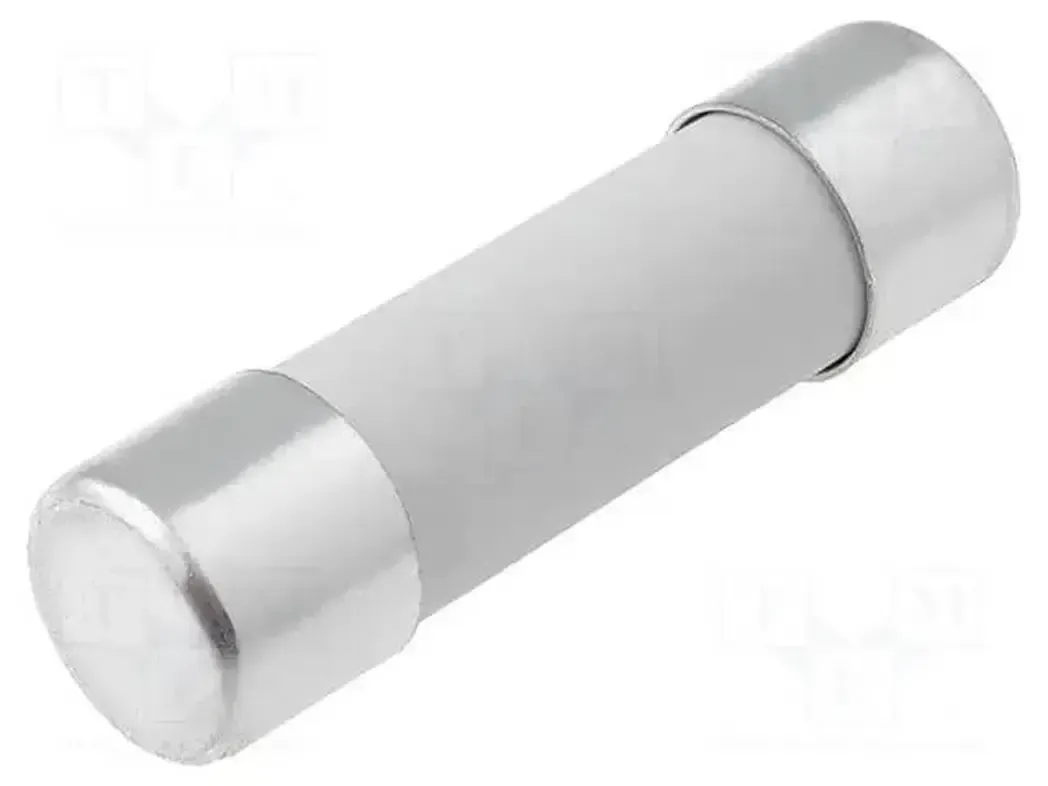

Photo is representative

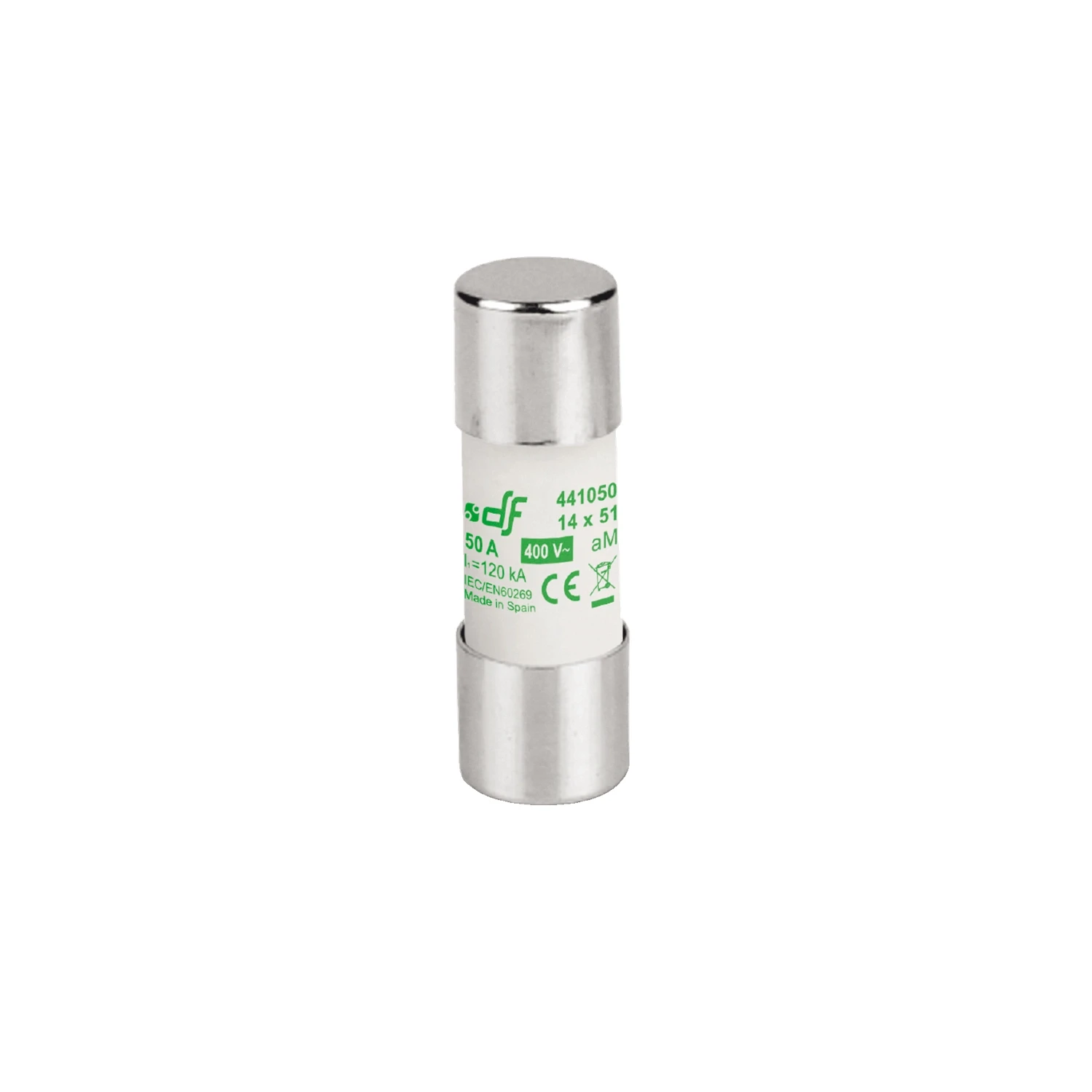

50A 14x51mm aM Cylindrical Fuse Link 400V 441050

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 441050
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £2.26

Gross price

£2.71

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

aM class cylindrical fuse link, 14x51mm, 50A 400V. Suited to motor, transformer, and high inrush current applications where short-circuit protection is required.

Ceramic body with silver plated copper contacts. Low I²t values give good current limiting and switchgear protection.

  • Class: aM
  • Rated current: 50A
  • Rated voltage: 400V +10%
  • Breaking capacity: 120kA @ 400V
  • Standards: IEC/EN 60269-1, IEC/EN 60269-2
Specifications

Rated Current

50A

Rated Voltage

400V +10%

Breaking Capacity

120kA @ 400V

Operating Class

aM

Size

14x51mm

Rated Frequency

42...62Hz

Standards

IEC/EN 60269-1, IEC/EN 60269-2

Material

Ceramic body with silver plated copper contacts

Power Dissipation at 50A

2.90W

Prearcing I²t at 50A

10000 A²S

I²t at 400V (50A)

19626 A²S

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 90°C

Weight

18g

RoHS Compliant

Yes
