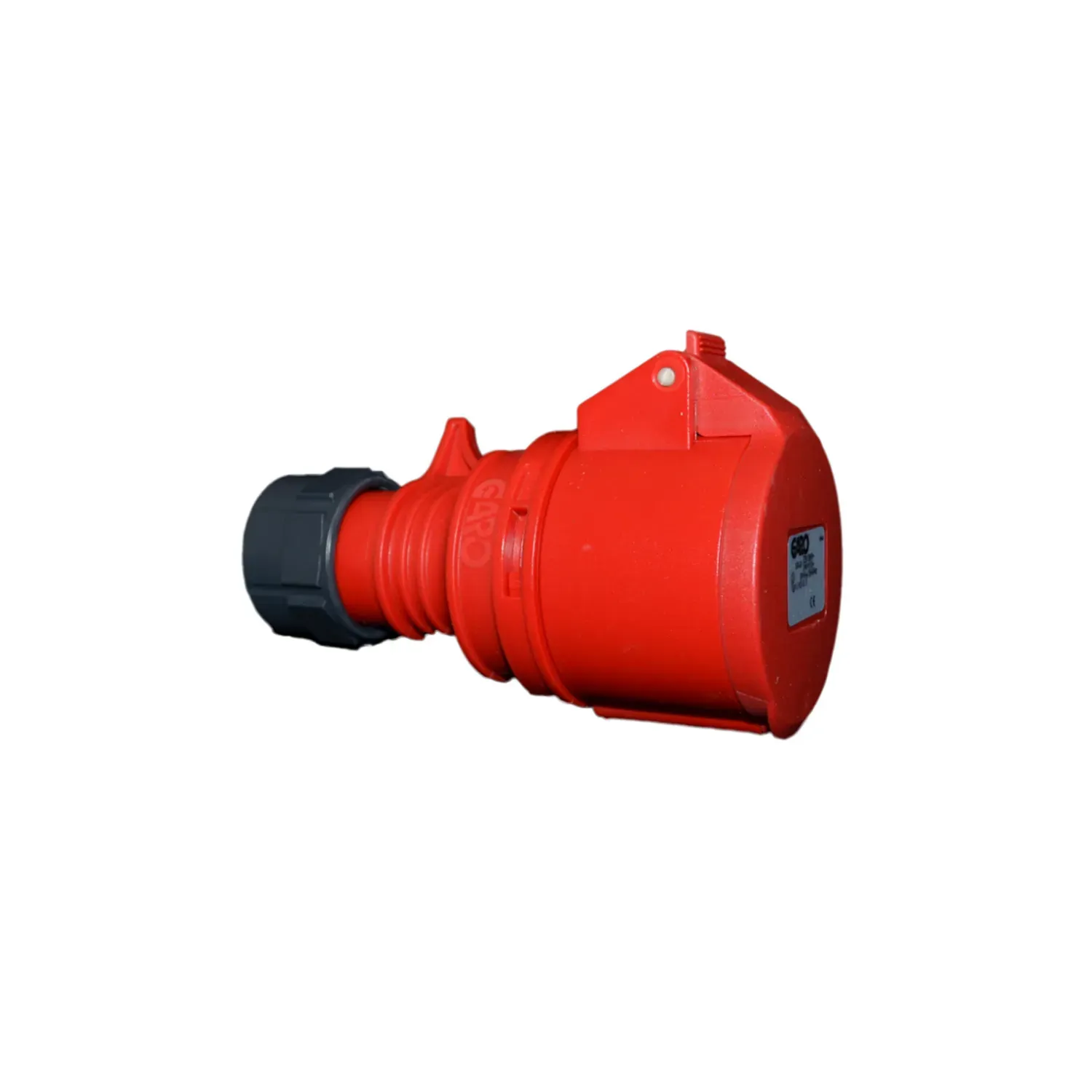

GARO Coupler 16A 5P IP44 380V Industrial

Photo is representative

GARO Coupler 16A 5P IP44 380V Industrial

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code S4166S
GTIN
Stock status: In stock

priced individually

Net price: £7.50

Gross price

£9.00

5-pole industrial coupler for temporary power connections. 16A rated, 230–400V, IP44 protection grade. Pins configured as 4 poles + neutral + earth. Clock position 6 per IEC 60309 standard. Accepts cable 1–2.5 mm² with 100 Ncm contact screw torque.

  • Voltage: 230–400V
  • Current: 16A
  • Poles: 5 (4P + N + E)
  • IP Rating: IP44
  • Cable range: 1–2.5 mm²
  • Frequency: 50/60Hz
Specifications

Current Rating

16A

Poles

5 (4 poles + N + E)

Voltage

230–400V

Frequency

50/60Hz

IP Rating

IP44

Clock Position

6

Connectable Cable Size

1–2.5 mm²

Contact Screw Torque

100 Ncm

Depth (a)

145 mm

Height (b)

89 mm

Thread Size (K)

8–16 mm

Weight

188 g

Standard

IEC 60309-1, IEC 60309-2, EN 60309-1, EN 60309-2
