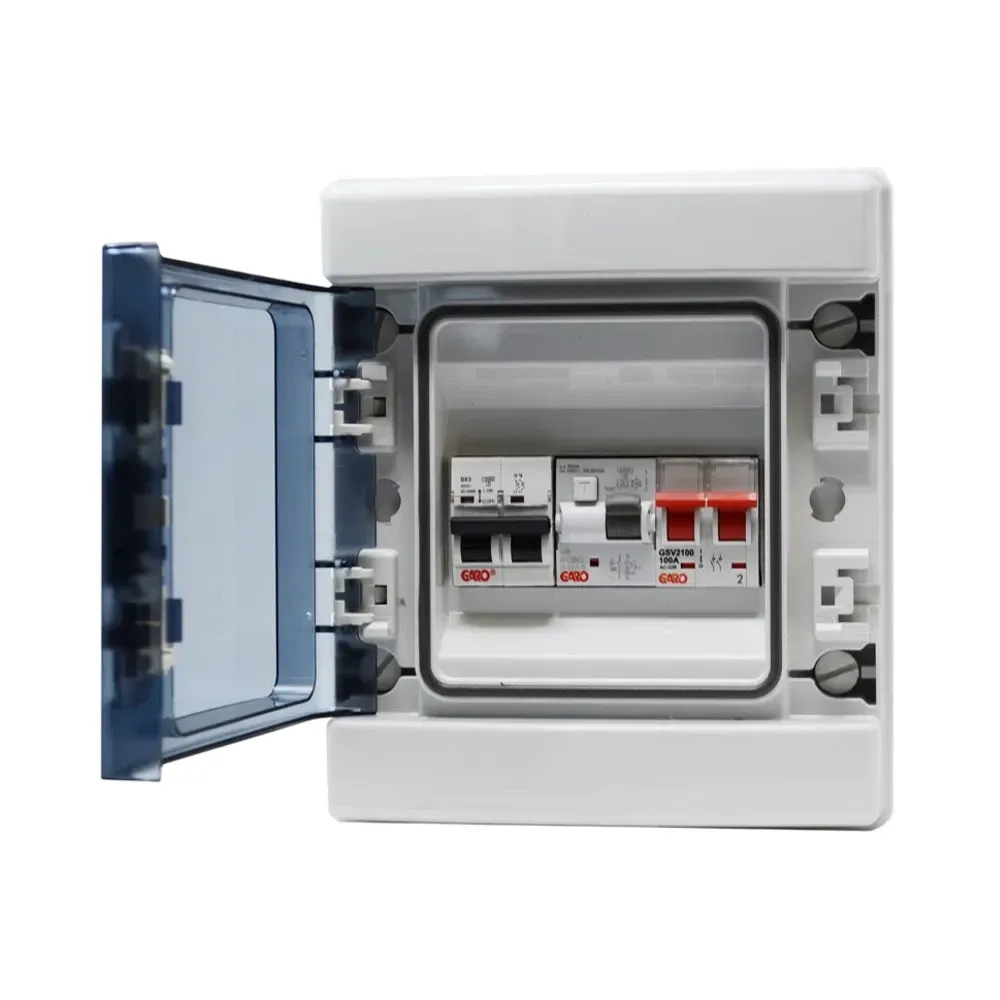

Photo is representative
Garo 6-Way EV Distribution Board | 63A DP MCB | IP65 40A RCBO
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
priced individually
Net price: £83.17
Gross price
£99.80
Garo GC6EV40 6-Way EV Distribution Board featuring 63A DP MCB incomer, 40A RCBO protection and 100A isolator. Purpose-built for electric vehicle charging applications with IP65 weatherproof enclosure.
Technical Configuration - 63A main incomer with 10kA breaking capacity DP MCB - Pre-fitted 40A RCBO for EV charging circuit protection - 100A isolator for safe maintenance and servicing - 6-way configuration with all ways populated - 25mm terminal capacity for high-current connections - 10kA rated conditional short-circuit current
Enclosure Specification - IP65 rated weatherproof ABS and polycarbonate construction - IK08 impact resistance for outdoor installations - Halogen-free materials with HB auto-extinguishing rating - 650°C glow wire resistance and 70°C ball pressure test - Compact dimensions: 231 x 202 x 113mm (H x W x D)
Operating Performance - Rated for 230V AC 50/60Hz supply systems - Operating temperature range: -25°C to +40°C - Suitable for outdoor EV charging point installations - Compliant with EN 61439-3 and LVD 2014/35/EU
