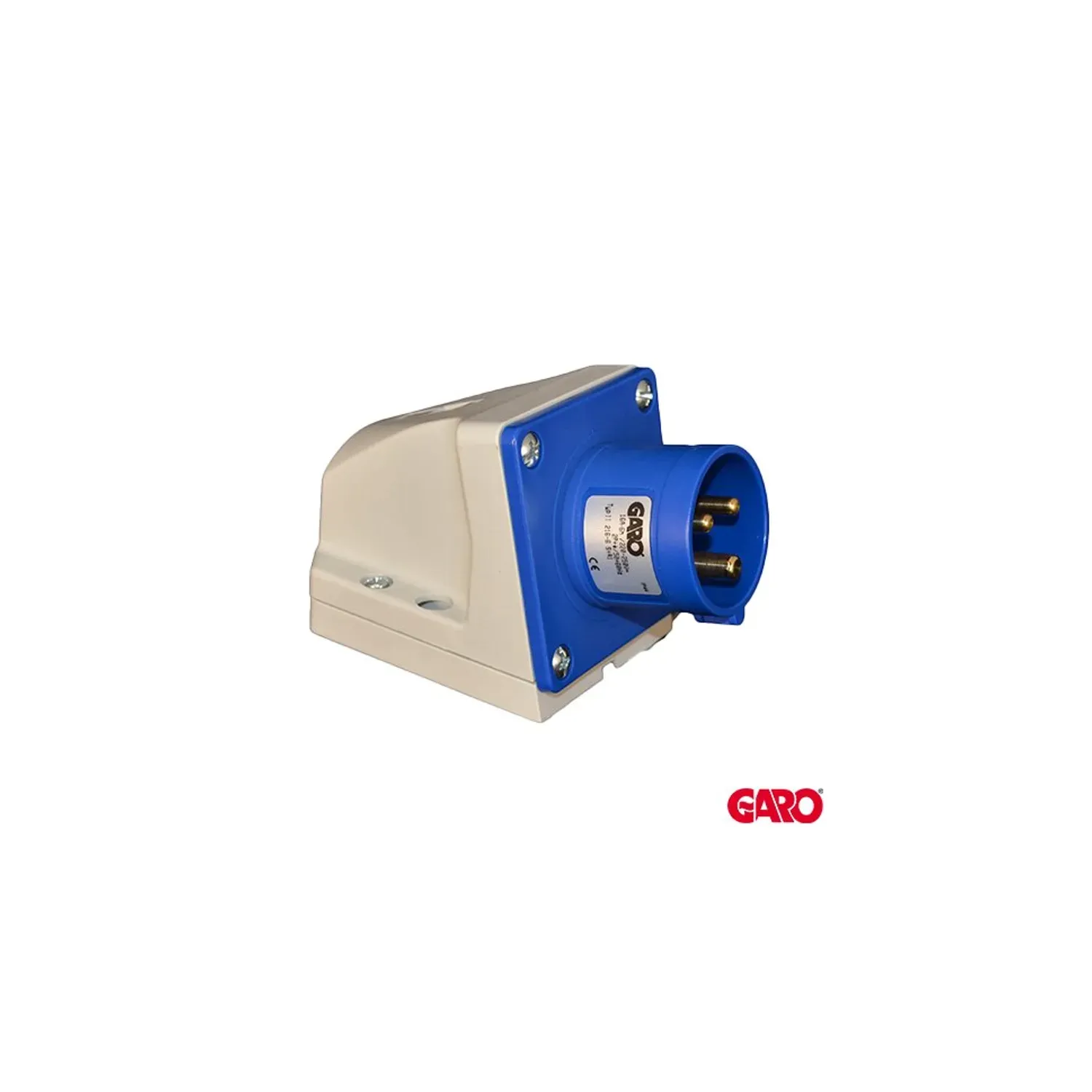

GARO Appliance Inlet 3P+E 16A 220-250V IP44 Wall Mount

Photo is representative

GARO Appliance Inlet 3P+E 16A 220-250V IP44 Wall Mount

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code II2166SRI
GTIN
Stock status: In stock

priced individually

Net price: £8.57

Gross price

£10.28

GARO wall-mount appliance inlet for industrial equipment. 16A, 3-pole + earth configuration, rated 220-250V, 50/60Hz. IP44 ingress protection. Cable connection possible from top and bottom. Connectable cable size 1-2.5 mm² (solid 1-4 mm²). Mounting depth 25 mm. Certified to IEC 60309-1 and EN 60309-2 standards.

  • Rated current: 16A
  • Voltage: 200-250V AC
  • Poles: 3P + E
  • IP rating: IP44
  • Frequency: 50/60Hz
  • Cable entry: Top and bottom
Specifications

Rated Current

16A

Voltage

200-250V AC

Frequency

50/60Hz

Poles

3-pole + earth

IP Rating

IP44

Cable Size

1-2.5 mm² (solid 1-4 mm²)

Contact Torque

100 Ncm

Mounting Type

Wall mount

Width (a)

120 mm

Height (b)

76 mm

Depth

25 mm

Weight

0.205 kg

Clock Position

6

Standards

IEC 60309-1, EN 60309-2, CEE17, VDE 0623, BS 4343
