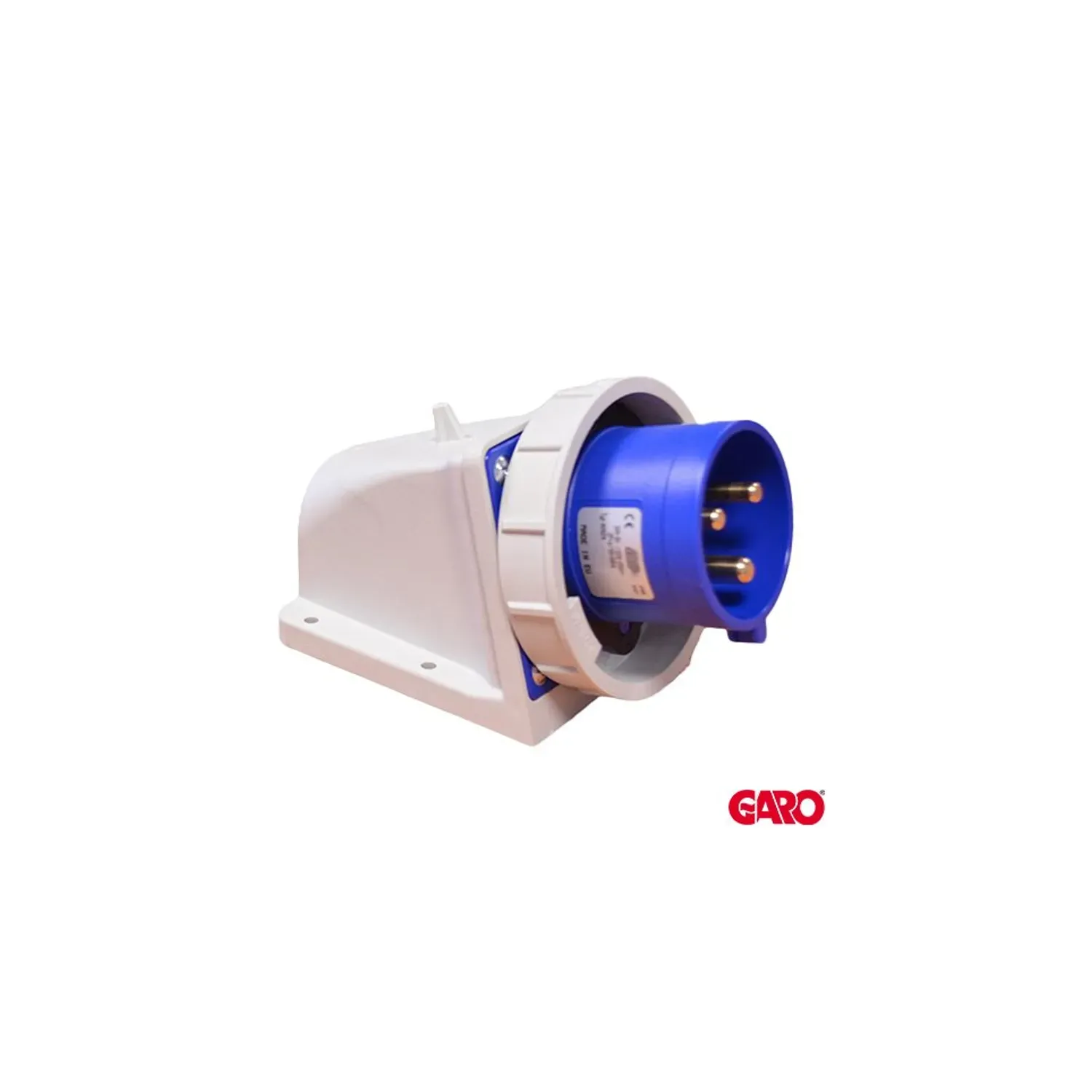

GARO Appliance Inlet 32A 3P 230V IP44 Wall Mount

Photo is representative

GARO Appliance Inlet 32A 3P 230V IP44 Wall Mount

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code II2326SRI
GTIN
Stock status: In stock

priced individually

Net price: £11.65

Gross price

£13.98

Wall-mounted industrial appliance inlet, 32A rated, 3-pole configuration (2P+E). IP44 degree of protection. Accepts cable connection from top or bottom.

  • Current Rating: 32A
  • Voltage: 200–250V, 50/60Hz
  • Cable: 2.5–6mm² flexible; 2.5–10mm² solid
  • IP44 rated
  • IEC 60309-2 certified, clock position 6
Specifications

Current Rating

32A

Poles

3-pole (2P+E)

Operating Voltage

200–250V

Frequency

50/60Hz

IP Rating

IP44

Cable Size Flexible

2.5–6mm²

Cable Size Solid

2.5–10mm²

Mounting Type

Wall mount

Cable Connection

Top or bottom

Clock Position

6

Contact Screw Torque

110 Ncm

Dimensions (a × b × depth)

131 × 82 × 25 mm

Weight

212g

Standard Compliance

IEC 60309-1, IEC 60309-2, EN 50 250
