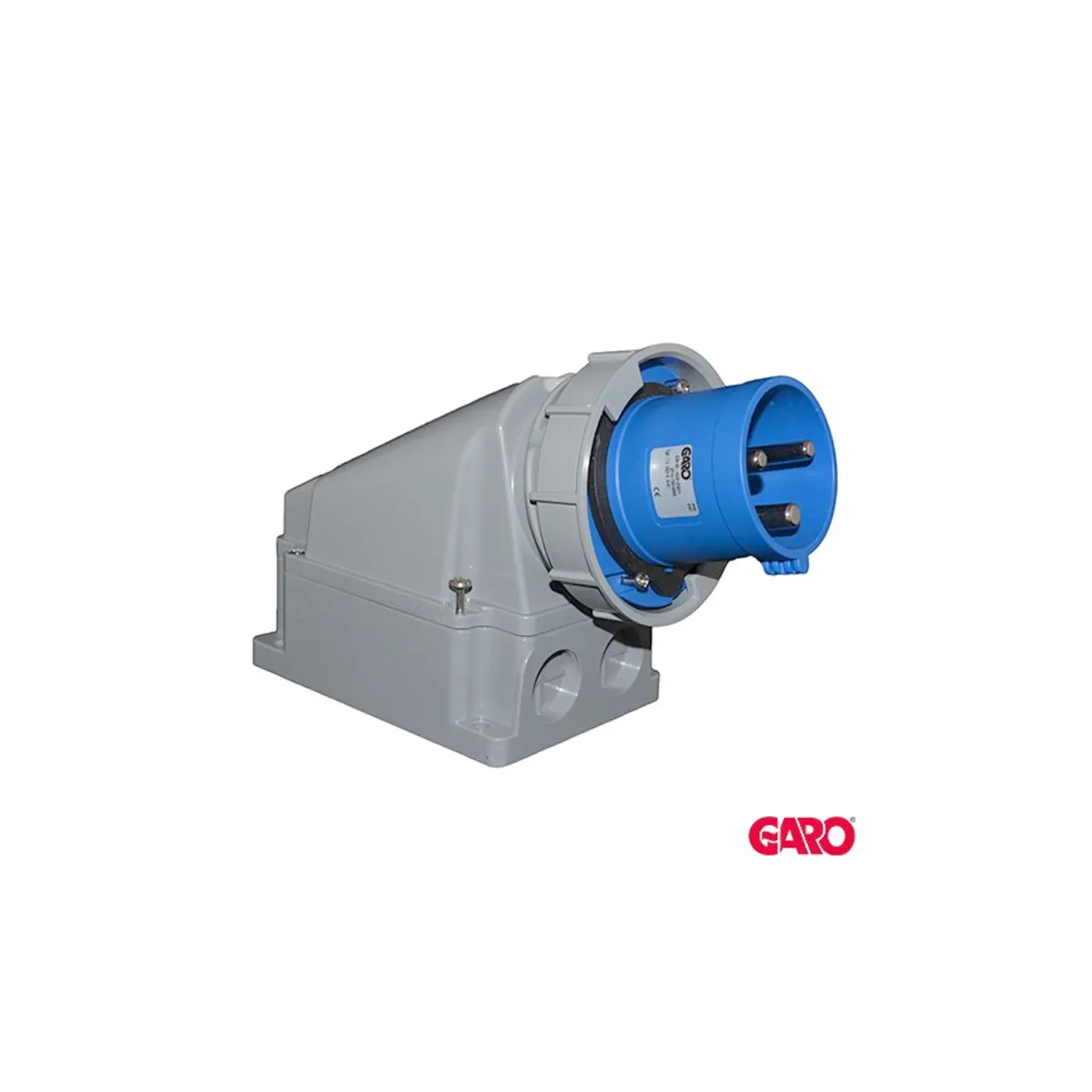

GARO Appliance Inlet 63A 3P+E 230V IP67 Wall Mount

Photo is representative

GARO Appliance Inlet 63A 3P+E 230V IP67 Wall Mount

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code II2636SRI
GTIN
Stock status: Out of stock

priced individually

More arriving soon

Net price: £56.47

Gross price

£67.77

Industrial-grade wall-mount appliance inlet from GARO. 63A rated, 3-pole + earth, designed for 230V supply at 50/60Hz. IP67 protection — suitable for exposed or damp locations.

Cable entry from top or bottom. Accepts flexible cable 6–16 mm² or solid cable 6–25 mm². Contact screws rated 200 Ncm. Fully certified to IEC 60309-1 and IEC 60309-2, with CE compliance under LVD, EMC, and RoHS directives.

Specifications

Product Code

II2636SRI

Current Rating

63A

Poles

3P+E (3-pole + earth)

Voltage

200–250V

Frequency

50/60Hz

IP Rating

IP67

Mounting Type

Wall mount

Cable Entry

Top or bottom

Cable Size (Flexible)

6–16 mm²

Cable Size (Solid)

6–25 mm²

Contact Screw Torque

200 Ncm

Clock Position

6

Standards

IEC 60309-1, IEC 60309-2, EN 60309-1, EN 60309-2, CEE17, VDE 0623, BS 4343, EN 50250
