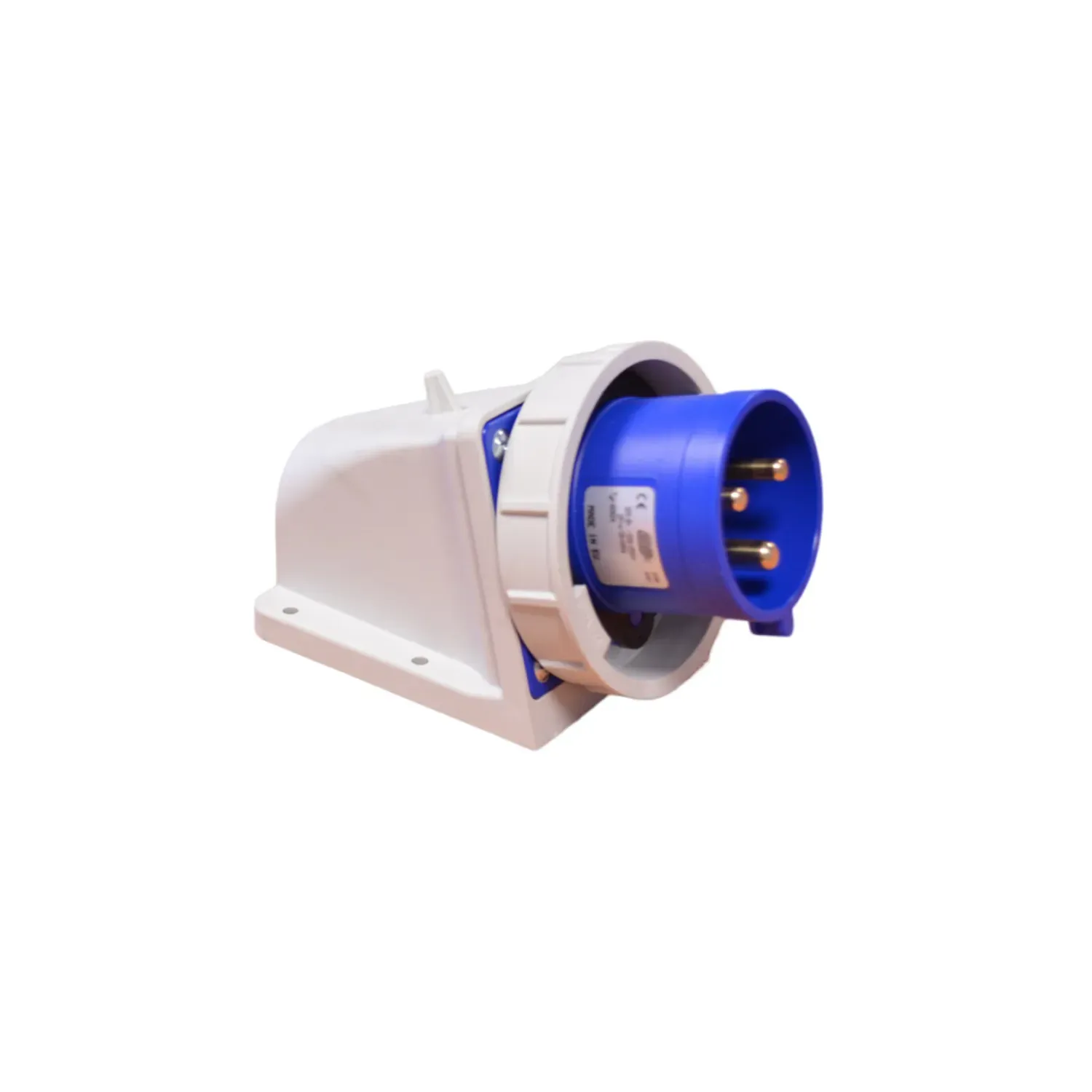

GARO Appliance Inlet 32A 3P 230V IP67 Wall Mount

Photo is representative

GARO Appliance Inlet 32A 3P 230V IP67 Wall Mount

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code IIV2326SRI
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £37.81

Gross price

£45.37

GARO wall inlet for industrial appliances. 32A 3-pole plus earth, 230V, 5060 Hz. IP67 protection rated.

  • 32A, 3-pole + Earth
  • 200–250V operating voltage
  • 5060 Hz
  • IP67 (wall mount)
  • Cable from top or bottom
  • Accepts 2.5–6 mm² flexible; 2.5–10 mm² solid
  • Contact screw torque 110 Ncm
  • IEC 60309-2 certified, clock position 6
Specifications

Current Rating

32A

Poles

3P + E (2-pole + Earth)

Voltage

200–250V

Frequency

50/60 Hz

IP Rating

IP67

Mounting Type

Wall mount

Cable Connection

Top or bottom entry

Flexible Cable Size

2.5–6 mm²

Solid Cable Size

2.5–10 mm²

Contact Screw Torque

110 Ncm

Clock Position

6

Certification

IEC 60309-1, IEC 60309-2, EN 60309-1, EN 60309-2
