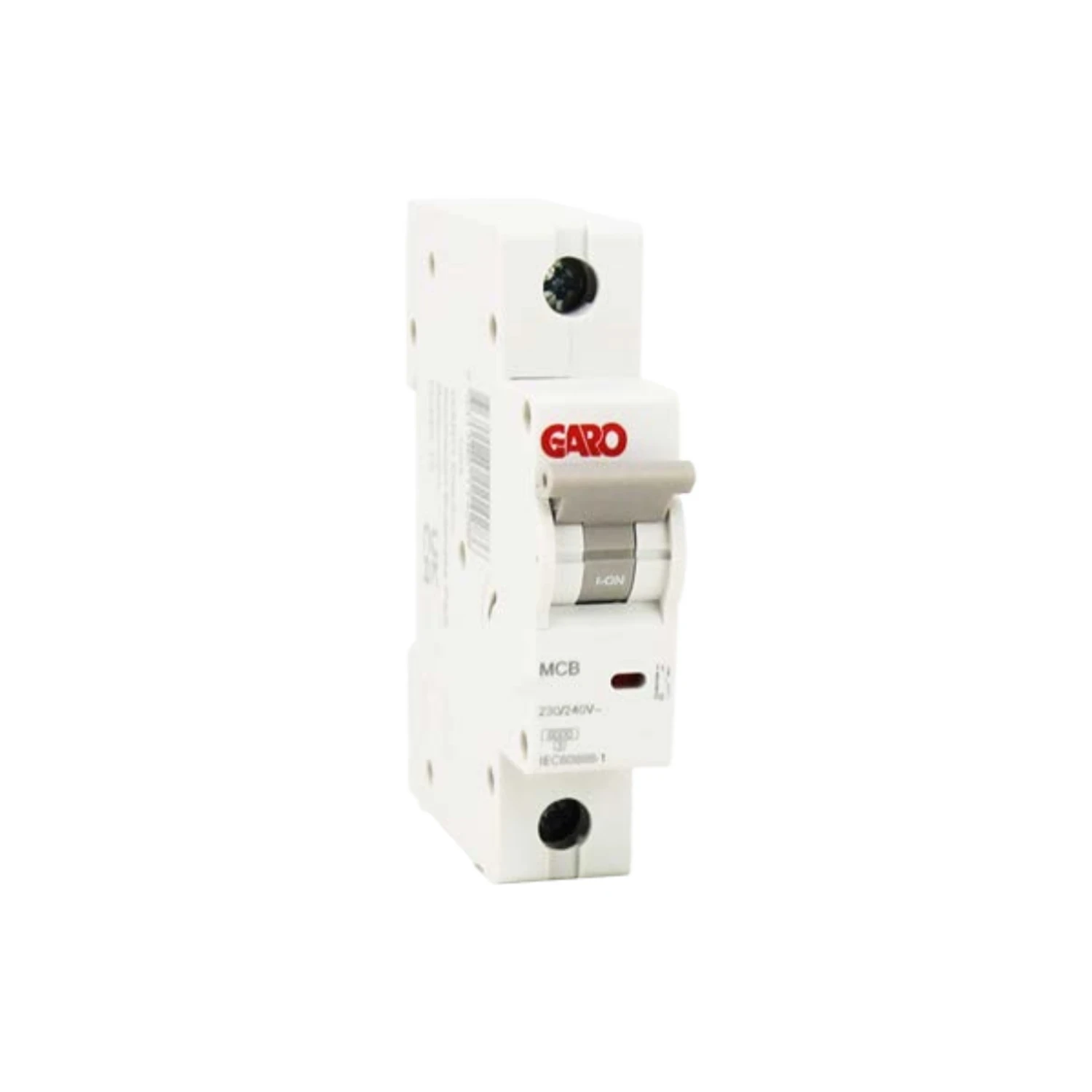

Garo MCB 10A Type C 6kA 1P

Photo is representative

Garo MCB 10A Type C 6kA 1P

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MCBGRC110
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.70

Gross price

£4.44

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-pole MCB from Garo. Rated 10A with a Type C tripping characteristic — suited to general commercial and resistive loads where moderate inrush is expected.

Mounts on DIN rail to EN 60715. One module wide at 18mm.

  • Rated current: 10A, Type C curve
  • Breaking capacity: 6kA
  • Voltage: 230/400V AC, 50/60Hz
  • Terminals: 1–25mm², max torque 2.5Nm
  • IP20, Overvoltage Category III
Specifications

Rated Current

10A

Tripping Characteristic

Type C

Poles

1P

Rated Voltage

230/400V AC

Frequency

50/60 Hz

Breaking Capacity (Icn)

6kA

IP Rating

IP20

Overvoltage Category

III

Terminal Capacity

1–25mm²

Terminal Torque

2.5Nm max

Module Width

18mm

Height

82mm

Depth

75mm

Net Weight

0.33kg

Ambient Temperature

-25 to +55°C

Storage Temperature

-35 to +55°C

Electrical Endurance

10,000 operating cycles

Mechanical Endurance

20,000 operating cycles

DIN Rail Mounting

EN 60715

Standards

EN 60898, IEC 60898
