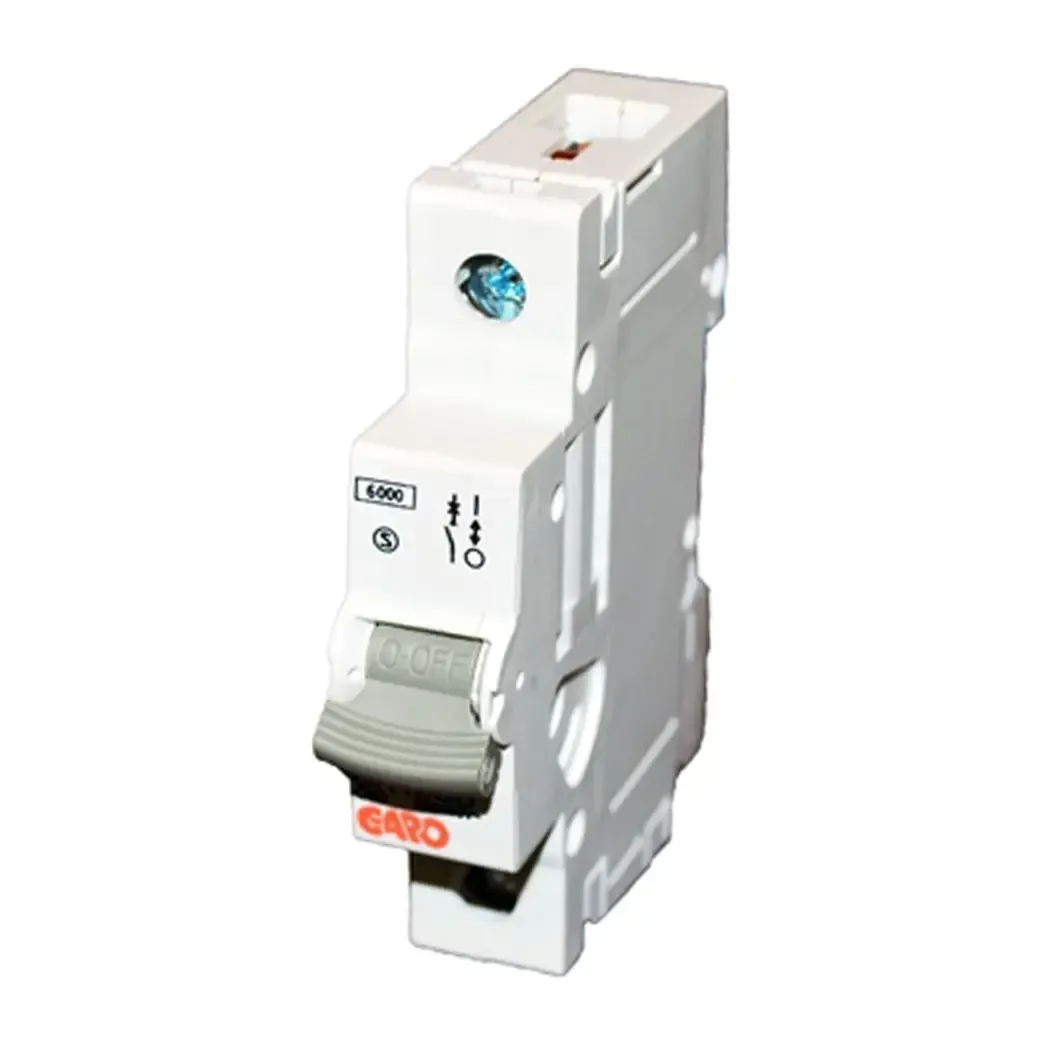

Garo MCB 1P 16A B Curve Mcbgrb116

The Garo MCB 1P 16A B Curve Mcbgrb116 is a miniature circuit-breaker with a rated current of 16A, rated voltage of 230/400V AC 60V DC, and a rated short-circuit capacity of 6 kA. It is designed to protect the system against short-circuit currents up to 6 kA and is compatible with all Garo busbars for miniature circuit-breakers.

Stock Code: MCBGRB116
In stock
Price 5.40 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    MCBGRB116

  • Depth

    75mm

  • Height

    90mm

  • Mounting

    On the Rail EN 60715

  • Frequency

    50/60 Hz

  • Standards

    EN 60898, IEC 6089

  • Terminals

    1-25mm2 max 2.5Nm

  • Net Weight

    0.33

  • Back-Up Fuse

    100A gG

  • Rated Current

    16A

  • Rated Voltage

    230/400 V AC 60V DC

  • Built-In Width

    18mm (Per Pole)

  • Shock Resistance

    30g.min. 2 shocks t=13mins

  • Sealing Possibility

    Yes

  • Degree of Protection

    IP20

  • Overvoltage Category

    III

  • Ambient Temperature (C)

    -25.....+55

  • Storage Temperature (C)

    -35.....+55

  • Tripping Characteristic

    B

  • Rated Short-Circuit Capacity

    6 kA

  • Electrical Endurance (Op. C.)

    10,000

  • Mechanical Endurance (Op. C.)

    20,000
