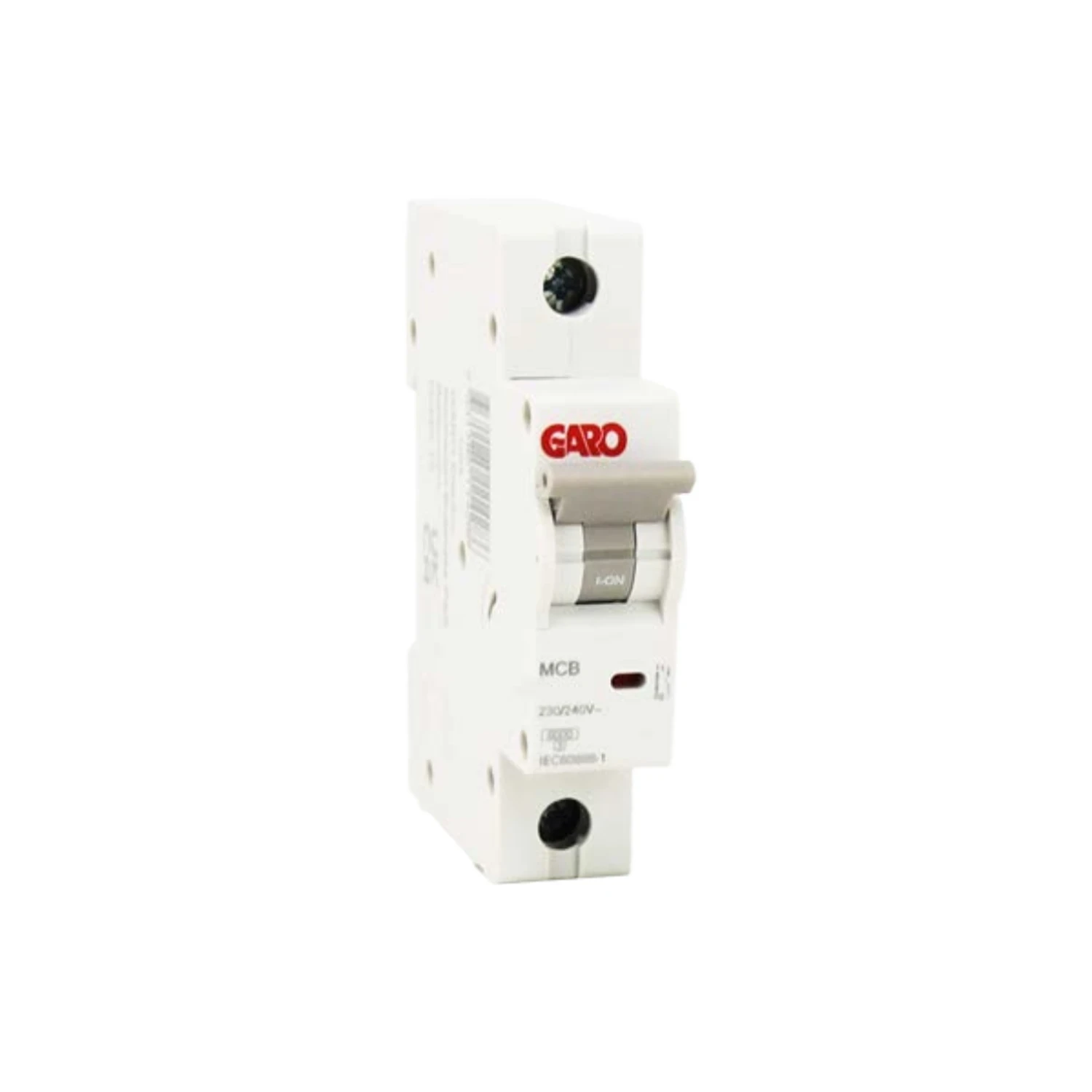

Garo MCB 16A Type C 6kA 1P

Photo is representative

Garo MCB 16A Type C 6kA 1P

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MCBGRC116
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.70

Gross price

£4.44

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

SP MCB from Garo rated 16A with a Type C tripping characteristic and 6kA short-circuit capacity. Fits standard EN 60715 DIN rail at 18mm wide per pole.

Suited to commercial and domestic circuits where Type C protection is required.

  • 16A In, Type C curve, 6kA Icn
  • Terminals: 1–25mm², max torque 2.5Nm
  • Ambient operating temp: -25°C to +55°C
  • IP20, Overvoltage Category III
  • Sealing facility included
Specifications

Rated Current

16A

Rated Voltage

230/400V AC

Frequency

50/60 Hz

Breaking Capacity (Icn)

6kA

Tripping Characteristic

Type C

Poles

1P

IP Rating

IP20

Overvoltage Category

III

Terminal Capacity

1–25mm², max 2.5Nm

Module Width

18mm

Height

82mm

Depth

75mm

Ambient Temperature

-25°C to +55°C

Mounting

DIN rail EN 60715

Standards

EN 60898, IEC 60898
