MCBGRB120 - Garo MCB 1P 20A B Curve MCBGRB120

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

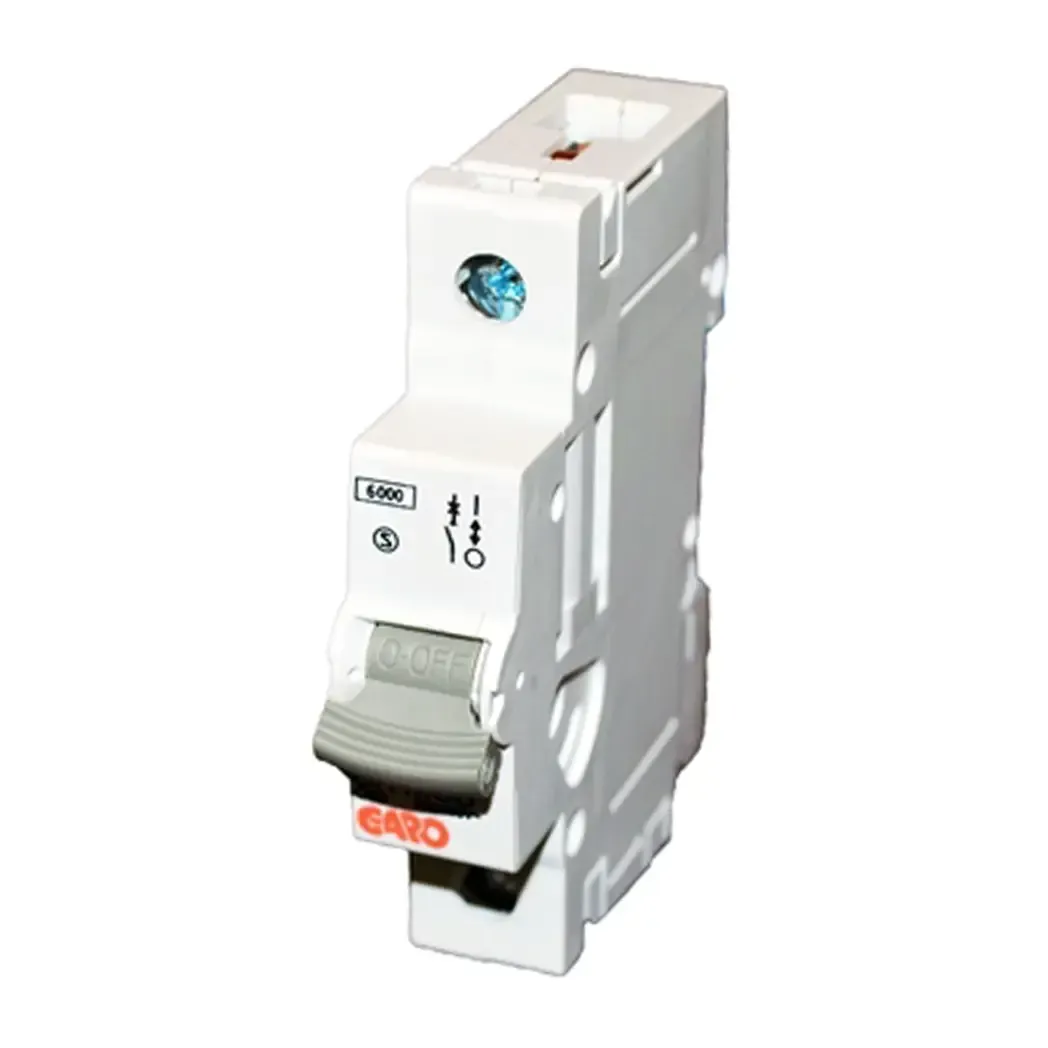

Garo MCB 1P 20A B Curve MCBGRB120

This Garo MCB 1P 20A B Curve MCBGRB120 is a miniature circuit-breaker with a rated current of 20A and rated voltage of 230⁄400 V AC 60V DC. It offers a rated short-circuit capacity of 6 kA and is designed to protect the system against short-circuit current. Equipped with a mounting bracket for easy installation on GARO busbars.

Stock Code MCBGRB120
In stock
Price 5.40 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Depth

    75mm

  • Height

    90mm

  • Frequency

    50/60 Hz

  • Terminals

    1-25mm2 max 2.5Nm

  • Net Weight

    0.33

  • Backup Fuse

    100A gG

  • Rated Current

    20A

  • Rated Voltage

    230/400 V AC 60V DC

  • Built-In Width

    18mm (per pole)

  • Shock Standards

    EN 60898 IEC 60898

  • Shock Resistance

    30g.min. 2 shocks t=13mins

  • Mounting Standards

    EN 60715

  • Ambient Temperature

    -25.....+55

  • Sealing Possibility

    Yes

  • Storage Temperature

    -35.....+55

  • Degree of Protection

    IP20

  • Electrical Endurance

    10,000 op. c.

  • Mechanical Endurance

    20,000 op. c.

  • Overvoltage Category

    III

  • Tripping Characteristic

    B
