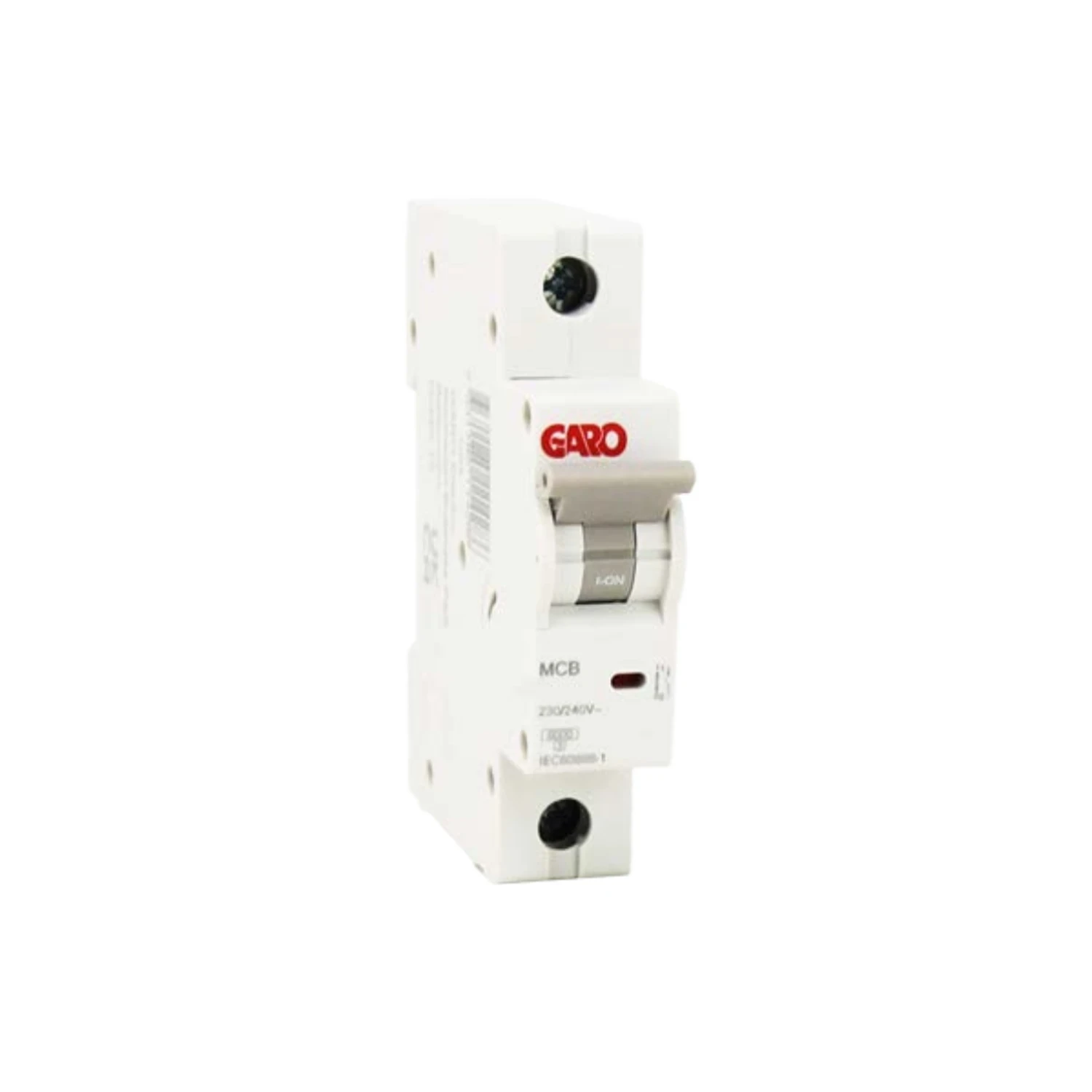

Garo MCB 20A Type C 6kA 1P

Photo is representative

Garo MCB 20A Type C 6kA 1P

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MCBGRC120
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.70

Gross price

£4.44

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

SP MCB from Garo rated at 20A with a Type C tripping characteristic and 6kA Icn. Suits general commercial and industrial AC distribution where Type C is required for loads with higher inrush.

DIN rail mounted to EN 60715, 18mm wide — standard 1-module footprint.

  • Rated current: 20A, Type C
  • Breaking capacity Icn: 6kA
  • Voltage: 230/400V AC, 50/60Hz
  • Terminal: 1–25mm², max 2.5Nm torque
  • Compliant: EN 60898, IEC 60898
Specifications

Rated Current

20A

Tripping Characteristic

Type C

Rated Short-Circuit Capacity (Icn)

6kA

Rated Voltage

230/400V AC

Frequency

50/60Hz

Poles

1P

IP Rating

IP20

Mounting

DIN rail EN 60715

Module Width

18mm

Height

82mm

Depth

75mm

Terminal Size

1–25mm², max 2.5Nm

Ambient Temperature

-25 to +55°C

Standards

EN 60898, IEC 60898

Documents

datasheet Garo Electrical Products MCBGRC120 Datasheet
