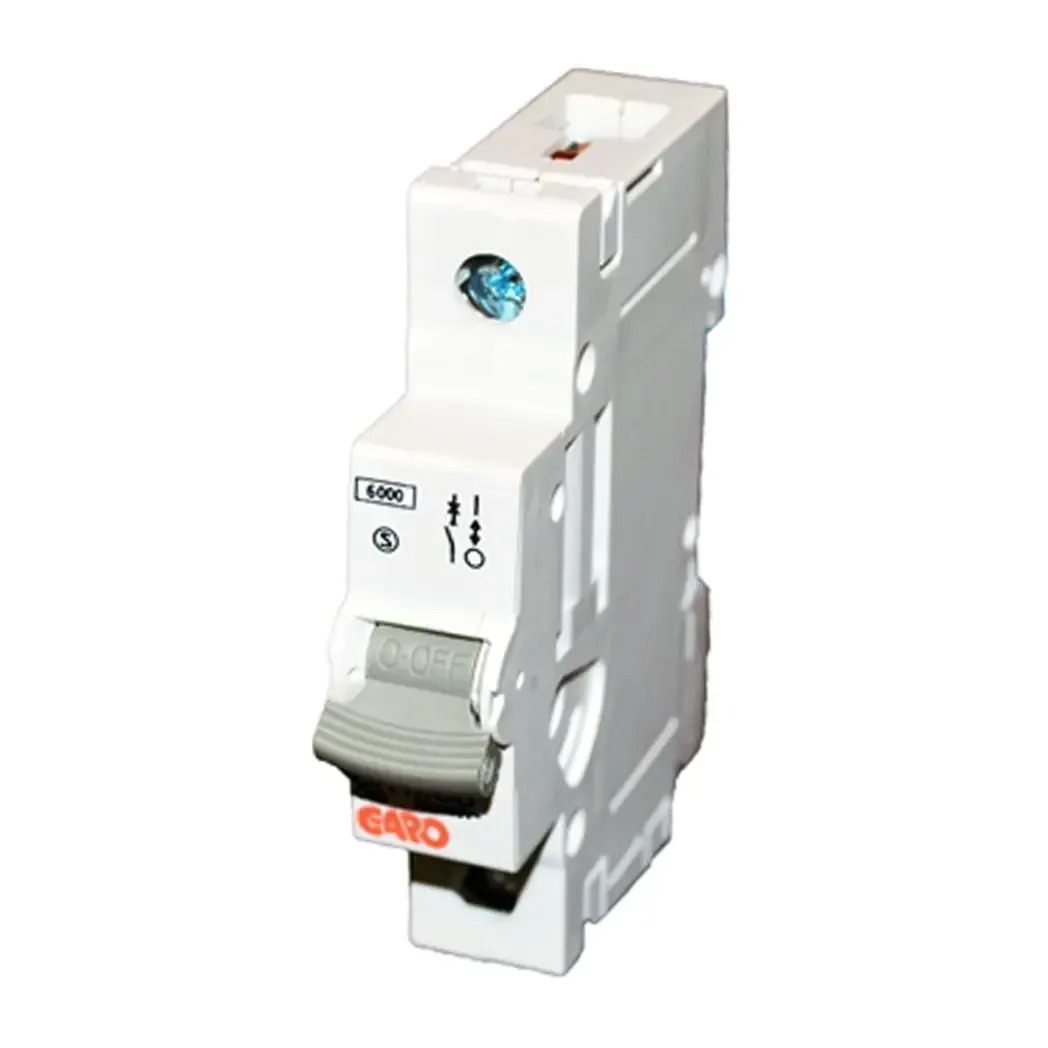

Garo MCB 1P 25A B Curve MCBGRB125

The Garo MCB 1P 25A B Curve MCBGRB125 is a reliable miniature circuit-breaker with a rated current of 25A and a rated voltage of 230⁄400 V AC 60V DC. It has a frequency of 50⁄60 Hz and a rated short-circuit capacity of 6 kA. Equipped with a mounting bracket for easy installation, this MCB offers shock resistance, a back-up fuse of 100A gG, and a degree of protection of IP20. Ideal for protecting systems against short-circuit currents up to 6kA.

Stock Code: MCBGRB125
In stock
Price 5.40 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Depth

    75mm

  • Height

    90mm

  • Frequency

    50/60 Hz

  • Standards

    EN 60898 IEC 60898

  • Terminals

    1-25mm2 max 2.5Nm

  • Net Weight

    0.33

  • Back-up Fuse

    100A gG

  • Rated Current

    25A

  • Rated Voltage

    230/400 V AC 60V DC

  • Built-in Width

    18mm (per pole)

  • Shock Resistance

    30g.min. 2 shocks t=13mins

  • Sealing Possibility

    YES

  • Degree of Protection

    IP20

  • Mounting on the Rail

    EN 60715

  • Overvoltage Category

    III

  • Ambient Temperature (C)

    -25.....+55

  • Storage Temperature (C)

    -35.....+55

  • Tripping Characteristic

    B

  • Rated Short-Circuit Capacity

    6 kA

  • Electrical Endurance (op. c.)

    10,000

  • Mechanical Endurance (op. c.)

    20,000
