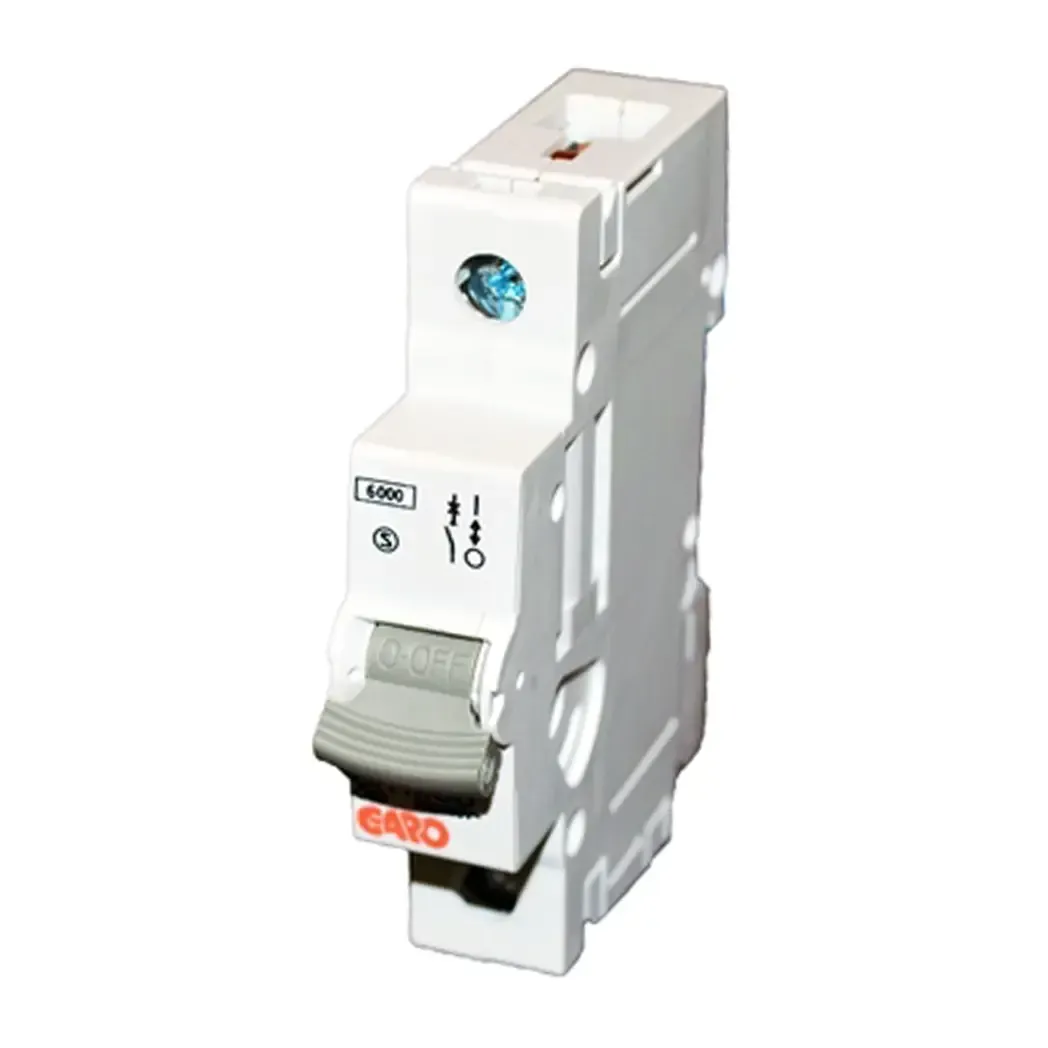

Garo MCB 1P 32A B Curve MCBGRB132
The Garo MCB 1P 32A B Curve MCBGRB132 is a miniature circuit-breaker with a 6kA short-circuit capacity. It can protect the system against short-circuit currents up to 6kA and is equipped with a mounting bracket for easy installation. Compatible with all GARO busbars for miniature circuit-breakers.
Stock Code:
MCBGRB132
Online:
4 available
Price 5.40 £
incl. VAT, 20%
priced individually
Product Features
SKU | MCBGRB132 |
---|---|
Depth | 75mm |
Height | 90mm |
Mounting | On the rail EN 60715 |
Frequency | 50/60 Hz |
Standards | EN 60898, IEC 60898 |
Terminals | 1-25mm2 max 2.5Nm |
Net Weight | 0.33 |
Back-up Fuse | 100A gG |
Rated Voltage | 230/400 V AC 60V DC |
Built-in Width | 18mm (per pole) |
Shock Resistance | 30g.min. 2 shocks t=13mins |
Ambient Temperature | -25...+55 Celsius |
Sealing Possibility | YES |
Storage Temperature | -35...+55 Celsius |
Degree of Protection | IP20 |
Electrical Endurance | 10,000 |
Mechanical Endurance | 20,000 |
Overvoltage Category | III |
Tripping Characteristic | B |
